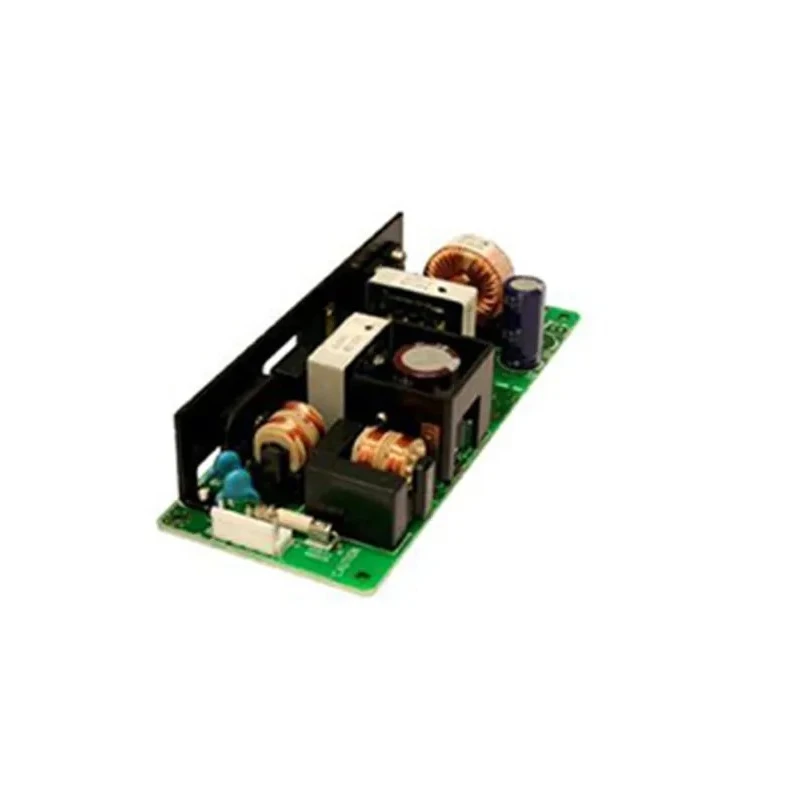

TDK-Lambda Switching Power Supply 12V DC, 102W, Chassis Mount, 8.5A, ZWS100BAF-12/A

TDK-Lambda ZWS100BAF-12/A Switching Power Supply is engineered for reliable operation in industrial, automation, and measurement environments. Featuring a robust chassis mount design, this unit delivers a regulated 12V DC output with a maximum power rating of 102W, supporting up to 8.5A load current. Its wide AC input range accommodates voltages from 85V AC to 265V AC, as well as DC input up to 370V, ensuring compatibility with various global power standards.

The ZWS100BAF-12/A incorporates active power factor correction and achieves 88% efficiency, minimizing energy losses and running cool even under high demand. The compact form factor, measuring 185mm in length, 45mm in depth, and 45mm in width, allows for seamless integration into limited-space enclosures or control cabinets. Its lightweight construction, at just 290g, further facilitates installation.

This power supply is convection cooled and designed for continuous operation in ambient temperatures ranging from -10°C up to 70°C. Full load operation is possible up to 50°C, making it ideal for industrial environments subjected to variable temperatures. Built-in protections include overcurrent and overvoltage safeguarding to enhance reliability and longevity.

TDK-Lambda ensures compliance with international safety and electromagnetic compatibility standards such as CE, EN 55011, EN 55022-B, EN 61000-4-11 and FCC Class B, as well as VCCI-B. Additional certifications include IEC, UL, and CSA approvals, asserting its suitability for professional and regulated applications.

Industrial applications include factory automation, test and measurement setups, LED signage, and light industrial equipment. The ZWS-BAF series is valued for dependable performance in demanding sectors requiring stable DC power under fluctuating supply conditions.

Provides a stable 12V DC output at 102W maximum power. Supports a wide AC input range from 85V AC up to 265V AC, and DC input up to 370V. Chassis mount design ensures easy installation in control panels and equipment cabinets.

Rated output current of 8.5A suitable for demanding loads. High efficiency up to 88% reduces energy consumption and heat generation. Operates reliably within a wide temperature range from -10°C to 70°C. Compact dimensions of 185mm x 45mm x 45mm save space in installations.

Lightweight unit with only 0.29 kg weight, facilitating handling and integration. Built-in active power factor correction and overcurrent/overvoltage protections. Meets CE, EN, FCC Class B, and VCCI-B standards for safety and EMC compliance.
