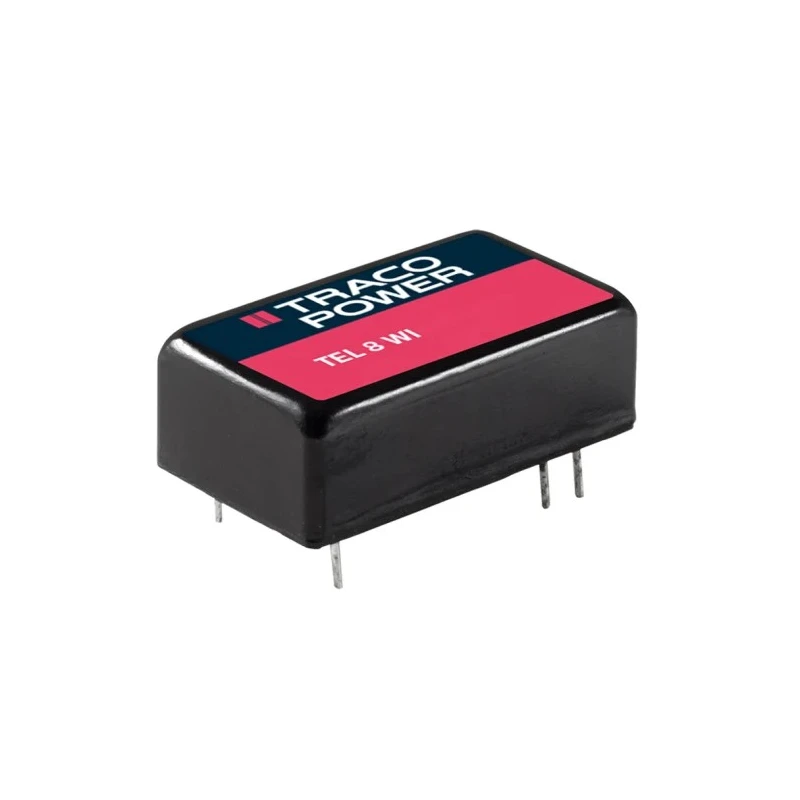

TRACOPOWER DC/DC Converter 15V 535mA 36V Input DIP Through Hole 8W -40°C to 80°C TEL 8-2413WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 85% |
| Length | 24.1mm |
| Model | TEL 8-2413WI |
| Depth | 8.5mm |
| Gross Weight | 6.1g |
| Width | 14mm |
| Mount Type | Through Hole |
| Series | TEL 8WI |
| Maximum Operating Temperature | 80°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2360000h |
| Number of outputs | 1 |
| Ripple and Noise | 55mV Pk-Pk |
| Maximum Output Power | 8W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | CSA, RoHS, UL, REACH |
| Minimum Input Voltage | 9V |
| Number of Pins | 5 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 535mA |
| Isolation Voltage | 1.5kV dc |
| Better World Claim | Concentrated or Compact Solution |
| Input Ratio | 4:1 |
| Input Ratio4 | 1 |
| Wide 4 | 1 input range |
Key Features
- Ultra-compact DC/DC converter for space-constrained industrial environments.
- Provides regulated 15V DC output with a maximum current of 535mA.
- Wide input voltage range from 9V to 36V DC for versatile use.
- Highly efficient operation with maximum output power of 8W.
- Robust isolation voltage of 1.5kV DC enhances electrical safety.
- EN 55022 Class A input filter ensures conducted emission compliance.
- Operating temperature range from -40°C to 80°C suits harsh conditions.
- Built-in short circuit and overload protection for enhanced reliability.
Product Description
TRACOPOWER TEL 8-2413WI is a high-performance DC/DC converter engineered for ultra-compact applications where power efficiency and reliability are critical. Featuring a DIP-16 metal package and through-hole mounting, this product is well-suited for industrial, instrumentation, IT, and commercial electronics environments requiring robust power conversion in limited space.
The converter offers a 15V DC regulated output with a maximum current of 535mA and supports a 4:1 wide input voltage range from 9V to 36V DC, maximizing flexibility across various installation scenarios. With its output power of 8W, the TEL 8-2413WI provides efficient energy delivery while maintaining an efficiency of up to 85%, supporting full-load operation to +70°C and up to +80°C with reduced load.
The isolation voltage of 1.5kV DC and EN 55022 Class A filter ensure electrical safety and compliance with industry standards, making it suitable for mission-critical deployments. This converter is equipped with built-in protection features, including overload and short circuit protection, further enhancing operational safety and reliability.
The device comes with a DIP package, has five pins, and boasts an MTBF (Mean Time Between Failure) of 2,360,000 hours, emphasizing long-term reliability for continuous applications. With a compact size - length of 24.1mm, width 14mm, and depth 8.5mm - and a gross weight of only 6.1g, it is ideal for PCB installations where space and thermal management are pivotal.
Typical use cases include powering sensors and electronics in industrial automation, cross-platform instrumentation, portable IT equipment, and embedded systems requiring stable DC conversion, noise immunity, and regulated voltages.
This product is certified for CSA, RoHS, UL, and REACH standards, and is manufactured in Taiwan, Province Of China, ensuring global compliance and quality. Its efficiency and compactness are matched by its robust safety features, making it a preferred choice in demanding environments.
For more DC/DC converters and power supply solutions, browse the complete TRACOPOWER range in the DC-DC Converter category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 15V DC with a maximum output current of 535mA.
The input voltage range for the TEL 8-2413WI is from 9V to 36V DC, supporting a wide input ratio of 4:1.
The maximum output power of the TEL 8-2413WI is 8W.
This unit has a length of 24.1mm, a width of 14mm, and a depth of 8.5mm.
The operating temperature range for the TEL 8-2413WI is from -40°C to 80°C, making it suitable for harsh conditions.
This model features a through-hole mounting type, designed for easy installation on PCBs.
The TEL 8-2413WI is certified for CSA, RoHS, UL, and REACH standards, ensuring compliance with industry regulations.
The isolation voltage for the TEL 8-2413WI is 1.5kV DC, enhancing electrical safety.
This converter has an efficiency rating of up to 85%.
The TEL 8-2413WI includes built-in short circuit and overload protection for enhanced reliability.
The gross weight of this unit is 6.1g, making it lightweight and suitable for compact applications.
This model is suitable for powering sensors and electronics in industrial automation, instrumentation, and embedded systems.
