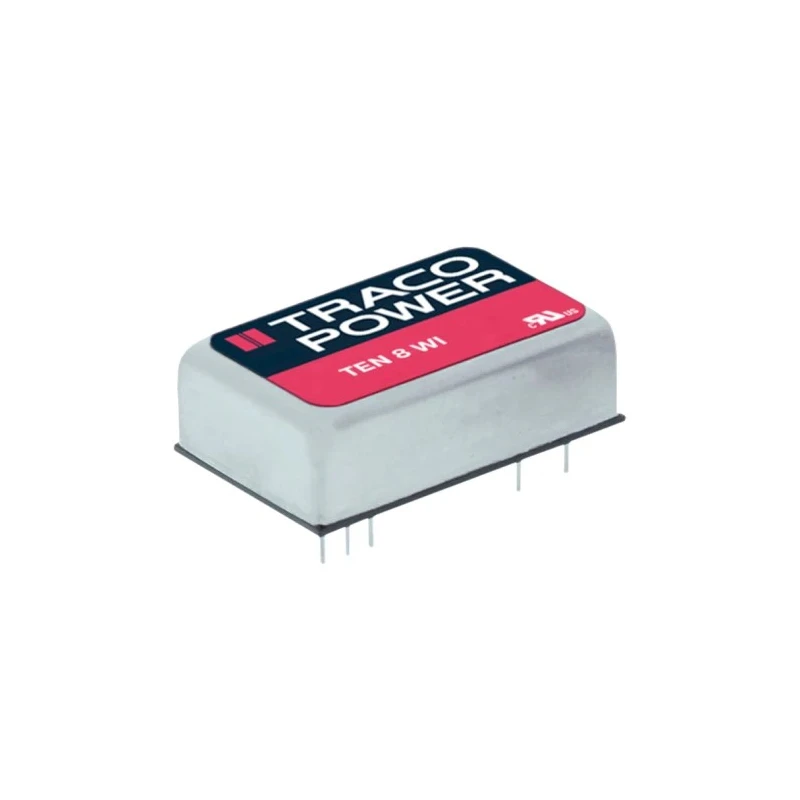

TRACOPOWER DC/DC Converter 15V, -15V 265mA Dual Output, 36V DC Max Input, 18V Min Input, 8W, PCB Mount, DIP-24 TEN 8-2423WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEN 8WI DC/DC Converter, 15V, -15 V/ 26 |
| Brand | TRACOPOWER |
| Efficiency | 0.86% |
| Length | 32mm |
| Model | TEN 8-2423WI |
| Depth | 10.2mm |
| Width | 20.3mm |
| Mount Type | PCB |
| Series | TEN 8WI |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 700000h |
| Number of outputs | 2 |
| Maximum Output Power | 8W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 24 |
| Output Voltage 1 | 15, -15V |
| Output Current 1 | 265mA |
| Output Voltage Adjustment Range | 18/36 V |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Delivers dual output voltages of 15V and -15V at up to 265mA each.
- Features a wide input voltage range from 18V DC to 36V DC, suitable for diverse DC power sources.
- Offers a robust 8W total output power in a compact DIP-24 package for PCB mounting.
- Designed with a high operating temperature up to 85°C and minimum down to -40°C, ensuring reliability in extreme environments.
- Built with 1.5kV DC isolation voltage and high MTBF of 700,000 hours for enhanced safety and durability.
- Includes remote On/Off control, undervoltage lockout, and an insulated shielded metal case for performance and reliability.
- Suitable for applications in railway, industrial control, wireless/telecom, and test measurement instrumentation.
- Complies with UL/cUL 60950-1, IEC/EN 60950-1, and EN 50155 standards for demanding applications.
Product Description
The TRACOPOWER TEN 8-2423WI is a high-performance isolated DC/DC converter designed to deliver reliable power conversion for demanding industrial, transportation, and telecommunications applications. Featuring dual outputs of 15V and -15V, each capable of supplying up to 265mA, this unit is capable of providing consistent, regulated voltage in environments with variable input power sources.
The TEN 8-2423WI supports a wide input voltage range from 18V DC to 36V DC, making it adaptable for use with a range of DC supply systems, batteries, or distributed power architectures. With an 8W output power rating, it is ideal for driving analog circuits, op-amps, industrial sensors, and control electronics that require stable bipolar supply rails. The DIP-24 form factor ensures straightforward integration on PCBs and reliability for long-term operation.
Operation is guaranteed over a broad ambient temperature span, from -40°C up to 85°C, supporting use in outdoor, mobile, and harsh industrial environments. The converter is housed in a fully shielded metal case with an insulated baseplate to minimize electromagnetic interference and improve thermal performance. Additionally, the device is equipped with a 1.5kV DC isolation voltage, ensuring safe separation between input and output for protection in sensitive electronic systems.
Advanced features include remote On/Off capability, undervoltage lockout to protect connected equipment, and a high mean time between failures (MTBF) of 700,000 hours. Its high efficiency, up to 88% in the product series, and no minimum load requirement further facilitate flexible system design. Applications include railway electronics (with EN 50155 approval), wired and wireless communication systems, measurement and control equipment, and other mission-critical systems.
Compliant with relevant quality and safety standards including UL/cUL 60950-1, IEC/EN 60950-1, and EN 50155, this converter is a proven solution for power distribution and voltage conversion challenges.
Browse more TRACOPOWER DC-DC Converters and explore additional voltage regulation solutions in EnvMart’s industrial electronics catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 8W.
It supports an input voltage range from 18V DC to 36V DC.
This converter provides dual output voltages of 15V and -15V.
The operating temperature range is from -40°C to 85°C.
This model features two outputs.
The isolation voltage is 1.5kV DC.
The dimensions are 32mm in length, 20.3mm in width, and 10.2mm in depth.
The MTBF is 700,000 hours.
It is designed for PCB mounting.
It includes remote On/Off control, undervoltage lockout, and is housed in a shielded metal case.
It is suitable for applications in railway, industrial control, wireless/telecom, and test measurement instrumentation.
It complies with UL/cUL 60950-1, IEC/EN 60950-1, and EN 50155 standards.
