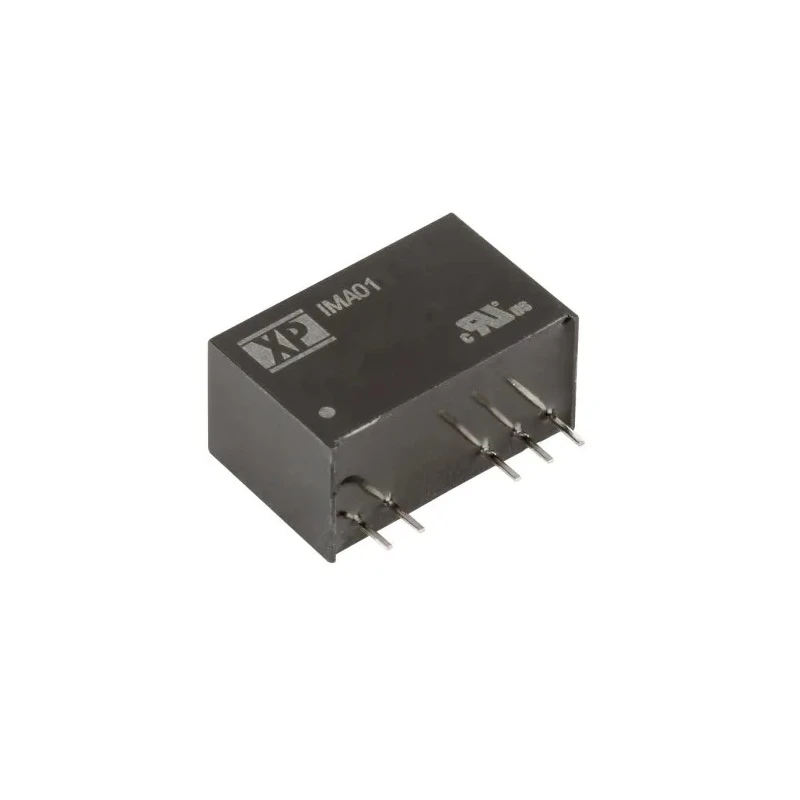

XP Power Isolated DC-DC Converter 5V/-5V, 5.5V dc Max Input, 4.5V Min Input, Through Hole, 75°C Max, SIP7 IMA01

The XP Power IMA0105D05 Isolated DC-DC Converter delivers reliable dual output voltages of +5V and -5V, designed for electronic systems requiring steady power and high isolation. Sourced from the XP Power IMA01 series, this module is engineered for demanding industrial, laboratory, medical, and commercial applications.

Operating from a DC input range of 4.5 to 5.5 volts, the converter provides robust electrical isolation (4000 V AC) between input and output, addressing safety and system integrity concerns. With a maximum output current of 100 mA, the unit is ideal for powering low-power circuits, sensors, and devices requiring dual voltages.

The converter is housed in a compact SIP7 package for through-hole mounting, measuring 19.5 mm in length, 9.2 mm in width, and 11.1 mm in depth. Its form factor supports quick PCB integration and is suitable for both new product designs and upgrades of existing installations. The component is approved to CSA and EN standards and offers a wide operating temperature range from -40°C to 75°C, ensuring reliable performance in varied environments.

With a high mean time between failures (MTBF) of 2,500,000 hours, the IMA0105D05 provides exceptional reliability, reducing maintenance and downtime in mission-critical systems. The efficiency rating stands at 77%, minimizing wasted energy and heat generation.

Applications include industrial automation, laboratory instrumentation, medical devices (where medical approvals are applicable), embedded control systems, sensor interfaces, and commercial electronics that demand isolated power sources. The converter's high isolation level and dual output options make it versatile for diverse installations.

Dual isolated outputs: +5V and -5V for powering sensitive electronics. Wide input range: 4.5V - 5.5V DC for compatibility with various supply voltages. High isolation voltage: 4000 V AC for enhanced safety and system protection.

SIP7 through-hole package for secure PCB mounting. Long reliability with MTBF of 2.5 million hours. Compact dimensions and lightweight construction (3.6 g). Compliant with CSA and EN standards. Operating temperature: -40°C to 75°C.
