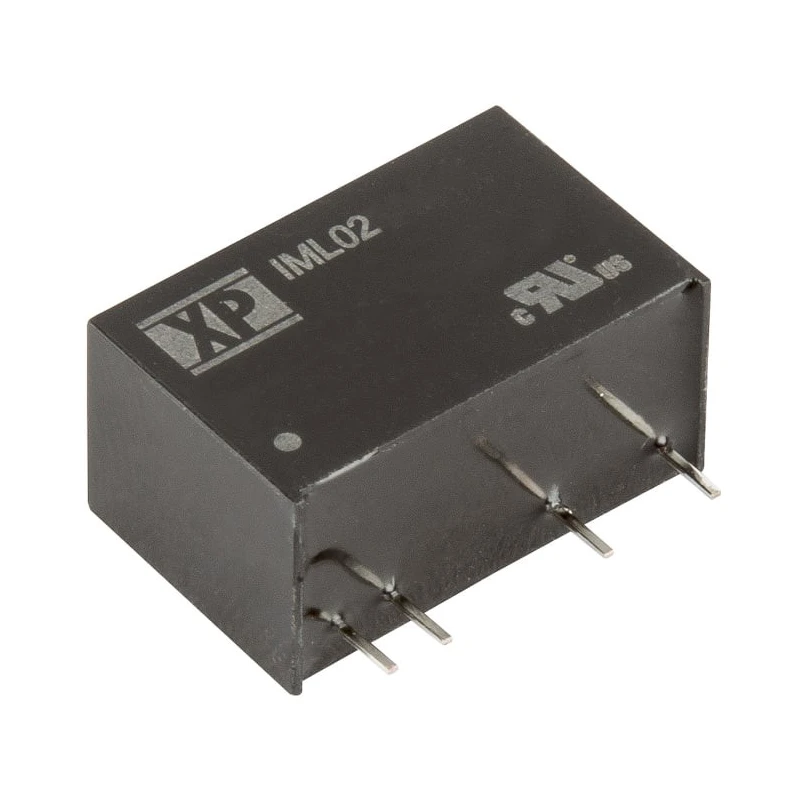

XP Power DC/DC Converter, 3V DC, 600 mA Output, 21.6 - 26.4V Input, 2W, SIP Through Hole, 85°C Max, -40°C Min IML02
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power IML02 DC/DC Converter, 3V dc/ 600 mA, 26 |
| Brand | XP Power |
| Efficiency | 75% |
| Length | 19.5mm |
| Model | IML02 |
| Depth | 12.5mm |
| Width | 9.8mm |
| Mount Type | Through Hole |
| Series | IML02 |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2500000h |
| Number of outputs | 1 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 26.4V dc |
| Minimum Input Voltage | 21.6V |
| Number of Pins | 7 |
| Output Voltage 1 | 3V dc |
| Output Current 1 | 600mA |
| Output Voltage Adjustment Range | ±5 V |
| Isolation Voltage | 4kV ac |
Key Features
- Wide input voltage range from 21.6V to 26.4V DC provides compatibility with various DC sources.
- Stable 3V DC output delivers up to 600 mA, suitable for powering sensitive electronics.
- 2W maximum output power fits compact board-level DC/DC needs.
- SIP through-hole package with 7 pins for easy PCB integration.
- High isolation voltage of 4kV AC aids safety and medical compliance.
- Efficient operation with a typical efficiency of 75% reduces heat dissipation.
- Broad operating temperature from -40°C to 85°C allows use in challenging environments.
- 2500000 hours MTBF ensures long-term reliability in industrial applications.
Product Description
The XP Power IML0224S3V3 is a high-performance isolated DC/DC converter engineered for precise conversion of DC voltages in demanding industrial and medical environments. This converter accepts an input voltage ranging from 21.6V to 26.4V DC and offers a regulated 3V DC output at up to 600 mA, supporting electronic subsystems with low voltage, high reliability requirements.
Delivering a maximum output power of 2W, the IML0224S3V3 features a SIP7 through-hole package with 7 pins for straightforward PCB assembly and robust mounting. Its outstanding isolation voltage of 4kV AC between input and output makes it suitable for applications where electrical isolation is critical, including medical equipment and instrumentation.
Efficiency is rated at 75%, minimizing heat generation and maximizing energy savings. The wide operating temperature range from -40°C to 85°C enables deployment in harsh environments, such as outdoor installations, industrial automation, and automotive systems.
The converter achieves a long mean time between failures (MTBF) of 2,500,000 hours, underscoring its durability for continuous operation. Standard protection features ensure safety and compliance with stringent industry standards. The adjustable output voltage range of ±5 V adds flexibility for system tuning and integration.
Designed for use in power supplies, embedded medical devices, measurement systems, and instrumentation, the unit's compact SIP design allows easy integration into space-constrained printed circuit boards. It is ideal for industrial, laboratory, medical, automotive, and commercial electronics settings.
Browse more DC-DC converters and XP Power products in the DC-DC Converter category on EnvMart for leading solutions in power conversion.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 21.6V to 26.4V DC.
It delivers a regulated output current of up to 600 mA.
The maximum output power of this converter is 2W.
This unit features a SIP through-hole package with 7 pins for easy PCB integration.
It has an efficiency rating of 75%, which helps minimize heat generation.
The operating temperature range is from -40°C to 85°C, allowing use in harsh environments.
The isolation voltage is rated at 4kV AC, making it suitable for applications requiring electrical isolation.
The mean time between failures (MTBF) is 2,500,000 hours, indicating long-term reliability.
Yes, the output voltage has an adjustment range of ±5 V for flexibility in system integration.
The dimensions are 19.5 mm in length, 12.5 mm in depth, and 9.8 mm in width.
It is designed for use in power supplies, embedded medical devices, measurement systems, and instrumentation.
This model requires a through-hole mounting type for installation on printed circuit boards.
