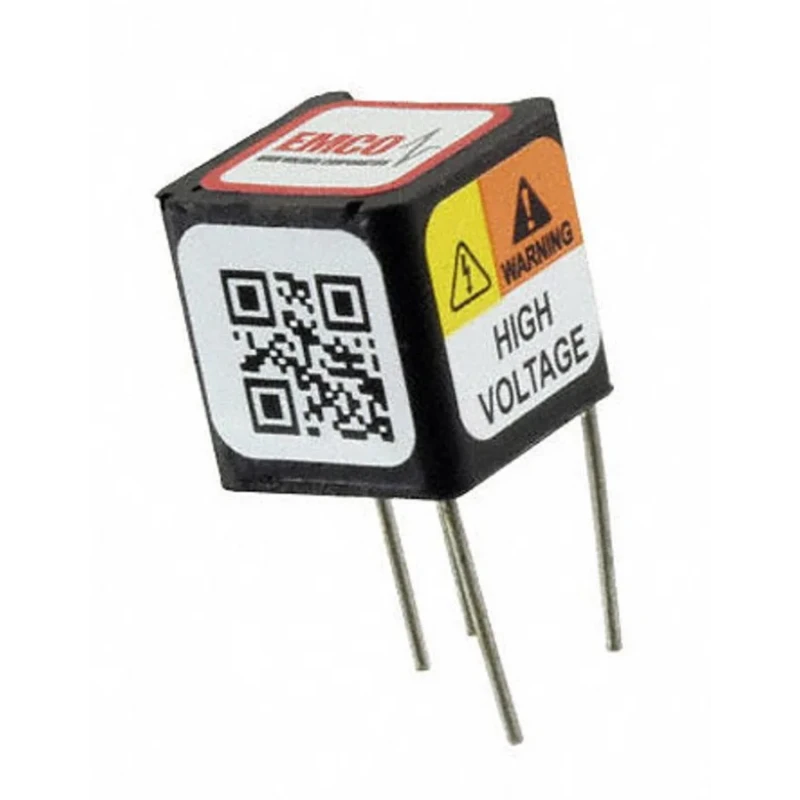

XP Power Q Series DC/DC Converter 100V Output, 5mA, 12V Input, Through Hole, 0.5W, -55°C to 75°C Q01-12CTR

XP Power Q01-12CTR is an advanced DC/DC converter engineered for demanding electronics, laboratory, and industrial applications. Delivering a high voltage output of 100V and an output current of 5mA, this converter operates efficiently from a 12V DC input and is designed for through hole mounting, making it compatible with embedded circuit boards and industrial modules.

With a maximum output power of 0.5W, the XP Power Q Series converter offers ultra-miniature case size, reliability, and external component-free installation. Its isolation voltage of 500V and low coupling capacitance ensure superior protection and noise immunity between input and output, while the wide temperature range (-55°C minimum to 75°C maximum) allows operation in both laboratory and field environments.

This converter excels in applications where compact size, low weight, and high reliability are paramount, such as avalanche photodiodes, photomultiplier tubes, piezo devices, ion pumps, electrophoresis, printers, igniters, and capacitor charging circuits. The unit's 6-pin configuration supports up to 5 outputs, making it versatile for multi-channel solutions, and its MTBF of 3,000,000 hours ensures long-term stable operation in continuous use.

Featuring low ripple and EMI/RFI emissions (1% peak-to-peak), the device supports precision measurement and control applications, and includes short circuit protection, low leakage current, and advanced input/output isolation.

These technical benefits combine to make the XP Power Q01-12CTR an excellent choice for OEMs, research labs, industrial automation, and high-voltage sensing circuits. Its compact footprint (length and width of 12.7mm each) and lightweight (4.3g) design make it suitable for integration into space-limited and mobile systems.

Industrial use cases include electronics manufacturing, laboratory instrumentation, scientific research, sensing equipment, and industrial automation requiring high voltage conversion and isolation.

High voltage DC/DC converter with 100V output and 5mA current for demanding electronic circuits. Operates with a 12V input voltage and offers a compact through hole mounting design. Rated for 0.5W maximum output power to enable efficient miniature setups.

Outstanding reliability with MTBF of 3,000,000 hours and isolation voltage of 500V. Wide operating temperature range from -55°C to 75°C for robust industrial environments. Low ripple and noise (1% peak-to-peak) ideal for precision sensors and control electronics.

Features 6 pins and supports multiple outputs with advanced isolation and compact form factor. Suitable for avalanche photodiodes, piezo devices, ion pumps, electrophoresis, printers, and isolated capacitor charging. Browse more XP Power converters and advanced DC/DC solutions on the EnvMart platform.
