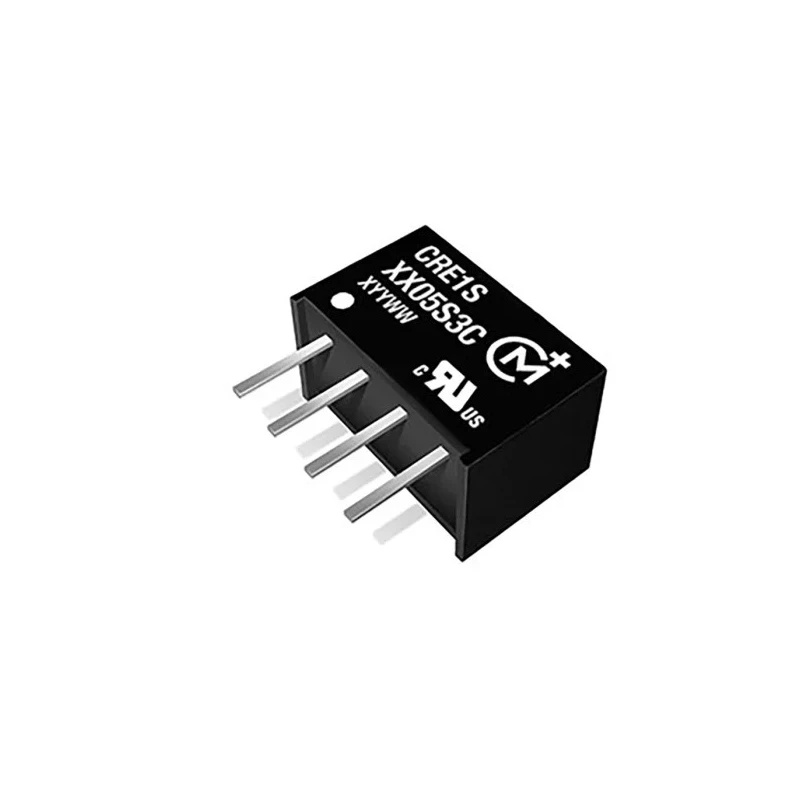

Murata Power Solutions DC/DC Converter 5V DC, 200 mA, 3.3V/2.97V Input, 1 W, Through Hole CRE1
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions CRE1 DC/DC Converter, 5V dc |
| Brand | Murata Power Solutions |
| Efficiency | 75% |
| Length | 11.53mm |
| Model | CRE1 |
| Depth | 7.46mm |
| Gross Weight | 1.09g |
| Width | 7.46mm |
| Mount Type | Through Hole |
| Series | CRE1 |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP-4 |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Ripple and Noise | 25mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 3.3V dc |
| Standards/Approvals | CRE, RoHS, UL |
| Minimum Input Voltage | 2.97V |
| Number of Pins | 4 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 200mA |
| Output Voltage Adjustment Range | 2.97/3.3 V |
| Isolation Voltage | 3kV dc |
Key Features
- Isolated DC/DC converter for efficient low-power regulation.
- Delivers a stable 5V DC output at up to 200 mA current.
- Operates on input voltages between 2.97V and 3.3V DC.
- Provides 1 W maximum output power for compact electronics.
- Through Hole SIP-4 package enables robust PCB mounting.
- 3kV DC isolation voltage for electrical safety and protection.
- Maintains ripple and noise at 25mV peak-to-peak.
- Achieves 75% conversion efficiency in typical use.
Product Description
Murata Power Solutions CRE1S0305S3C is a compact isolated DC/DC converter engineered for precision power delivery in demanding electronic applications. This module provides a regulated 5V DC output at a maximum current of 200 mA, making it highly suitable for powering sensitive devices and circuits on PCB assemblies.
Operating from an input voltage range of 2.97V to 3.3V DC, the converter ensures reliable operation across a range of supply conditions. Its maximum output power of 1 W meets the needs of low-power electronics such as embedded systems, instrumentation modules, communications interfaces, and control circuits, while maintaining electrical isolation and safety.
Designed in a Through Hole SIP-4 package, installation is straightforward, allowing robust mounting onto standard printed circuit boards. The unit provides high galvanic isolation with an isolation voltage rated at 3kV DC, protecting downstream circuitry from input-side transients and disturbances.
Ripple and noise specifications are tightly controlled at 25mV peak-to-peak, ensuring clean power output suitable for sensitive analog and digital components. Efficiency reaches 75%, balancing power conversion reliability and low heat generation even in compact installations.
The CRE1S0305S3C boasts a wide operating temperature range from -40°C to 85°C, supporting operation in harsh industrial environments, laboratories, and commercial systems where long-term reliability is required. Its dimensions (11.53mm x 7.46mm x 7.46mm) and lightweight construction (1.09g) make it suitable for densely populated circuit boards and space-limited devices.
Typical use cases span industrial control equipment, process instrumentation, communications equipment, laboratory measurement systems, and embedded computing. The SIP-4 form factor and industry-standard footprint guarantee easy integration into new designs or upgrades of existing assemblies.
This converter belongs to Murata's CRE1 Series, renowned for industry-compliant packages and pinouts, combining cost-effectiveness with performance and certified to RoHS and UL standards. The product is manufactured in China and adheres to global quality standards for low power DC/DC conversion.
Explore the EnvMart range of Murata Power Solutions DC/DC Converter products for industrial, laboratory, instrumentation, and electronics sector use.
Explore more products in our DC-DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 5V DC.
It can deliver a maximum output current of 200 mA.
The converter operates on input voltages ranging from 2.97V to 3.3V DC.
The maximum output power of this DC/DC converter is 1 W.
It has an isolation voltage rating of 3kV DC, providing electrical safety and protection.
The dimensions of this model are 11.53 mm in length, 7.46 mm in width, and 7.46 mm in depth.
The efficiency of this unit is 75%, balancing power conversion reliability and low heat generation.
The ripple and noise are tightly controlled at 25 mV peak-to-peak.
It operates within a temperature range of -40°C to 85°C.
This model uses a Through Hole SIP-4 package for robust PCB mounting.
It is certified to RoHS and UL standards, ensuring compliance with industry regulations.
This unit has a single output.
