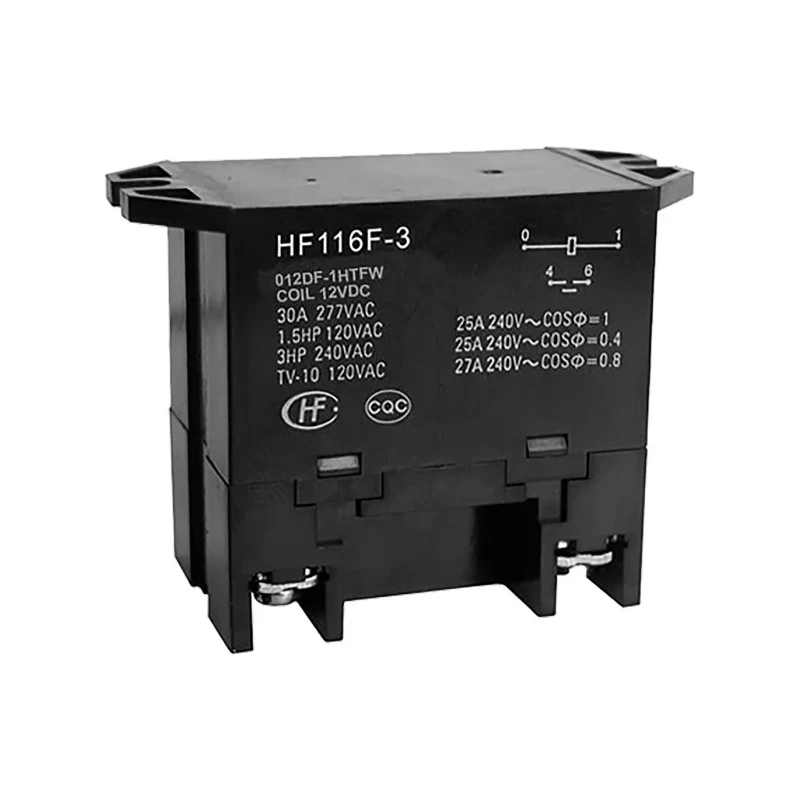

Hongfa Europe GMBH Flange Power Relay 12V DC Coil, 30A Switching Current, SPST, Screw Terminal, HF116F-3/012DF-1HTFW
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 51mm |
| Length | 68mm |
| Model | HF116F-3/012DF-1HTFW |
| Width | 32.9mm |
| Mount Type | Flange |
| Contact Material | Silver Alloy |
| Series | HF116F-3 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -55°C |
| Switching Current | 30A |
| Terminal type | Screw |
| Contact Resistance | 100mΩ |
| Standards/Approvals | cULus, CQC |
| Coil Resistance | 75Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 1.9W |
Key Features
- Offers a high switching current of 30A for demanding industrial tasks.
- Operates on a 12V DC coil voltage for efficient control integration.
- Features SPST contact configuration for straightforward single circuit switching.
- Equipped with screw terminals in a sealed flange mount housing for secure installation.
- Provides dielectric strength up to 4 kV for enhanced insulation safety.
- Utilizes silver alloy contact material for dependable conductivity and long life.
- Has a contact gap of 3 mm for safety and operational reliability.
- Wide operating temperature from -55°C to 70°C suitable for varied environments.
Product Description
The Hongfa Europe GMBH HF116F-3/012DF-1HTFW is a flange-mounted Power Relay engineered for robust industrial and commercial switching requirements. With a 12V DC coil and a considerable 30A switching current, this relay fits perfectly into electrical control panels and automation systems demanding high reliability and performance.
Featuring a single-pole single-throw (SPST) contact configuration, it seamlessly integrates into control circuits that require direct switching of loads. Built with screw terminals housed in a durable plastic sealed flange mount enclosure, the relay ensures safe, secure, and straightforward installation in tight or hazardous environments.
Its silver alloy contacts offer superior conductivity and lifecycle, reducing the risk of failure under continuous heavy loads. The 3 mm contact gap adds to operational safety, while dielectric strength up to 4 kV supports insulation against voltage surges.
This relay can operate across a wide temperature range from -55°C to 70°C, making it suitable for harsh or temperature-fluctuating industrial environments. Its switching power capacity reaches up to 8.3 kVA, allowing you to control powerful devices and machinery.
The HF116F-3/012DF-1HTFW complies with RoHS environmental standards and carries approvals from cULus and CQC, guaranteeing quality and regulatory adherence for global installations.
Offers a high switching current of 30A for demanding industrial tasks. Operates on a 12V DC coil voltage for efficient control integration. Features SPST contact configuration for straightforward single circuit switching.
Equipped with screw terminals in a sealed flange mount housing for secure installation. Provides dielectric strength up to 4 kV for enhanced insulation safety. Utilizes silver alloy contact material for dependable conductivity and long life.
Has a contact gap of 3 mm for safety and operational reliability. Wide operating temperature from -55°C to 70°C suitable for varied environments. Delivers switching power up to 8.3 kVA supporting powerful loads. Compliant with RoHS and approved by cULus, CQC for quality assurance.
The relay is ideal for industrial automation, electrical distribution panels, HVAC control, manufacturing machinery, and other applications requiring robust switching. Browse more relays and industrial controls at EnvMart to find the precise solution for your switching needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a switching current capacity of 30A, making it suitable for demanding industrial tasks.
The relay operates on a 12V DC coil voltage, allowing for efficient control integration.
It features a single-pole single-throw (SPST) contact configuration for straightforward single circuit switching.
The dimensions of this model are 68mm in length, 32.9mm in width, and 51mm in height.
The maximum operating temperature is 70°C, making it suitable for varied environments.
It provides a dielectric strength of up to 4 kV for enhanced insulation safety.
It is equipped with screw terminals for secure installation.
The relay utilizes silver alloy contact material for dependable conductivity and long life.
The contact resistance is 100mΩ, ensuring efficient operation.
It complies with RoHS environmental standards and carries approvals from cULus and CQC.
The minimum operating temperature is -55°C, allowing it to function in harsh conditions.
It can handle a switching power capacity of up to 8.3 kVA, suitable for controlling powerful devices.
