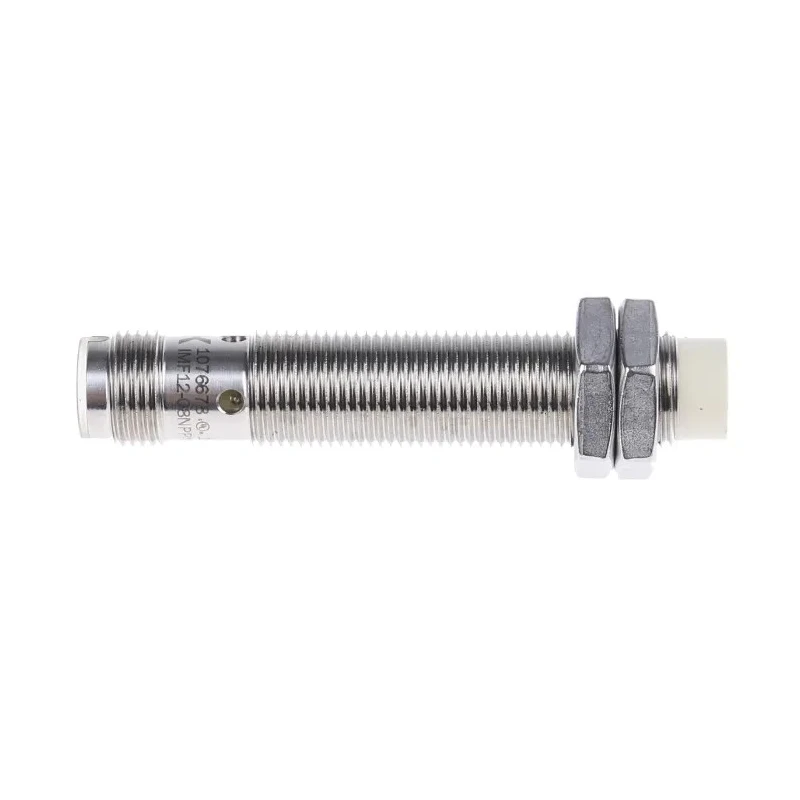

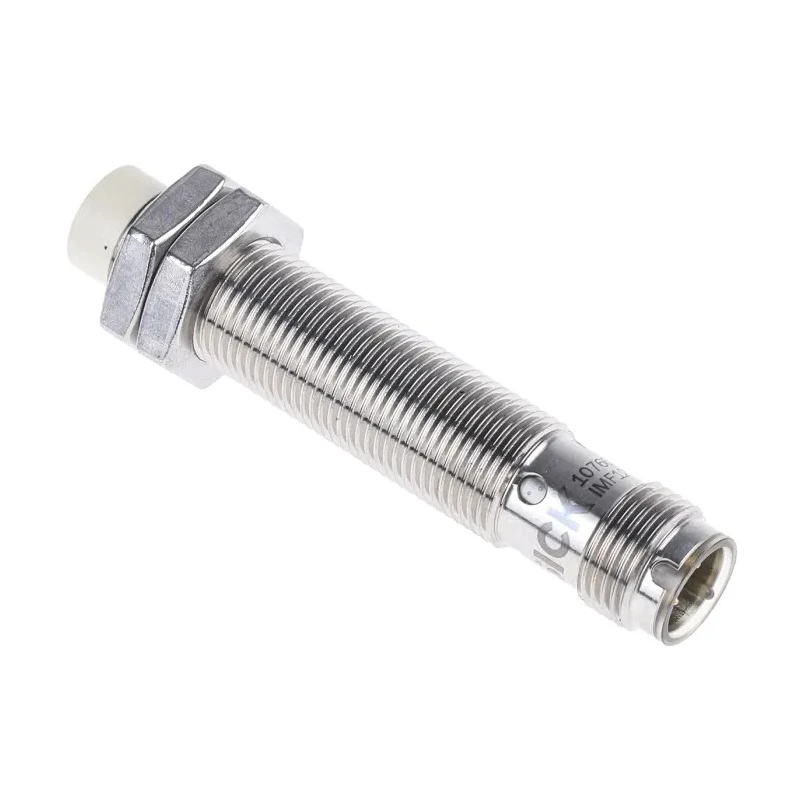

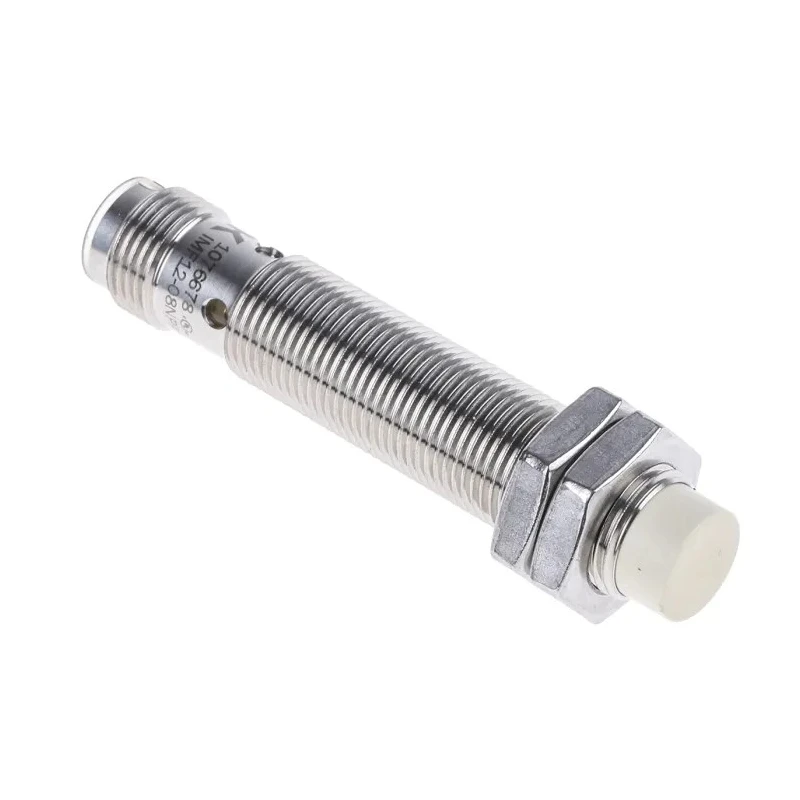

SICK Inductive Proximity Sensor, M12 Threaded Barrel, PNP Output, 8mm Detection, 30V DC, 200mA, Stainless IMF12-08NPPNC0S
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | SICK |
| Length | 65mm |
| Model | IMF12-08NPPNC0S |
| Depth | 65mm |
| IP Rating | IP69K, IP68 |
| Width | 12mm |
| Mount Type | Non-Flush |
| Housing Material | Stainless Steel |
| Output type | PNP |
| Series | IMF12 |
| Maximum Operating Temperature | 100°C |
| Thread Size | M12 |
| Minimum Operating Temperature | -40°C |
| Switching Current | 200mA |
| Terminal type | M12 Male Connector |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 2kHz |
| Standards/Approvals | CE Certified, cULus Listed, EN 60947-5-2, FDA, UL E181493 |
| Maximum Supply Voltage | 30V |
| Materials Detected | Metal |
| Maximum Detection | 8mm |
Key Features
- Detects metallic objects without physical contact.
- Features a durable stainless steel body with a compact M12 threaded barrel design.
- Provides a PNP output suitable for direct interfacing with standard control systems.
- IP69K/IP68 ingress protection ensures operation during washdowns and in harsh environments.
- Operates at a wide temperature range from -40°C up to 100°C.
- 200 mA switching current supports moderate load driving.
- 2 kHz switching frequency enables rapid detection cycles.
- Designed for non-flush mounting for optimum sensitivity.
Product Description
The SICK IMF12-08NPPNC0S inductive proximity sensor is engineered for demanding industrial applications requiring reliable metal detection without contact. Its threaded barrel M12 format ensures secure and flexible mounting, while the stainless steel housing offers mechanical durability and hygiene for food and pharma plants. This sensor is ideal for conveyor presence detection, position monitoring in robotics, and assembly line counting tasks.
With an 8mm maximum sensing range, the device accurately detects metal parts and supports rapid cycle operations with a switching frequency up to 2 kHz. The PNP output allows seamless integration with PLCs and automation controllers. Operation is robust across a wide temperature range of -40°C to 100°C, making it suitable near heat-generating machinery or in thermally demanding environments.
The IP69K and IP68-rated enclosure guarantees resistance to high-pressure cleaning and dust ingress, supporting standards-compliance in hygienic and safety-sensitive installations. Its unshielded design enhances flexibility by allowing both frontal and lateral approach detection. Connection is via an M12 male connector, simplifying cabling and system integration.
Applications range from presence sensing in conveyor systems, position detection in pick-and-place machines, end-of-travel monitoring for robotic tooling, to object counting in assembly lines. Designed for non-flush mounting, installation requires stand-off to assure specified sensing performance.
Compliance with EN 60947-5-2, CE, cULus, FDA, and UL E181493 assures suitability for global industrial environments. The IMF12-08NPPNC0S sensor is part of SICK’s IMF12 series, recognized for high quality and reliable operation.
Detects metallic objects with non-contact sensing. Durable stainless steel body for robust performance. M12 threaded barrel for secure and flexible mounting. PNP output supports direct control system interfacing. IP69K/IP68 ingress protection for challenging environments.
Wide temperature range operation (-40°C to 100°C). 200 mA switching current; 2 kHz fast response. Unshielded, non-flush mount for optimal detection.
The SICK IMF12-08NPPNC0S is highly recommended for industrial automation, food and beverage, material handling, robotics, and process manufacturing sectors. Explore more SICK sensors in the EnvMart industrial Proximity Sensor category or browse the complete SICK brand range.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this model is 8mm for detecting metallic objects.
This sensor has a length and depth of 65mm, with a width of 12mm.
It features a PNP output, which is suitable for direct interfacing with standard control systems.
The maximum switching frequency is 2 kHz, allowing for rapid detection cycles.
It operates within a wide temperature range from -40°C to 100°C.
This model is designed to detect metallic objects without physical contact.
It is designed for non-flush mounting, which requires a stand-off to ensure optimal sensitivity.
The housing is made of stainless steel, providing durability and hygiene for industrial applications.
It has an IP68 and IP69K rating, ensuring resistance to dust and high-pressure cleaning.
The maximum switching current is 200 mA, which supports moderate load driving.
Connection is made via an M12 male connector, simplifying cabling and integration.
It complies with several standards including CE, cULus, EN 60947-5-2, FDA, and UL E181493.
