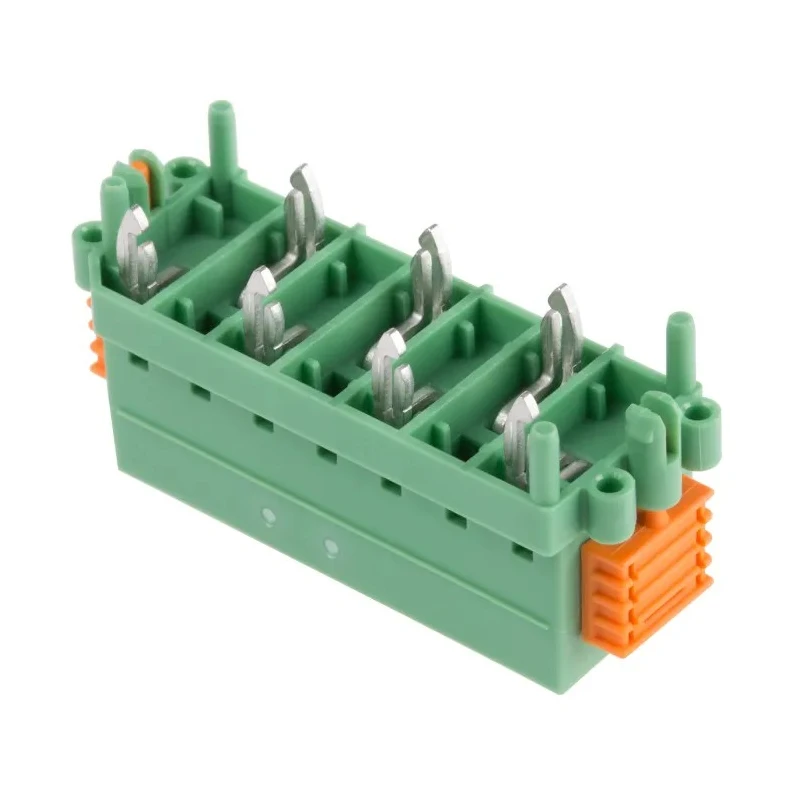

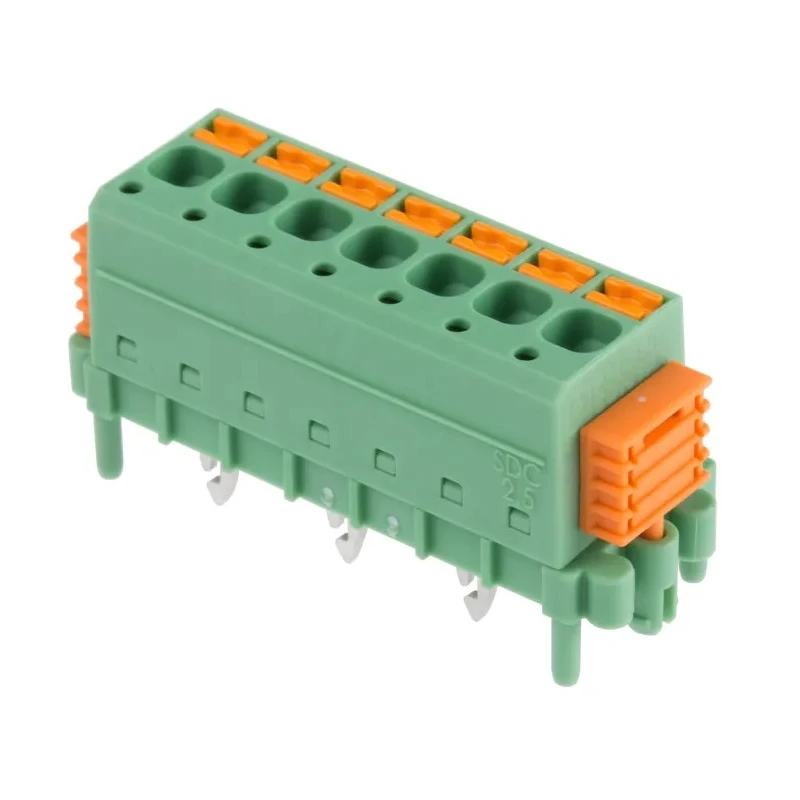

Phoenix Contact SDC 2.5/7-PV-5.0-ZB Series Straight PCB Terminal Block , 7 Contacts, 5 mm Pitch, 12A, 320V 1864082
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 320V |
| Brand | Phoenix Contact |
| Orientation | Straight |
| Current | 12A |
| Model | 1864082 |
| Housing Material | Polyamide |
| Series | SDC 2.5/ 7-PV-5.0-ZB |
| Number of Rows | 1 |
| Pitch | 5mm |
| Standards/Approvals | cULus Recognised, EU RoHS, UL Recognised |
| Number of Contacts | 7 |
Key Features
- Supports 7 contacts for reliable PCB connection.
- Features a 5 mm pitch for compact board layouts.
- Rated for 12A current, suitable for power applications.
- Operates up to 320V for versatile electrical integration.
- Polyamide housing offers durability and insulation.
- One-row, straight orientation optimizes board space usage.
- SKEDD push-in spring technology enables tool-free installation.
- Locking mechanism ensures vibration-resistant connectivity.
Product Description
Phoenix Contact 1864082 SDC 2.5/7-PV-5.0-ZB Series Straight PCB Terminal Block offers engineers a robust one-piece solution for connecting wires and cables directly to PCBs. Designed for demanding industrial and electronic environments, this terminal block enables reliable connections without soldering or press-fit processes. With 7 contacts and a 5 mm pitch, it is ideal where space efficiency is critical and multiple connections are required.
This terminal block is rated for a nominal current of 12A and operates up to 320V, making it suitable for a variety of power and signal applications. The polyamide housing provides high mechanical strength, excellent insulation, and meets strict EU RoHS and cULus requirements. Its straight orientation and single row configuration simplify installation and integration on PCBs.
SKEDD technology forms the core of this product, allowing push-in spring contacts to fit perfectly into PCB holes. No special tools or soldering steps are needed, reducing installation time and thermal stress on boards. The locking mechanism between the housing and PCB ensures a secure, vibration-resistant connection for harsh environments.
Applications include automotive, industrial electronics, machine construction, control cabinets, power tools, white goods, solar power, and medical systems. The green technology aspect allows easy removal and recycling. This terminal block's design extends PCB life and facilitates rework and upgrades.
Key features include 7 contacts, 5 mm pitch, 12A current rating, 320V voltage rating, single-row straight configuration, polyamide housing, SKEDD push-in spring contacts, and vibration-resistant locking.
Supports 7 contacts for reliable PCB connection. Features a 5 mm pitch for compact board layouts. Rated for 12A current, suitable for power applications. Operates up to 320V for versatile electrical integration. Polyamide housing offers durability and insulation.
One-row, straight orientation optimizes board space usage. SKEDD push-in spring technology enables tool-free installation. Locking mechanism ensures vibration-resistant connectivity. Compliant with cULus and EU RoHS standards.
Explore more Phoenix Contact connectors and PCB Terminal Blocks in Electronics & Electricals on EnvMart for industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block is rated for a nominal current of 12A, making it suitable for power applications.
The unit supports 7 contacts, enabling multiple connections on a PCB.
It features a 5 mm pitch, which is ideal for compact board layouts.
The housing is constructed from polyamide, providing durability and insulation.
It has a straight orientation, which optimizes space usage on PCBs.
This unit employs SKEDD push-in spring technology, allowing for tool-free installation.
Yes, it is compliant with cULus and EU RoHS standards, ensuring safety and environmental compliance.
The terminal block is manufactured in Germany.
This model features a single-row configuration, simplifying installation on PCBs.
