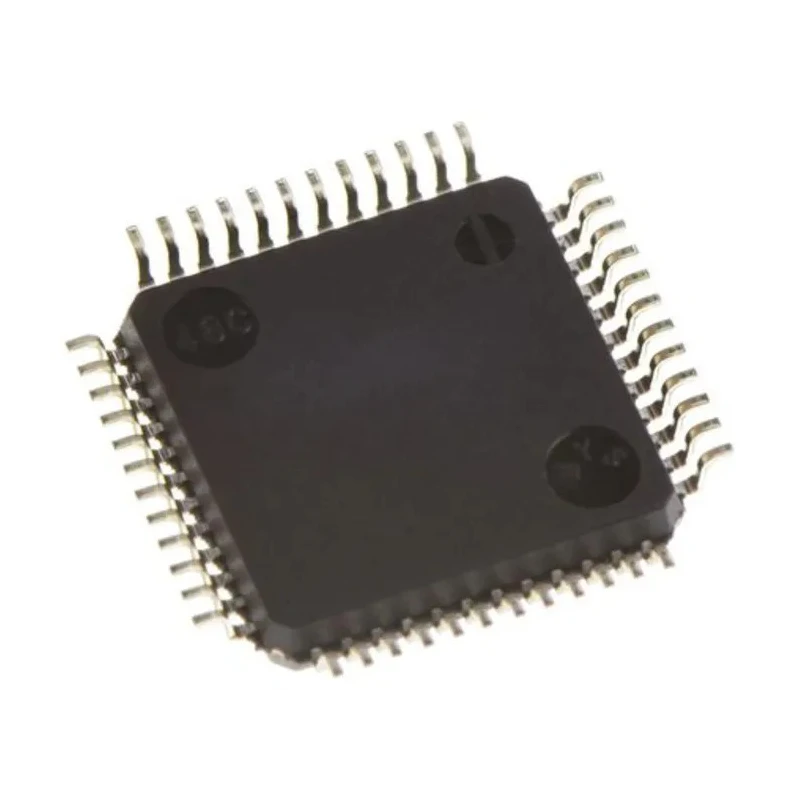

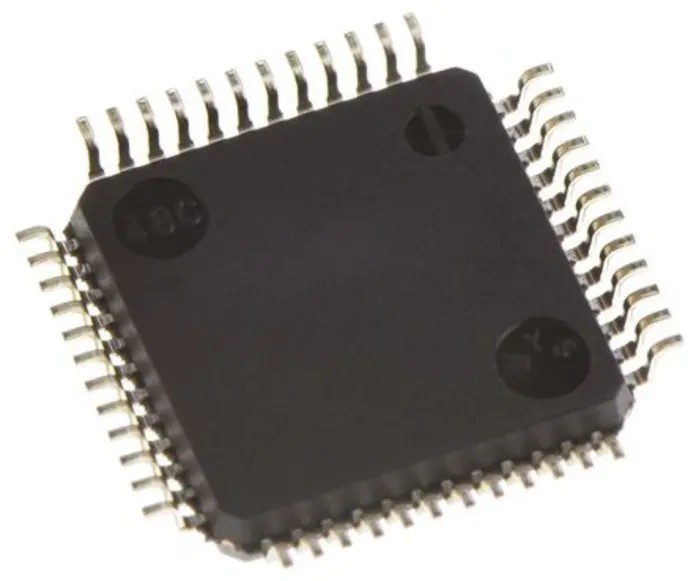

STMicroelectronics STM32F042C6T6 32-Bit ARM Cortex-M0 Microcontroller LQFP 48MHz 32kB FLASH 48-Pin
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.45mm |
| Length | 7.2mm |
| Model | STM32F042C6T6 |
| Width | 7.2mm |
| Mount Type | Surface |
| Series | STM32F042C6 |
| Maximum Operating Temperature | 85°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 6kB |
| Communication Interfaces | I2C, USART, SPI, CAN, USB 2.0 full-speed |
| Architecture | RISC |
| Standards/Approvals | FBI |
| Pin Count | 48 |
| Maximum Supply Voltage | 3.6V |
| Maximum Power Dissipation Pd | 364mW |
| Minimum Supply Voltage | 2V |
| Device Core | ARM Cortex M0 |
| Program Memory Size | 32kB |
| Maximum Clock Frequency | 48MHz |
| Number of Timers | 4 |
| Instruction Set Architecture | RISC |
| ADCs | 13 x 12 Bit |
| Program Memory Type | FLASH |
| RISC Core | ARM 32-bit Cortex-M0 CPU, frequency up to 48MHz |
Key Features
- Integrates an advanced 32-bit ARM Cortex-M0 core running at up to 48MHz clock frequency.
- Features 32kB of FLASH program memory and 6kB RAM for flexible embedded development.
- Surface-mount LQFP package with 48 pins and compact 7.2 x 7.2mm body enhances integration in compact PCBs.
- Operates with supply voltages from 2V to 3.6V and provides an extended industrial temperature range.
- Supports rich communication interfaces including I2C, USART, SPI, CAN and USB 2.0 Full-Speed.
- Includes up to 13 x 12-bit ADCs and hardware CRC calculation unit for signal processing tasks.
- Complies with RISC instruction set architecture and supports up to 37 fast I/O lines.
Product Description
The STMicroelectronics STM32F042C6T6 is a high-performance 32-bit ARM Cortex-M0 microcontroller featuring a compact LQFP 48-pin package. Designed for embedded industrial and commercial applications, this microcontroller operates at a maximum clock frequency of 48MHz, ensuring reliable and efficient processing performance.
This STM32F0 series device provides 32kB of embedded FLASH program memory and 6kB RAM. Its core architecture, based on the ARM Cortex-M0, benefits from RISC design efficiencies, supporting advanced digital signal processing and real-time responsiveness. With a data bus width of 32 bits and support for up to 4 timers, it is suited for timing-critical and multitasking operations.
The STM32F042C6T6 supports flexible mounting thanks to its LQFP surface-mount package, with a footprint of just 7.2 x 7.2 mm and a height of 1.45 mm. It accommodates various system voltages between 2V and 3.6V and can tolerate industrial temperature extremes from -40°C to +85°C, giving it robustness for harsh environments.
On-board peripherals include up to 13 channels of 12-bit ADCs, hardware CRC calculation, up to 37 fast I/O lines, and a diverse suite of communication interfaces: I2C, USART, SPI, CAN, and USB 2.0 full-speed support. Integrated 5-channel DMA and up to 8 internal timers enable effective data management and precise control routines. Maximum dissipation is rated at 364mW for stable long-term operations.
Typical application areas for this microcontroller include embedded control systems, industrial automation, instrumentation, communication gadgets, and custom electronic devices requiring a powerful yet cost-effective controller core. The RISC architecture streamlines code efficiency, while built-in safety and management features make it suitable for critical and energy-sensitive installations.
With its comprehensive industrial-grade features and robust performance profile, the STM32F042C6T6 is an ideal choice for engineers looking to integrate advanced 32-bit microcontroller technology into their products. Explore the entire range of STM32 Microcontrollers for more options, and discover compatible peripherals and development tools on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STM32F042C6T6 microcontroller operates at a maximum clock frequency of 48MHz.
It features 32kB of FLASH program memory for embedded development.
This model supports various communication interfaces including I2C, USART, SPI, CAN, and USB 2.0 full-speed.
It operates within an industrial temperature range from -40°C to +85°C.
The STM32F042C6T6 includes 6kB of RAM.
It features up to 13 channels of 12-bit ADCs for signal processing tasks.
This microcontroller comes in an LQFP package with dimensions of 7.2mm x 7.2mm and a height of 1.45mm.
It operates with supply voltages ranging from 2V to 3.6V.
The STM32F042C6T6 includes up to 4 integrated timers.
The maximum power dissipation is rated at 364mW.
This microcontroller is based on the RISC instruction set architecture with an ARM Cortex-M0 core.
Typical applications include embedded control systems, industrial automation, and communication gadgets.
