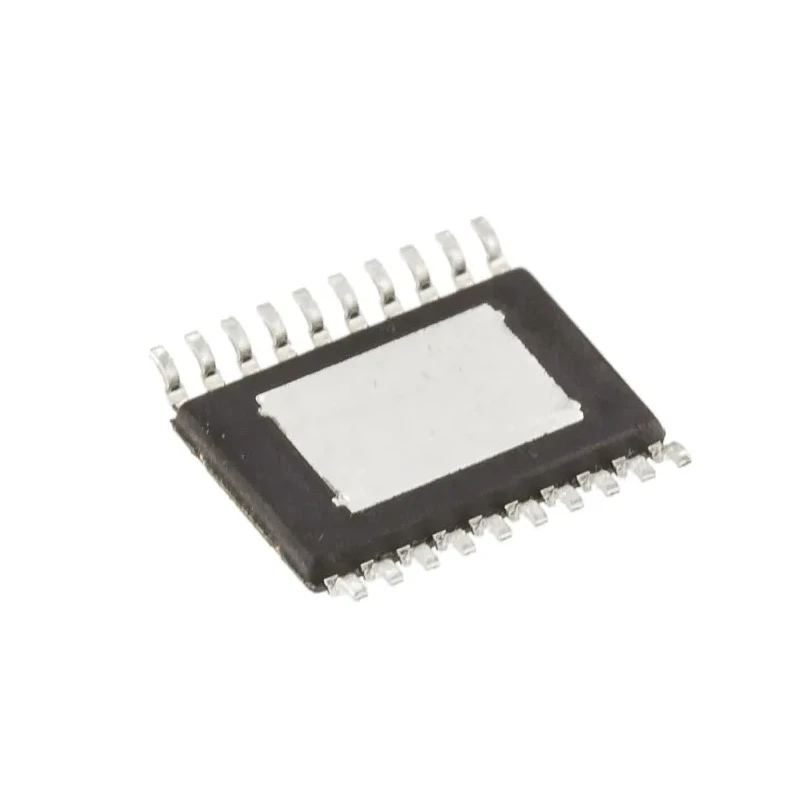

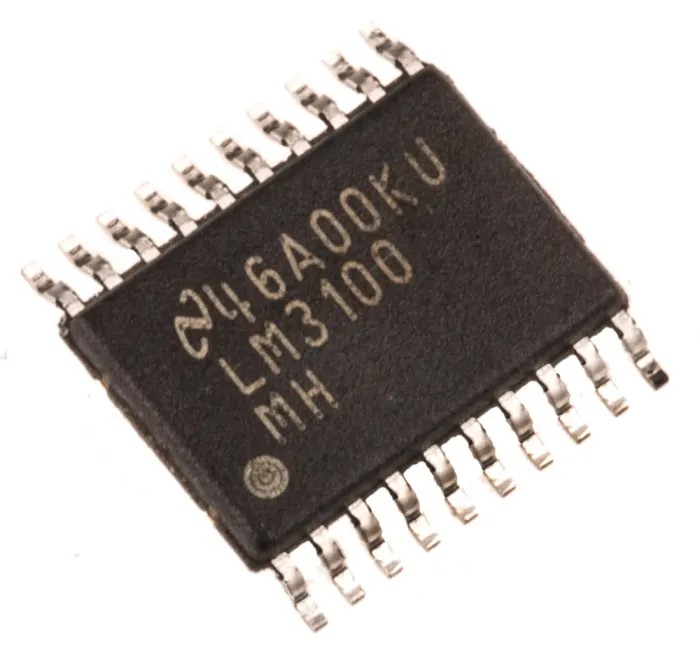

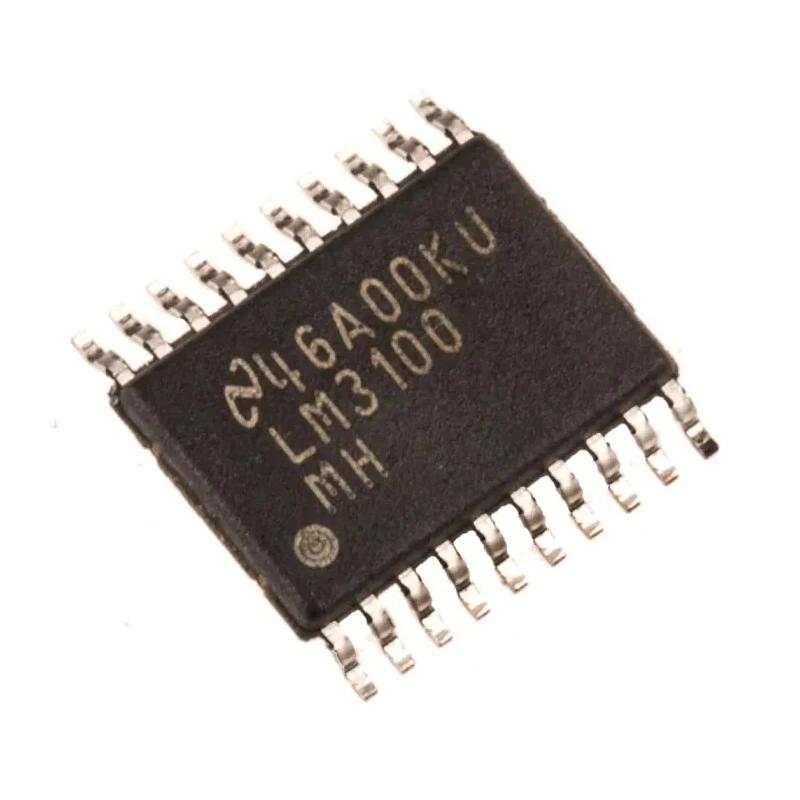

Texas Instruments Buck Converter Surface Mount LM3100MH/NOPB, 7.2V Output, 1.5A, 93% Efficiency, TSSOP Package
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Efficiency | 93% |
| Length | 6.5mm |
| Model | LM3100MH/NOPB |
| Depth | 1.2mm |
| Width | 4.4mm |
| Mount Type | Surface |
| Series | LM3100 |
| Output Current | 1.5A |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 36V |
| Standards/Approvals | ANSI, REACH, ESDA, JEDEC, RoHS |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 20 |
| Output Voltage 1 | 7.2V |
| Output Voltage 2 | 36V |
| Programmable Switching Frequency | up to 1MHz |
Key Features
- Surface mount DC-DC buck converter suitable for industrial and embedded applications.
- Delivers 7.2V output voltage with up to 1.5A output current for reliable power supply.
- Maximum efficiency of 93% reduces system energy consumption and thermal output.
- Operates in wide ambient temperature range from -40°C to 125°C.
- TSSOP compact package with 20 pins for space-saving PCB designs.
- Supports programmable switching frequency up to 1MHz for flexible system integration.
- Integrated dual N-channel synchronous MOSFETs provide efficiency at light loads.
- Compliant with ANSI, REACH, ESDA, JEDEC, and RoHS safety and environmental standards.
Product Description
The Texas Instruments LM3100MH/NOPB is a precision surface mount buck DC-DC converter engineered to deliver stable voltage regulation for electronic systems requiring efficient power management. With a 7.2V output voltage and 1.5A output current, this converter is ideal for powering a variety of circuit loads while maintaining exceptional efficiency.
Built using Constant On Time (COT) architecture, the LM3100MH/NOPB achieves fast load transient response and eliminates the need for loop compensation, simplifying system design. Integrated dual N-channel synchronous MOSFETs ensure high efficiency, particularly at light loads, reducing energy consumption and system heat.
Key specifications include up to 42V wide input voltage range, minimum input voltage of 4.5V, and maximum input voltage of 36V. It operates reliably between -40°C and 125°C, suitable for industrial, commercial, and embedded applications subject to fluctuating environments. The device is housed in a compact TSSOP package (6.5mm length, 4.4mm width, 1.2mm depth, 20 pins), facilitating seamless PCB integration and space-saving designs.
Efficiency up to 93% enables designs requiring minimal power loss. Programmable switching frequency up to 1MHz allows system designers flexibility in optimizing noise, size, and performance. The LM3100MH/NOPB supports a single output line and is particularly well-suited for designs with wide voltage input requirements.
Texas Instruments' SIMPLE SWITCHER® regulator series is renowned for ease of use and design flexibility, making this converter an excellent choice for industrial automation, instrumentation, telecommunications, and embedded computing.
Compliance with ANSI, REACH, ESDA, JEDEC, and RoHS standards ensures suitability for global deployments and regulatory requirements.
Explore more DC-DC Converter options and related power management solutions in the Texas Instruments category on EnvMart. Optimize your project with trusted industrial-grade products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model delivers an output voltage of 7.2V and an output current of 1.5A.
The efficiency of the LM3100MH/NOPB is rated at up to 93%.
It operates with a wide input voltage range from a minimum of 4.5V to a maximum of 36V.
The TSSOP package measures 6.5mm in length, 4.4mm in width, and 1.2mm in depth, with 20 pins.
The LM3100MH/NOPB supports a programmable switching frequency of up to 1MHz.
It operates reliably within a temperature range of -40°C to 125°C.
This buck converter is suitable for industrial, commercial, and embedded applications requiring efficient power management.
It complies with ANSI, REACH, ESDA, JEDEC, and RoHS standards.
This model supports surface mounting.
It features integrated dual N-channel synchronous MOSFETs that enhance efficiency, especially at light loads.
The COT architecture allows for fast load transient response and eliminates the need for loop compensation, simplifying system design.
This buck converter provides a single output line.
