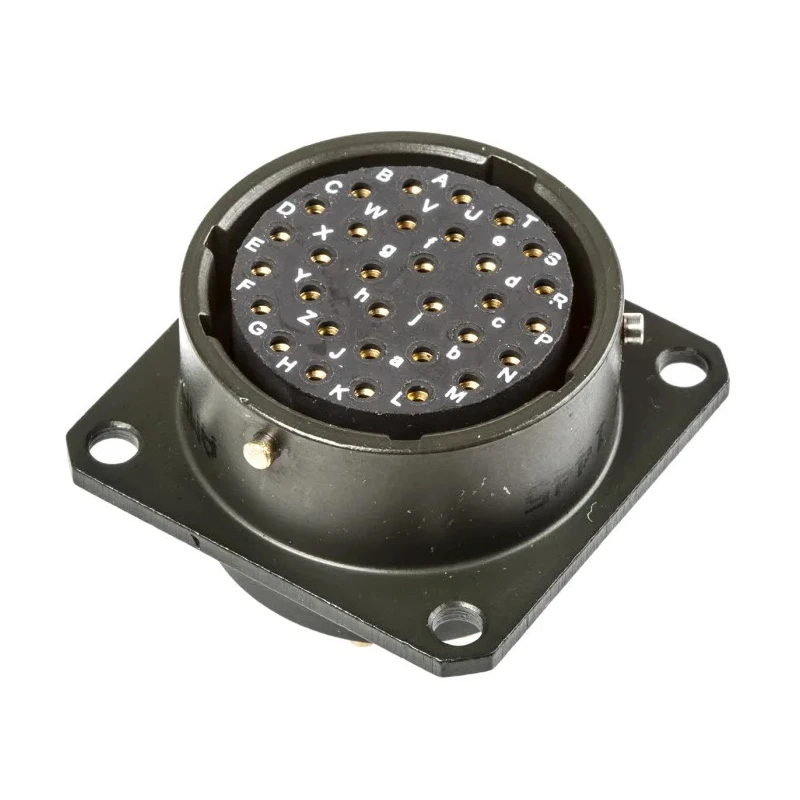

Amphenol Limited MIL Spec Circular Connector 32 Way Female, Bayonet Box Mount, Aluminium, 500V 700V, Olive 62GB-12E18-32SN

The Amphenol Limited 62GB-12E18-32SN is a robust, miniature MIL Spec Circular Connector designed for applications where reliability and environmental resistance are crucial. Engineered to meet the stringent MIL-DTL-26482 military specification, this connector provides a highly secure signal and power connection solution for military, aerospace, and demanding industrial environments.

This box mount connector features 32 gold-plated copper tin female contacts housed within a sturdy aluminium shell. The shell is finished with a zinc cobalt olive drab plating, providing both an attractive appearance and superior resistance to corrosion, making it suitable for deployment in challenging field conditions or harsh outdoor settings. Mechanical life is rated for 500 mating cycles, accommodating frequent connection and disconnection without performance loss.

The connector employs a fast bayonet locking mating system, which delivers essential resistance against vibration and unwanted disconnection in mission-critical environments such as defense vehicles, communication shelters, aircraft, or railway systems. The keyed insert arrangement not only simplifies installation but also minimizes the risk of mating errors between connectors.

Environmental sealing is achieved through durable polychloroprene rubber inserts, keeping out moisture, dust, and contaminants. The 62GB-12E18-32SN is engineered to operate in a wide temperature range from -55°C to 125°C, supporting use in extreme weather, industrial or mobile equipment deployments, and elevated temperature applications.

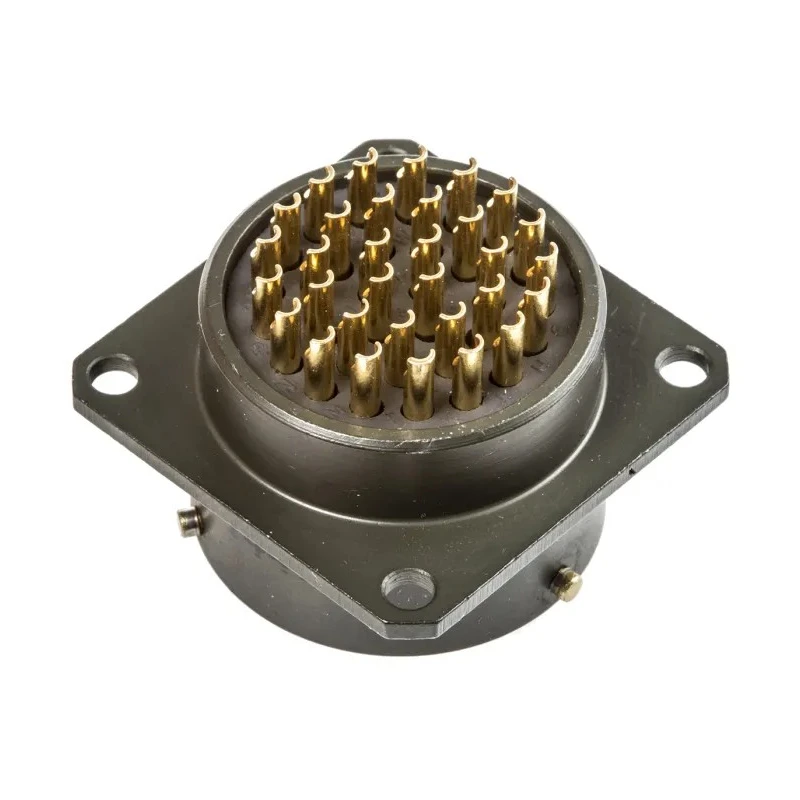

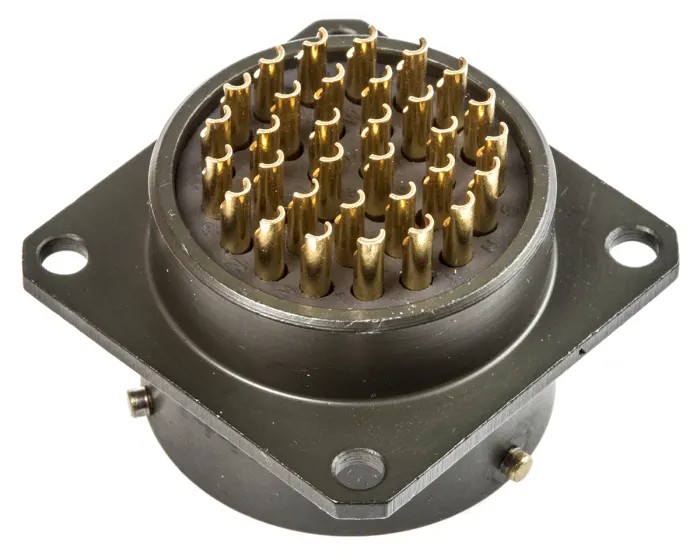

This 62GB series connector accommodates voltage requirements up to 700V AC and supports easy solder termination of signal or power lines. Its miniature shell size and square flange chassis mount design make it well suited for applications where both space conservation and ruggedness are required.

Ideal use cases include military and aerospace vehicles, industrial robotics, transportation infrastructure, communication equipment, and instrumentation where high-reliability signal or power connections are essential. The connector is only mated with cable-mount plugs of corresponding configuration for optimal system integrity.

Choosing the 62GB-12E18-32SN means selecting lasting reliability, enhanced mating security, and resistance to the toughest environments - a professional-grade solution widely trusted across defense and advanced industrial sectors. Explore the full range of Amphenol Limited circular connector solutions for more specialized interconnect needs within the Industrial Circular Connector category.
