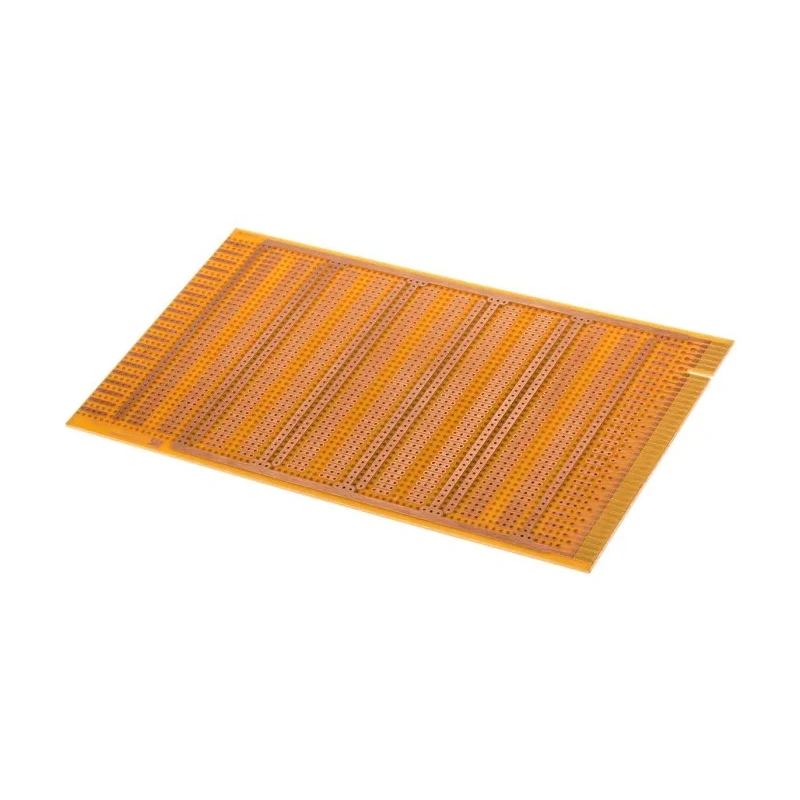

Vero Technologies Breadboard Prototyping Board 1.6mm Thickness, 114mm x 203mm, Edge Plug, Single-Sided, Model 01-3943

Vero Technologies 01-3943 Breadboard Prototyping Board is a specialist electronic prototyping platform designed for engineers, technicians, and hobbyists working on circuit development and testing. The board comes with a thickness of 1.6mm and dimensions of 114mm by 203mm, providing ample space for assembling and connecting components.

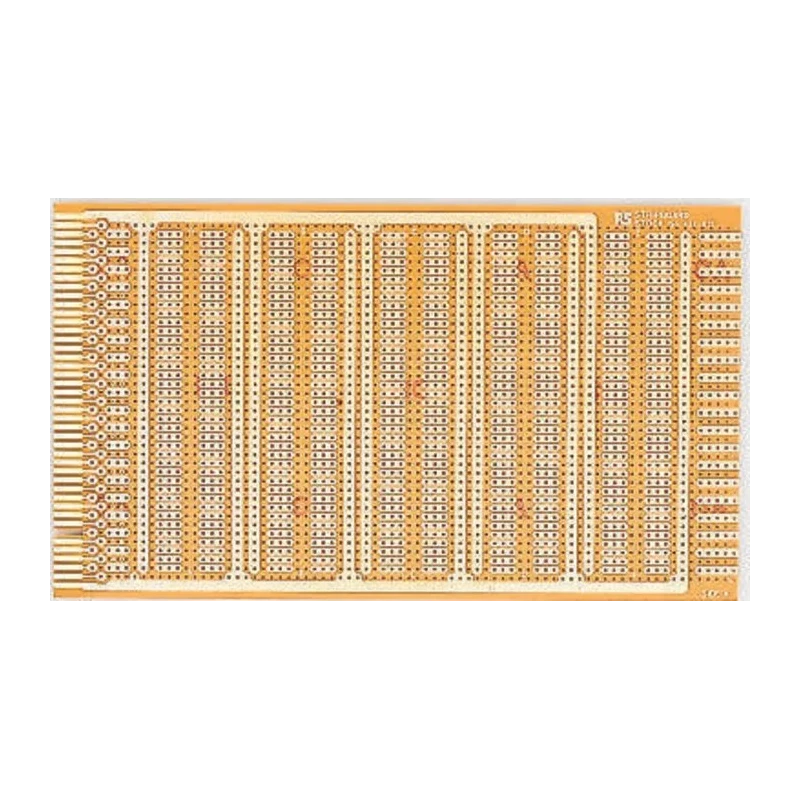

This breadboard offers a single-sided edge plug, which facilitates secure and reliable connectivity during prototyping sessions. The copper tracks and pads are arranged on a 0.1 inch (2.54mm) pitch, making it compatible with most Dual Inline Package (DIP) components employed in modern electronic designs. With board holes measuring 1.0mm (0.040 inch), the platform is well-suited for through-hole components commonly used in workshops and laboratories.

The component side is engineered with supplementary copper tracks to simplify supply rails, auxiliary wiring, and accessory integration. Its edge plugs are gold-plated, which enhances electrical conductivity and longevity, critical for repeated prototyping cycles. Marked drilling positions enable quick and precise fitting of card handles or card fronts, streamlining installation and removal as needed.

The board is designed to accommodate up to 20 ICs, supporting extensive applications including rapid prototyping, experimental build-outs, educational circuit projects, and iterative development for industrial and laboratory usage. RoHS compliance assures that the material meets regulatory safety and environmental standards, making it suitable for professional environments.

This breadboard prototyping board finds its primary use in industrial, laboratory, and educational settings where reliable, robust prototyping boards are essential for circuit validation, product development, and training purposes. It is especially relevant in electronics manufacturing, repair and maintenance facilities, and engineering R&D labs.

Features a single-sided edge plug for secure connections. Copper tracks and pads available on a 2.54mm pitch for DIP packages. Board holes sized at 1.0mm, suitable for standard electronic components. Component side includes additional copper tracks for supply rails and accessories.

Edge plugs are gold plated for enhanced conductivity and durability. Drilling positions marked for easy fitting of card handles or card fronts. Accommodates up to 20 integrated circuits for prototyping tasks. Constructed to RoHS standards, ensuring compliance with safety regulations.
