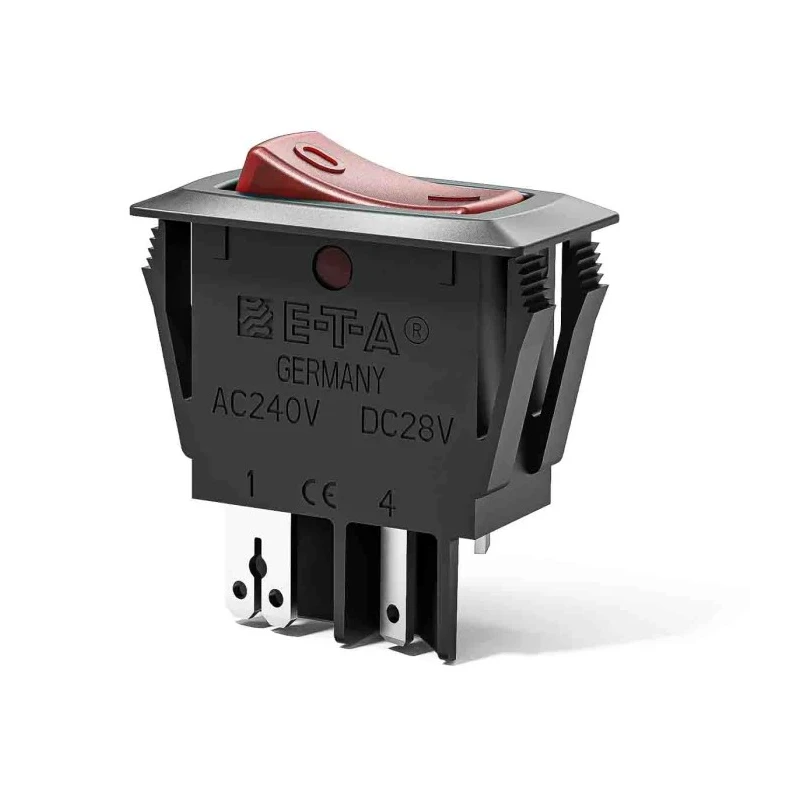

ETA Thermal Circuit Breaker 8A 1-Pole Base Mount, Type R, 240V AC 28V DC, 1410-F110-P1F1-W14QB4-8A

The ETA 1410-F110-P1F1-W14QB4-8A Thermal Circuit Breaker is an advanced protective device engineered to deliver overcurrent protection in demanding electrical applications. It is designed for single-pole circuits operating at up to 8A and can be used in both AC (240V) and DC (28V) systems. This model is fitted with a rocker actuator and features a thermal tripping mechanism that quickly disconnects the circuit in the event of overload, thus preventing equipment damage.

With its base mount configuration and screw terminals, installation is both simple and robust, ensuring a reliable connection to your electrical systems. The device is built to compact specifications, with a width of 17 mm and a height of 15 mm, making it suitable for panel-mount and tight-space installations. Type R tripping characteristics ensure a rapid thermal response, aiding in high-speed circuit isolation where faults occur.

The circuit breaker incorporates a medium break time, offering a balanced trade-off between nuisance tripping and responsive protection. It is constructed for longevity with a typical life expectancy of 300 operations at double nominal current. The mounting hole size of 28 x 12.7 mm is designed for easy integration in a variety of panels, and the blade terminals comply with DIN 46244-C 2.8-0.8 standards for compatibility and safety.

Engineered to RoHS and CE standards for global markets, this model is suited for domestic appliances, industrial machinery, hand tools, and precision instrumentation - where the reliability of the circuit protection is essential. Key approvals include UL, CSA, and SEV, ensuring broad compliance with safety norms.

ETA’s 1410-F series supports front-panel switch and fuse replacement for maximum uptime during maintenance. Common applications include manufacturing lines, electrical panels, measurement instruments, HVAC controls, industrial tools, and more in sectors such as commercial automation, laboratory infrastructure, and equipment protection.
