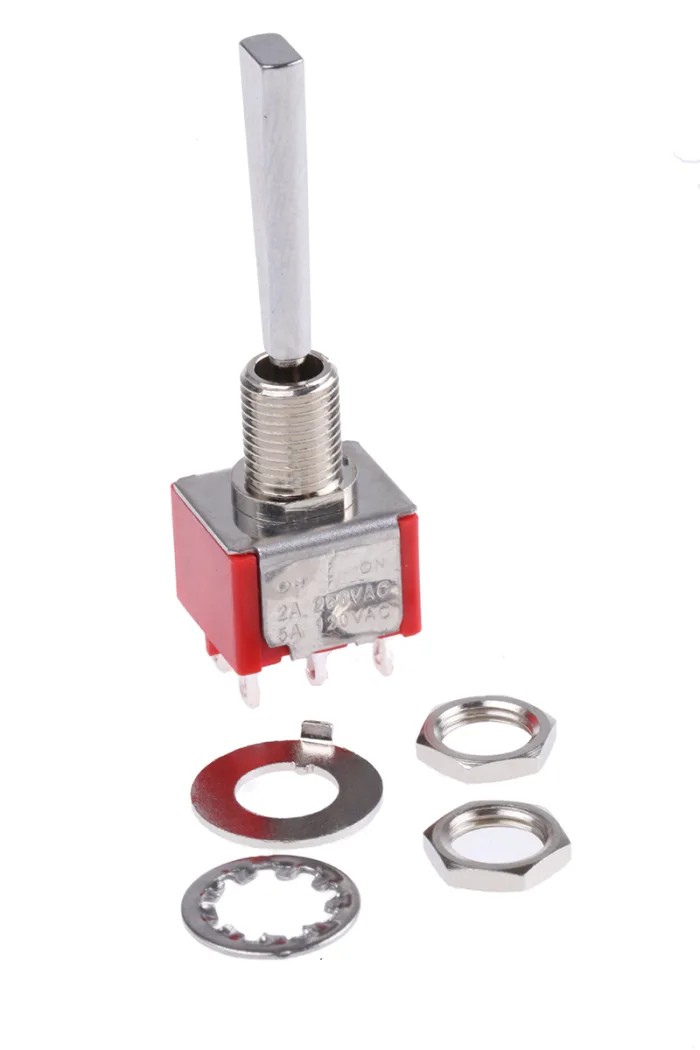

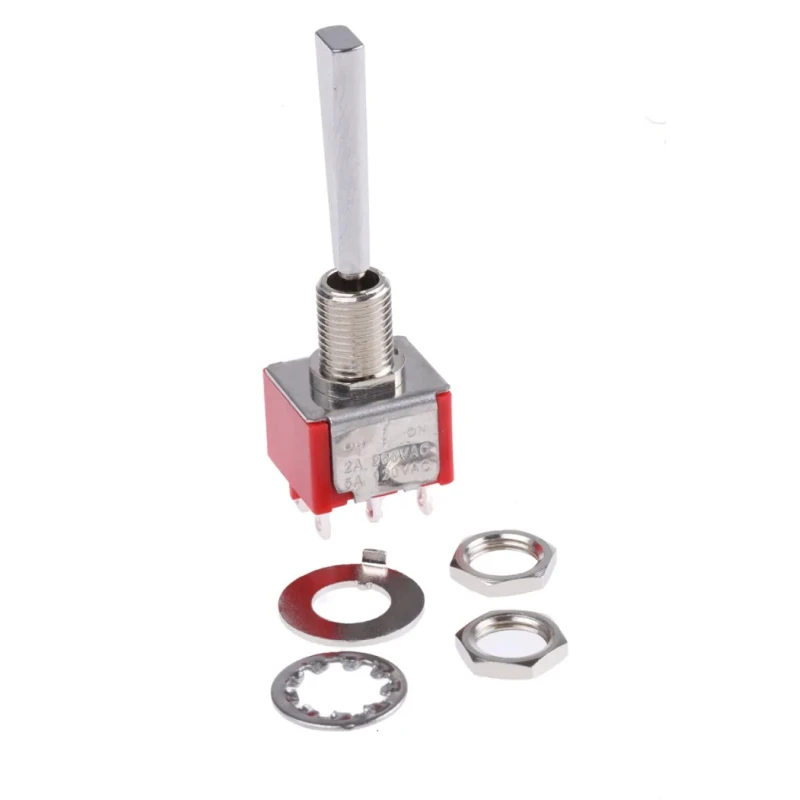

RS PRO Toggle Switch Panel Mount DPDT On-Off-On Solder Terminal 26 V DC 112 V AC 5A Brass Flat Lever 394-469

The RS PRO 394-469 Toggle Switch is a miniature, panel-mounted DPDT switch engineered for precise circuit switching in electrical, automation, laboratory, and commercial applications. Designed for On-Off-On operation, it offers versatile switching options between two separate circuits or functions, making it ideal for control panels, equipment selectors, and system interfaces.

This toggle switch features solder terminals providing secure, reliable connections and easy integration into PCB assembly and custom wiring solutions. The actuator lever is a flat design, made with chrome-plated brass, delivering strong wear resistance and ergonomic handling during frequent operations. The case material is Diallyl Phthalate (DAP), rated UL94V-0, offering robust insulation and fire retardance under demanding working conditions.

Rated to handle contact currents up to 5A, the switch accommodates both 26 V DC and 112 V AC, extending usability across low-voltage signal and mains control circuits. Silver contacts enhance electrical performance with low resistance and stable conductivity, ensuring consistent switching and minimal voltage drop.

The mechanical life is rated for 40,000 cycles, translating to reliable, extended operation in industrial, laboratory, manufacturing, and HVAC environments. An operating temperature range from -30°C to +85°C supports applications exposed to varying ambient climates and challenging operational loads.

Epoxy-sealed terminals provide protection against flux and contamination during soldering, safeguarding long-term performance and preventing corrosion. The switch's On-Off-On configuration is essential for applications requiring manual toggling between operational states, such as fan speed selection, lighting control, automation test rigs, and process instrumentation.

This RS PRO toggle switch complies with RoHS standards, reflecting its commitment to environmental safety and electrical compliance. Its compact build suits tight panel spaces while maintaining robust electrical insulation and reliable actuation.

Key industrial sectors benefiting from this switch include electronics manufacturing, process control instrumentation, laboratory equipment, commercial automation panels, and HVAC systems. Whenever precise dual-circuit switching or signal selection is necessary, the RS PRO 394-469 delivers reliable performance and consistent operation.

Panel mount DPDT Toggle Switch for secure control applications. On-Off-On switch configuration suitable for circuit switching and selection. Rated for up to 5A contact current and dual voltage operation at 26 V DC and 112 V AC.

Solder terminals provide reliable connection compatible with PCB assembly and wiring. Flat lever actuator made from chrome-plated brass for durability and smooth operation. Casing constructed of Diallyl Phthalate (DAP) UL94V-0 for high electrical insulation.

Silver contacts ensure excellent conductivity and low contact resistance. Mechanical life of 40000 cycles for long-lasting reliability in industrial environments. Operating temperature range from -30°C to +85°C, supporting demanding conditions.

Epoxy-sealed terminals prevent contamination during soldering and use. Discover more high-performance RS PRO switches and panel-mount solutions in the EnvMart Electronics & Electricals category.
