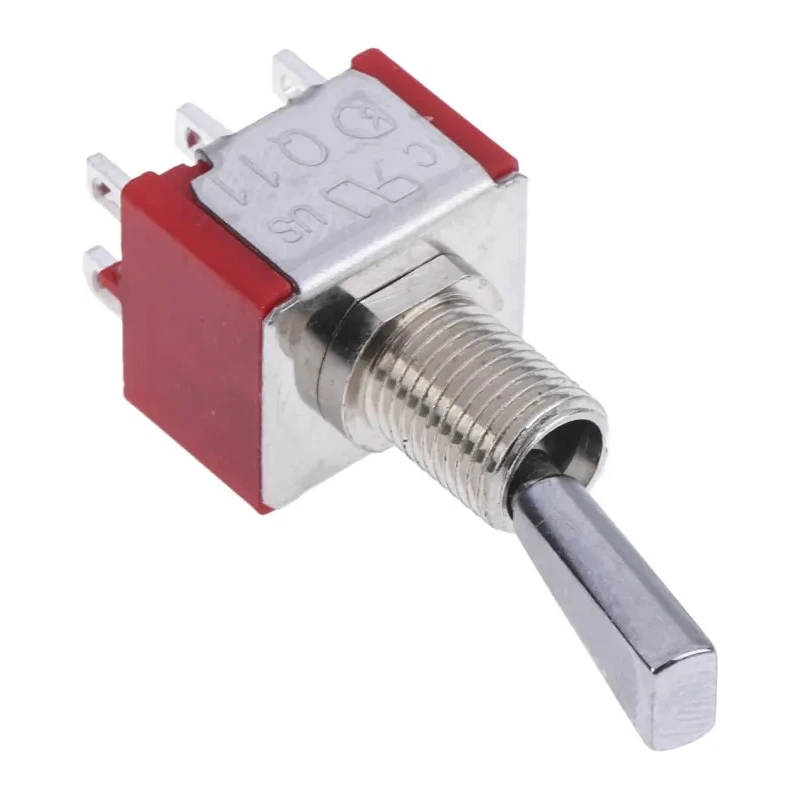

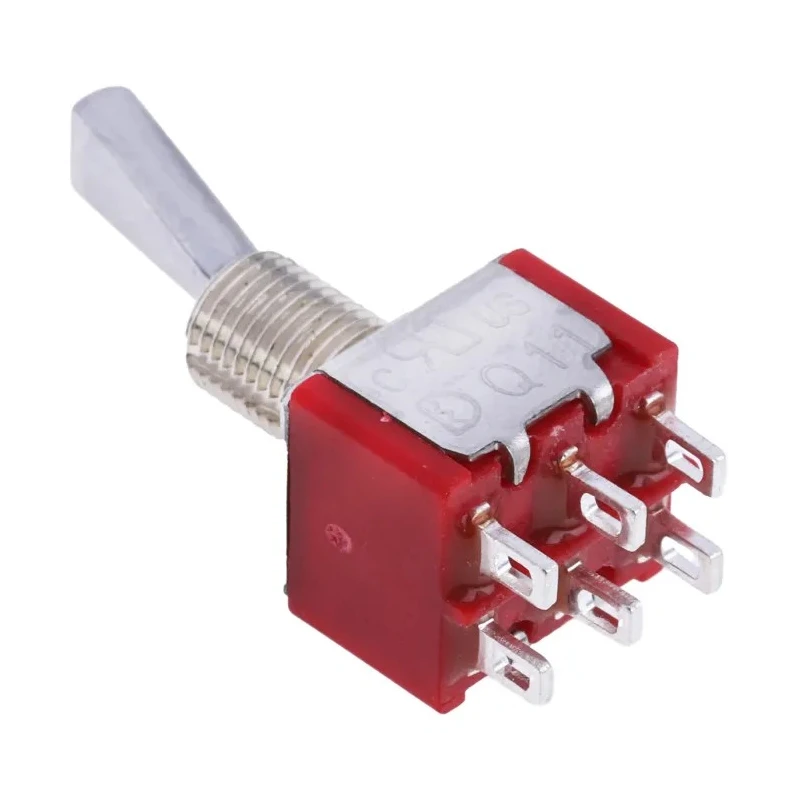

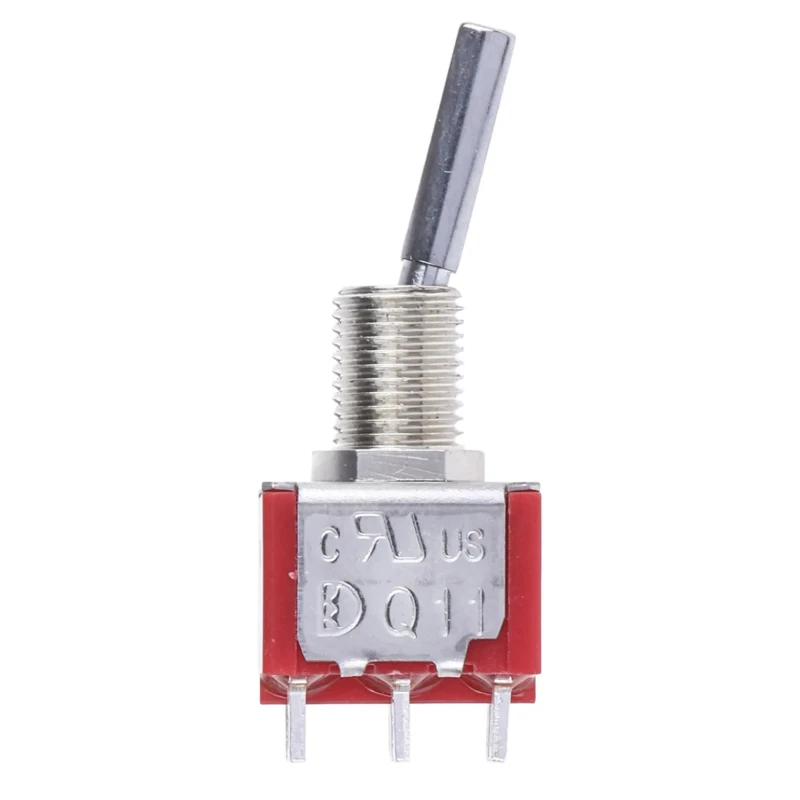

RS PRO Toggle Switch DPDT Panel Mount On-On Solder Terminal 28V DC 112V AC 5A Brass Actuator 394-419

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Toggle Switch DPDT Panel Mount On-On Solder Terminal 28V DC 112V AC 5A Brass Actuator 394-419

Name: RS PRO Toggle Switch DPDT Panel Mount On-On Solder Terminal 28V DC 112V AC 5A Brass Actuator 394-419
Brand: RS PRO
SKU: 86851
Price: 889.32 INR
Availability: InStock



Category Toggle Switch Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Model	394-419
Mount Type	Panel
Maximum Operating Temperature	85°C
Contact Configuration	DPDT
Switch Configuration	On-On
Minimum Operating Temperature	-30°C
Terminal type	Solder
Standards/Approvals	CSA, CE, UL, RoHS
Switch Operation	On-On
Actuator Length	12.3mm
Contact DC Voltage	28V dc
Switch Contact Current	5A
Mechanical Life	40000Cycles
Contact AC Voltage	112V ac
Actuator Material	Brass
2P on-on short flat lever toggle switchBrand	C & K

Key Features

Double Pole Double Throw (DPDT) switching enables versatile circuit control.
Panel mount design for secure integration into control panels and enclosures.
Solder terminal construction ensures stable and reliable connections.
Supports up to 5A at 28V DC and 112V AC for broad compatibility.
Chrome-plated brass actuator delivers smooth and durable operation.
Mechanical life rating of 40,000 cycles for longevity in demanding settings.
Wide operating temperature range from -30°C to +85°C.
Sealing boot and epoxy-sealed terminals protect against contamination.

Product Description

The RS PRO 394-419 is a high-quality DPDT toggle switch designed for panel mounting, offering reliable On-On switching capabilities for industrial, automation, and electrical control systems. This robust toggle switch features a double pole double throw contact configuration, allowing for two independent circuits to be switched simultaneously. The chrome-plated brass actuator ensures durability and provides a smooth, tactile operation suitable for repeated manual use.

With a rated switch contact current of 5A, the 394-419 toggle switch can handle both 28V DC and 112V AC, making it versatile for diverse voltage requirements in control panels and equipment. The solder terminal configuration provides secure, stable connections and accommodates typical PCB and wiring assembly processes. The actuator length of 12.3 mm facilitates easy actuation and integration within panel designs.

This device is built with a Diallyl Phthalate (DAP) case for enhanced protection and insulation, and incorporates silver contacts for consistent conductivity over its mechanical life span of 40,000 cycles. Additional engineering features include a sealing boot and epoxy-sealed terminals that protect the internal mechanism from dust, sand, liquids, and contamination during soldering, ensuring reliability and secure electrical performance.

The RS PRO DPDT toggle switch operates across a wide temperature range, from -30°C to +85°C, making it suitable for environments with demanding thermal conditions. The switch conforms to safety and compliance standards including CSA, CE, UL, and RoHS, supporting both industrial and laboratory installations where regulatory compliance is critical.

This toggle switch is ideal for use in control systems, instrumentation panels, manufacturing equipment, and commercial automation projects where robust switching and long service life are required. It performs reliably in applications such as HVAC controls, water treatment systems, machine controls, and electronics assembly, offering both flexibility and durability.
