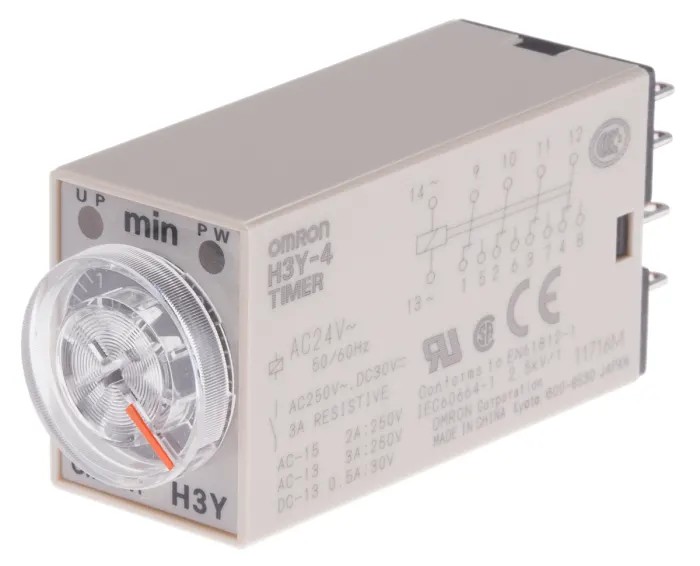

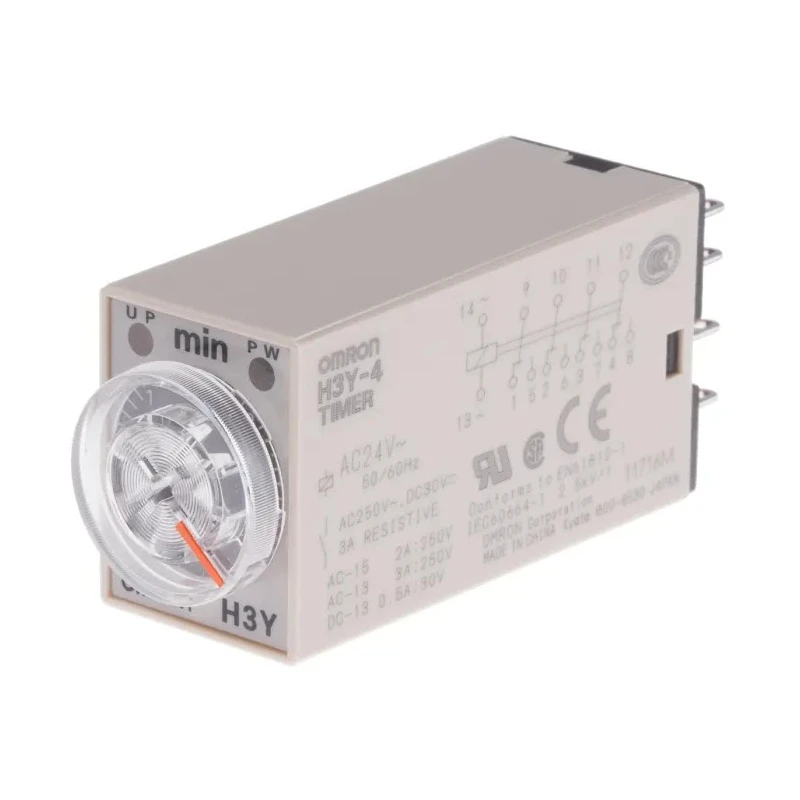

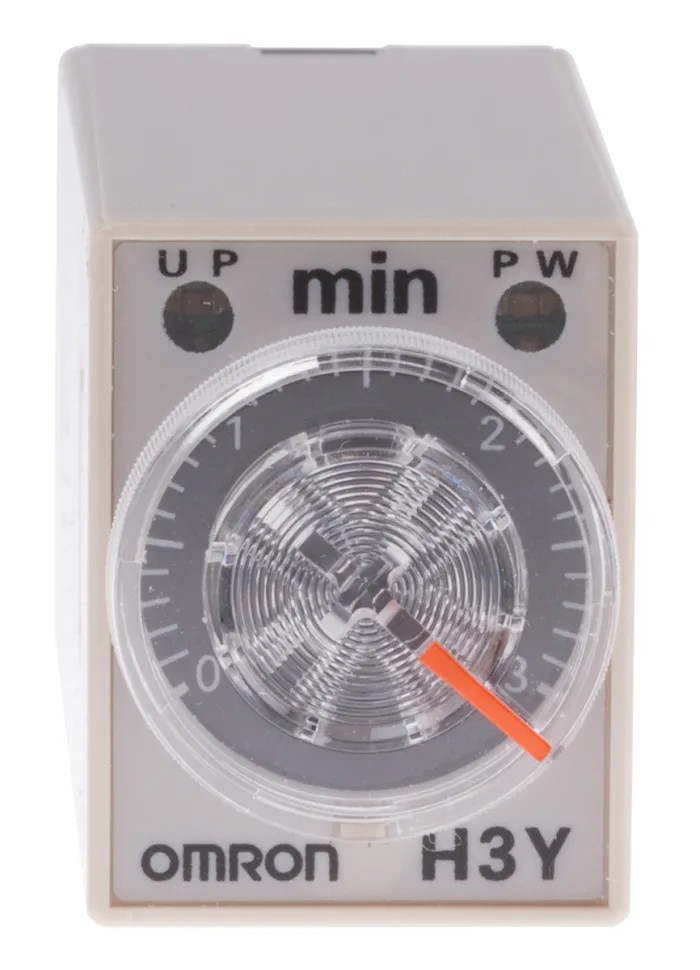

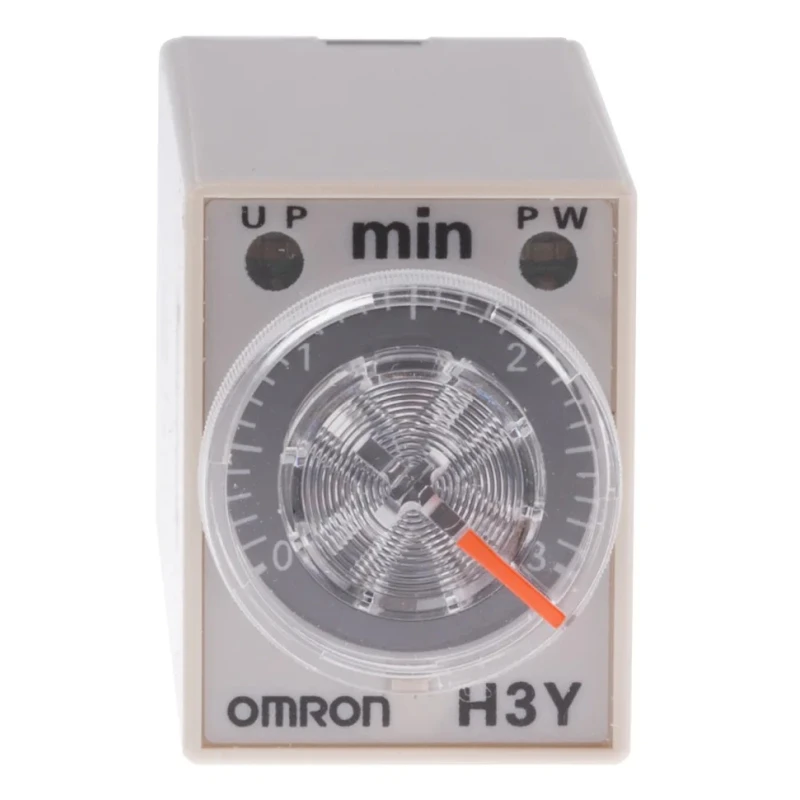

Omron DIN Rail Timer Relay 4-Contact 24V AC, 125V DC, 0.1–3 min ON Delay, 4PDT H3Y-4 AC24 3M

Free Delivery in India | Lowest Global Shipping Charges

Omron DIN Rail Timer Relay 4-Contact 24V AC, 125V DC, 0.1 - 3 min ON Delay, 4PDT H3Y-4 AC24 3M

Name: Omron DIN Rail Timer Relay 4-Contact 24V AC, 125V DC, 0.1 - 3 min ON Delay, 4PDT H3Y-4 AC24 3M
Brand: Omron
SKU: 86675
Price: 107.2 USD
Availability: InStock



Category Timer Relay Brand Omron Condition New

Specifications

Country of Origin	India
Brand	Omron
Height	63mm
Function	ON Delay
Length	28mm
Model	H3Y-4 AC24 3M
IP Rating	IP40
Mode	ON Delay
Width	21.5mm
Mount Type	DIN Rail
Series	H3Y-4
Maximum Operating Temperature	50°C
Contact Configuration	4PDT
Minimum Operating Temperature	-10°C
Time Range	0.1 to 3 min
Terminal type	Plug-In
Number of Contacts	4
Number of Timer Functions	1
Switching Voltage	250, 30V ac
Contact Current	5A
Supply DC Voltage	125 V dc
Supply AC Voltage	24V ac
EN 61812-1, IEC 60664-1, CE, CSA C22.2 No. 14, Lloyds, UL 508, CCC	GB/T 14048.5

Key Features

Suits DIN rail mounting for rapid integration in control panels.
Offers an adjustable ON delay from 0.1 to 3 minutes for versatile timing tasks.

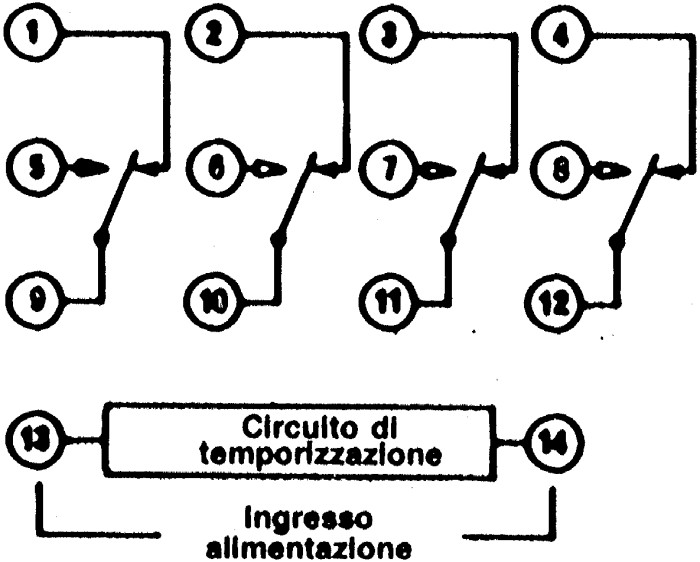

Supports 4 changeover contacts for multi-circuit control operations.
Compatible with 24V AC and 125V DC supply to accommodate different electrical standards.

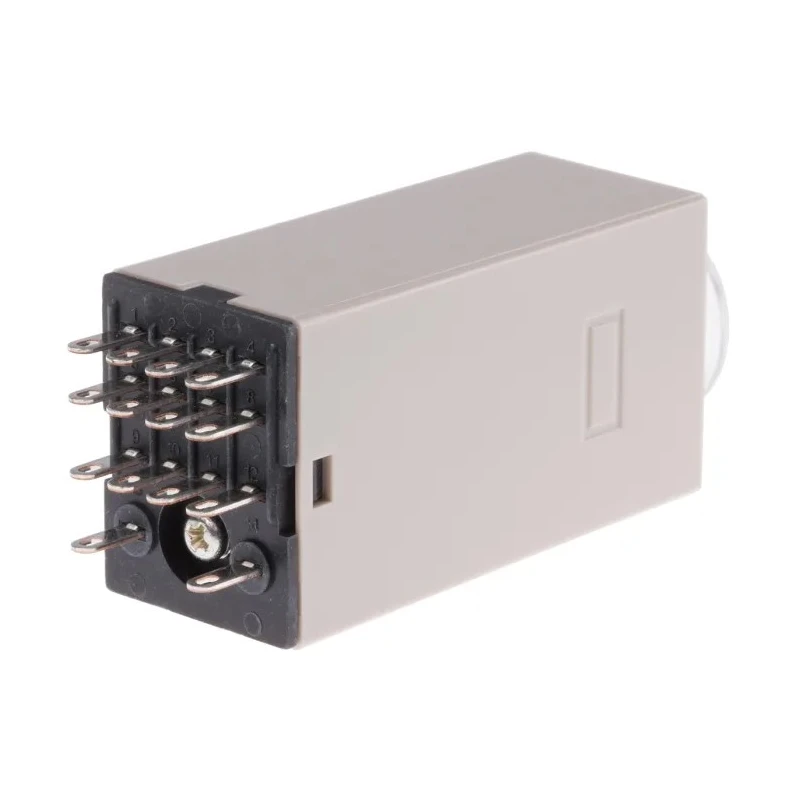

Plug-In terminal arrangement simplifies installation and replacement procedures.
Handles up to 5A contact current for medium-load switching capacity.
Maximum switching voltage up to 250V AC/30V DC for wider application compatibility.
Rated IP40, suitable for protected indoor settings with operating range from -10°C to 50°C.

Product Description

Omron H3Y-4 AC24 3M is an industrial DIN rail timer relay designed for reliable sequence and delay operations in automation panels and machinery. This relay provides an ON delay function ranging from 0.1 to 3 minutes, allowing precise timing for process control tasks. The relay operates with both 24V AC and 125V DC supply voltages, making it suitable for diverse electrical standards.

Its 4PDT (four pole double throw) contact configuration enables simultaneous switching of four circuits, ensuring comprehensive control in manufacturing, conveyor, material handling, and safety interlock applications. The unit achieves a maximum switching voltage of 250V AC and 30V DC, with contact current rated up to 5A, suitable for activation of motors, solenoids, or auxiliary equipment.

The device is engineered for convenient plug-in installation via DIN rail mounting and plug-in terminals, significantly reducing downtime during insertion or replacement. Its IP40 enclosure offers protection for indoor environments within a temperature range of -10°C to 50°C. This relay is commonly used for timed activation, delayed start, and interlock timing in production lines and industrial process control panels.

Applications include sequence control of conveyors, timed start of motors, delayed operation of machinery, and safety interlocking. The H3Y-4 AC24 3M is compliant with established electrical standards and carries international approvals including EN 61812-1, IEC 60664-1, CE, CSA, Lloyds, UL, and CCC.

With robust performance and ease of maintenance, Omron's relay model enhances efficiency in commercial automation, laboratory equipment, manufacturing systems, HVAC setups, and water treatment control.

Suits DIN rail mounting for rapid integration in control panels. Offers an adjustable ON delay from 0.1 to 3 minutes for versatile timing tasks. Supports 4 changeover contacts for multi-circuit control operations. Compatible with 24V AC and 125V DC supply to accommodate different electrical standards.

Plug-In terminal arrangement simplifies installation and replacement procedures. Handles up to 5A contact current for medium-load switching capacity. Maximum switching voltage up to 250V AC/30V DC for wider application compatibility.

Rated IP40, suitable for protected indoor settings with operating range from -10°C to 50°C. Explore more Timer Relays and advanced automation components from Omron in the Electronics & Electricals category on EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The timer relay offers an adjustable ON delay ranging from 0.1 to 3 minutes, allowing for versatile timing tasks in automation applications.

This model features a 4PDT (four pole double throw) contact configuration, enabling the simultaneous control of four circuits.

It is compatible with a supply voltage of 24V AC and 125V DC, accommodating various electrical standards.

The maximum switching voltage is 250V AC and 30V DC, allowing for a wide range of applications.

The relay can handle a contact current of up to 5A, suitable for medium-load switching operations.

The dimensions of this timer relay are 63mm in height, 28mm in length, and 21.5mm in width.

It has an IP40 rating, making it suitable for protected indoor environments.

The operating temperature range is from -10°C to 50°C, allowing it to function effectively in various conditions.

This model is designed for DIN rail mounting, facilitating rapid integration into control panels.

It features a plug-in terminal arrangement, which simplifies installation and replacement procedures.

It is compliant with several international standards including EN 61812-1, IEC 60664-1, CE, CSA, Lloyds, UL, and CCC.

This timer relay is commonly used for timed activation, delayed start, and interlock timing in production lines and industrial process control panels.
