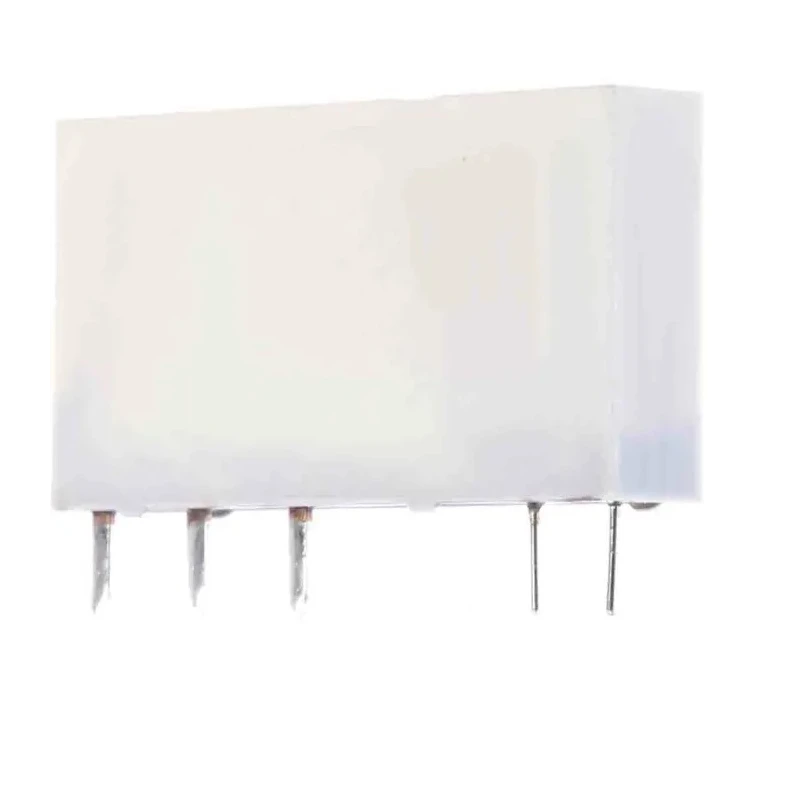

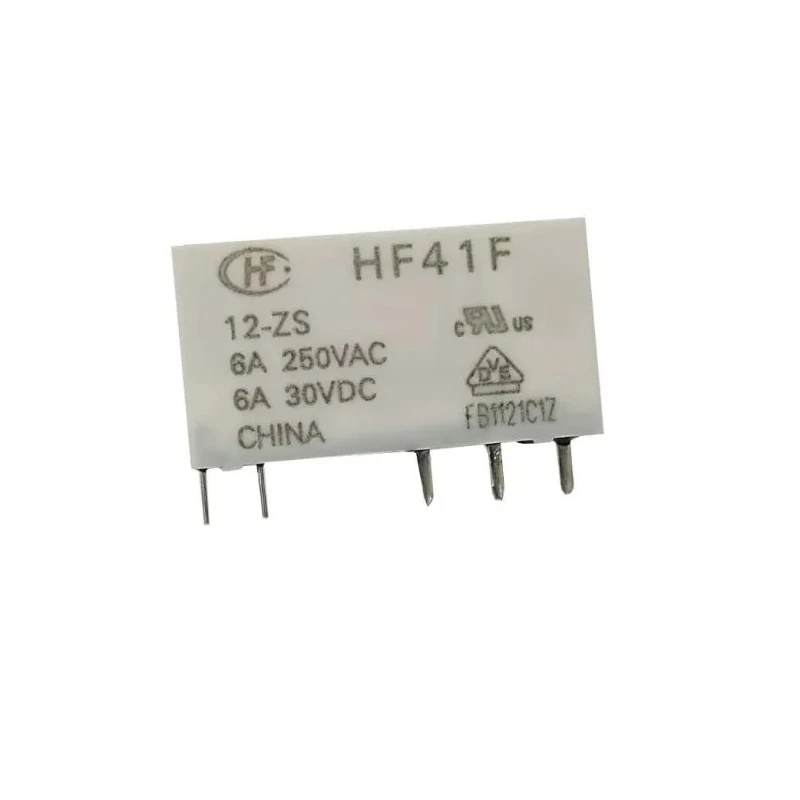

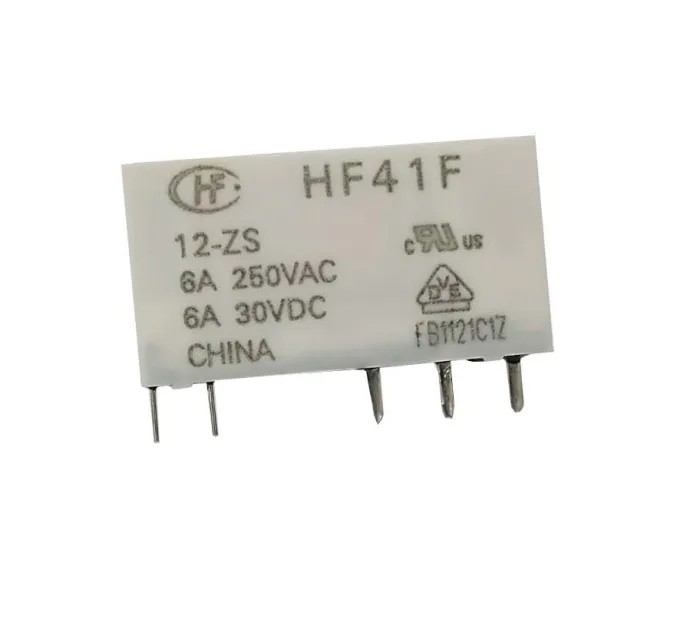

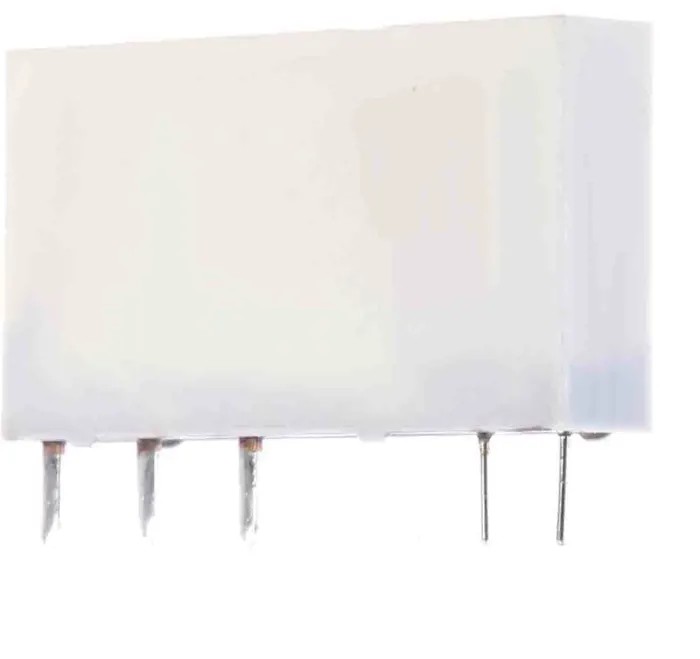

RS PRO PCB Power Relay, 12V DC Coil, 6A Switching Current, SPDT, Silver Alloy Contacts 0476634P

RS PRO PCB Power Relay, model 0476634P, is an industrial-grade, non-latching relay engineered for reliable electrical switching in a compact form factor. Featuring a single pole double throw (SPDT) contact configuration, this relay enables flexible switching of circuits with a maximum switching current of 6A and is driven by a 12V DC coil voltage. The relay uses high-quality silver alloy contacts, ensuring consistent performance and long-term durability, especially advantageous in demanding industrial and commercial PCB applications.

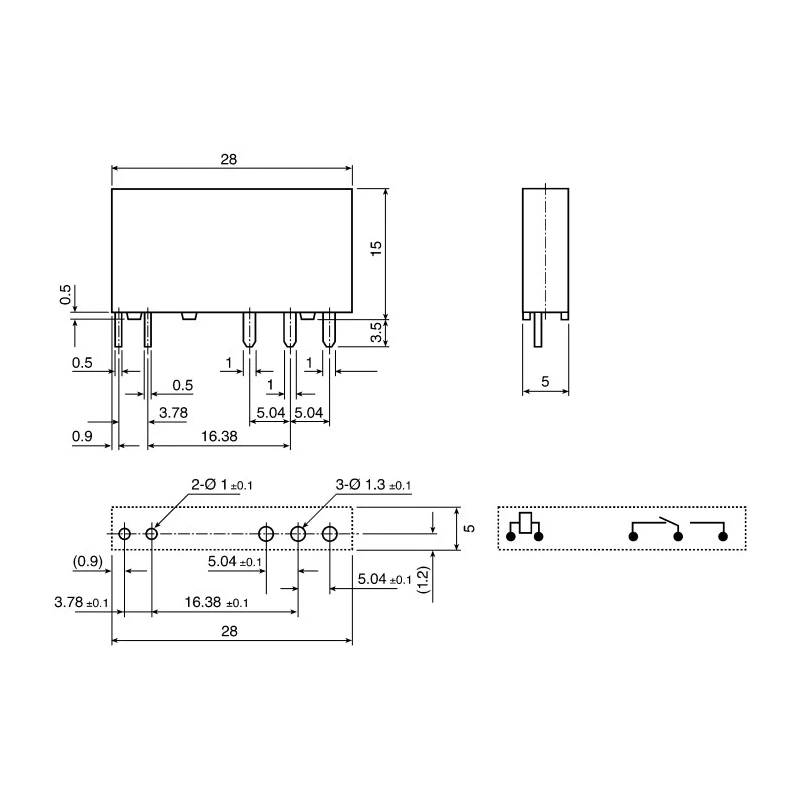

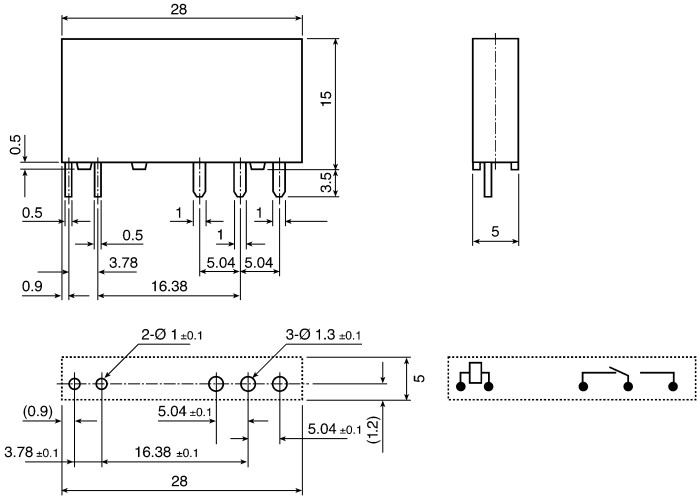

Designed for PCB mounting, this relay’s solder terminal type provides secure and efficient installation onto standard printed circuit boards. Its slim 5mm width, 28mm length, and 15mm height allow integration into space-limited assemblies. The relay is RoHS compliant and constructed to meet rigorous safety standards (UL94 V-0 flammability), making it suitable for environments requiring high dielectric strength and robust insulation.

The relay achieves a switching power capacity up to 1.5kVA and is rated for both AC and DC voltages, with a maximum switching voltage of 125V AC and 125V DC. Operating reliably within a wide ambient temperature range from -40°C to +85°C, the relay provides dependable performance across diverse conditions, including industrial machinery, automotive electronics, medical equipment, and telecommunications systems. Additionally, vibration resistance from 10Hz to 55Hz ensures stable operation in installations subject to mechanical disturbances.

The coil resistance of 848Ω and coil power rating of 170mW optimize control circuit efficiency, supporting energy-saving PCB designs. The relay is wash tight and flux proof, further enhancing its suitability for automated production environments with stringent cleanliness requirements. Contact resistance is rated at 100mΩ, and the relay's construction ensures reliable switching under repeated use.

This model is engineered for applications including circuit protection, signal switching, power control, and automated device interfacing. Its environmentally friendly design supports both industrial and household installations where reliable and robust switching is essential.
