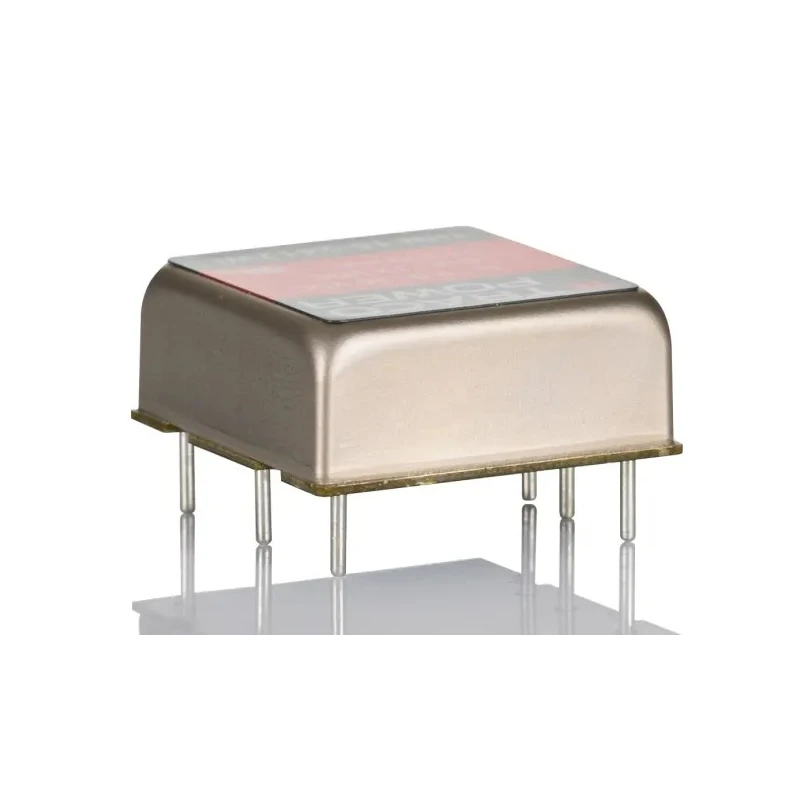

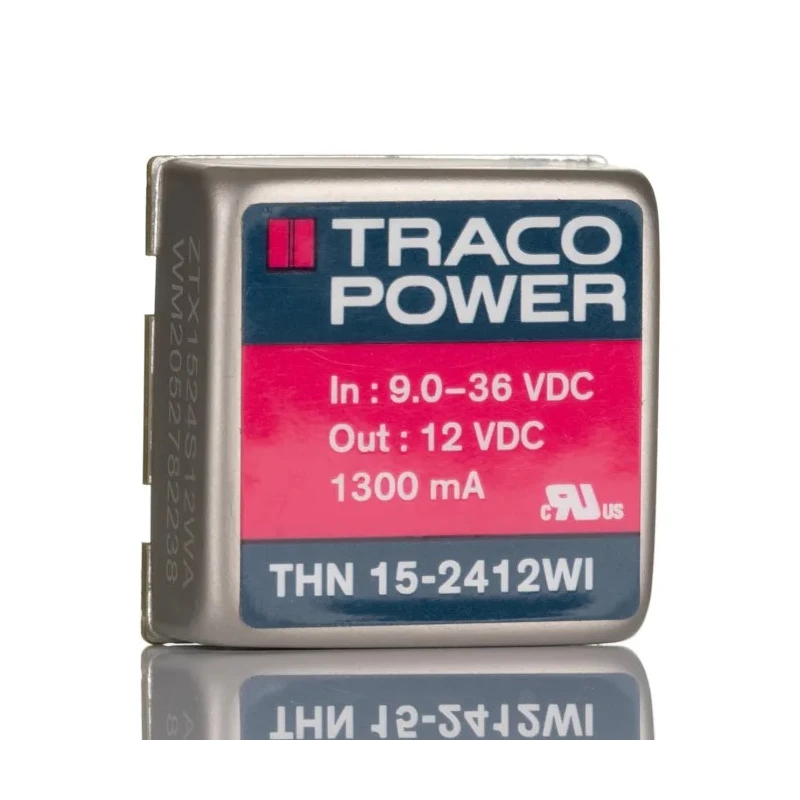

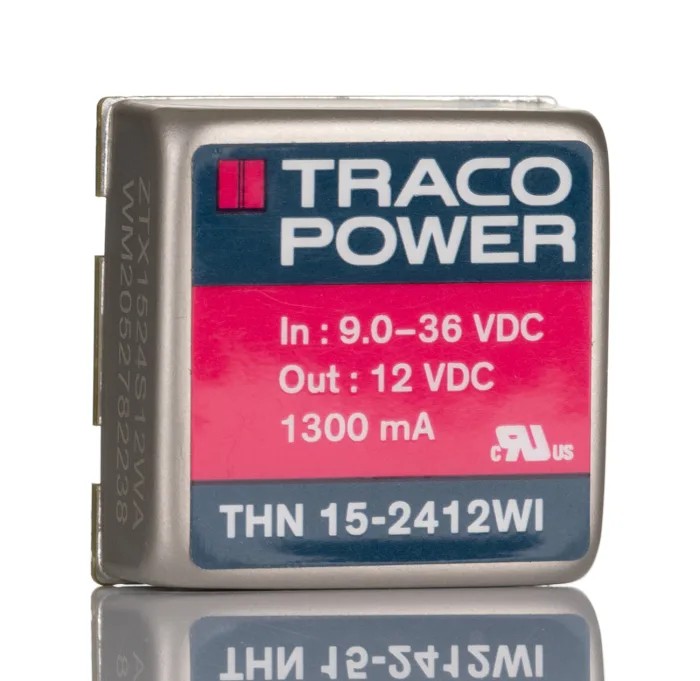

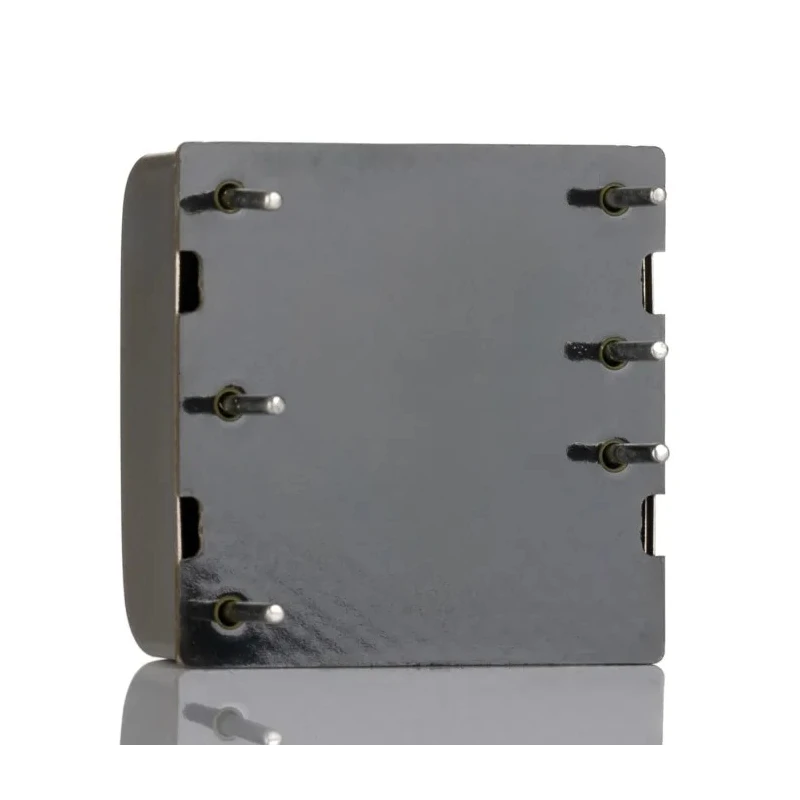

TRACOPOWER DC/DC Converter Through Hole 15W 12V DC Output 1.3A, 4:1 Input Ratio, Adjustable 10.8 - 13.2V, 9 - 36V THN 15-2412WI

TRACOPOWER THN 15-2412WI DC/DC Converter is a high-performance, compact power conversion module specifically engineered for industrial, instrumentation, mobile, and telecommunications applications. Designed for space-constrained electronic systems, this converter delivers a stable 12V DC output at up to 1.3A continuous current, making it ideal for powering sensitive circuit blocks and battery-backed devices.

The module features a versatile input range of 9V to 36V DC, allowing seamless integration with a variety of distributed power architectures and mobile platforms. Its output voltage is adjustable from 10.8V to 13.2V DC, enabling precise voltage regulation to suit device requirements. The converter's shielded metal case with insulated baseplate ensures excellent EMI suppression and thermal management, supporting free-air convection cooling without the need for additional heatsinks.

Robust electrical protection is built in, including continuous short-circuit protection and overvoltage tripping, safeguarding both the converter and downstream components against surges and fault conditions. High isolation voltage of 1.6kV DC further enhances safety for sensitive electronics. With its MTBF of 1,400,000 hours, the THN 15-2412WI delivers reliable, long-term service in demanding industrial environments.

Physical dimensions of 25.4mm × 25.4mm × 9.9mm allow the module to occupy minimal PCB real estate, reducing board size and BOM complexity. Through hole mounting supports high mechanical integrity and easy production integration. Operating reliably from -40°C to +85°C, this converter is suitable for harsh field conditions and professional grade installations.

The converter achieves 87% operating efficiency and includes a Pi filter on inputs for low-ripple performance (100 mVp-p). It is well suited to industrial control systems, data and communication networks, mobile instrumentation, and distributed power systems requiring energy-efficient, compact DC/DC conversion.

12V DC output, 1.3A continuous rating, for versatile circuit powering. Wide 4:1 input voltage range (9 - 36V DC) supports flexible supply integration. Output voltage adjustable (10.8V - 13.2V DC) for custom regulation. Shielded metal case, insulated baseplate, 6-pin through hole form factor.

Short-circuit and overvoltage protection; isolation voltage 1.6kV DC. MTBF 1.4 million hours ensures reliability in critical systems. Efficient operation (87%), low thermal load, free-air convection cooling. Industrial, mobile, telecom, instrumentation and distributed power use cases.
