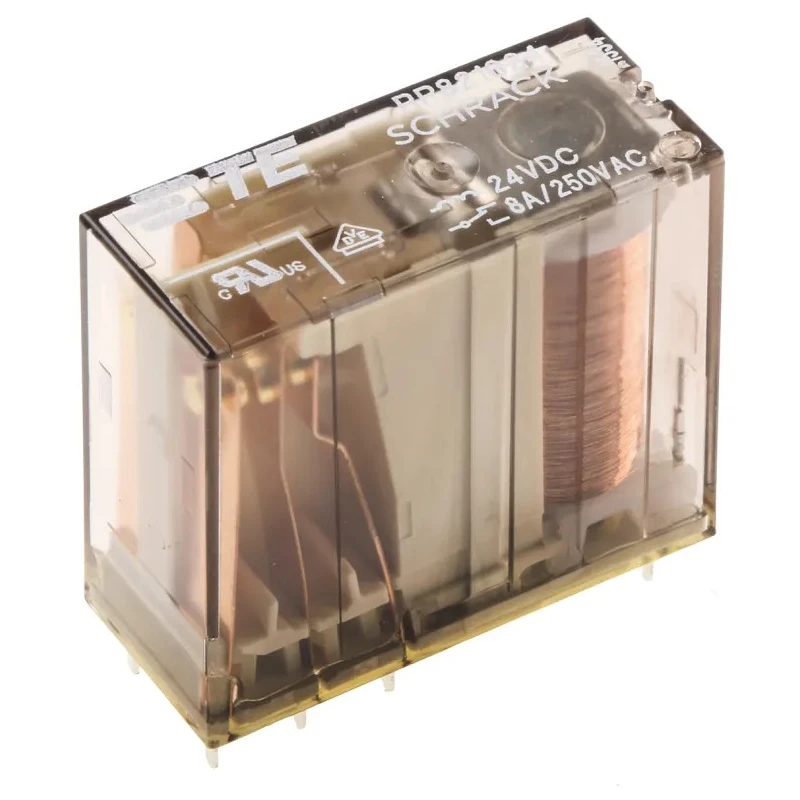

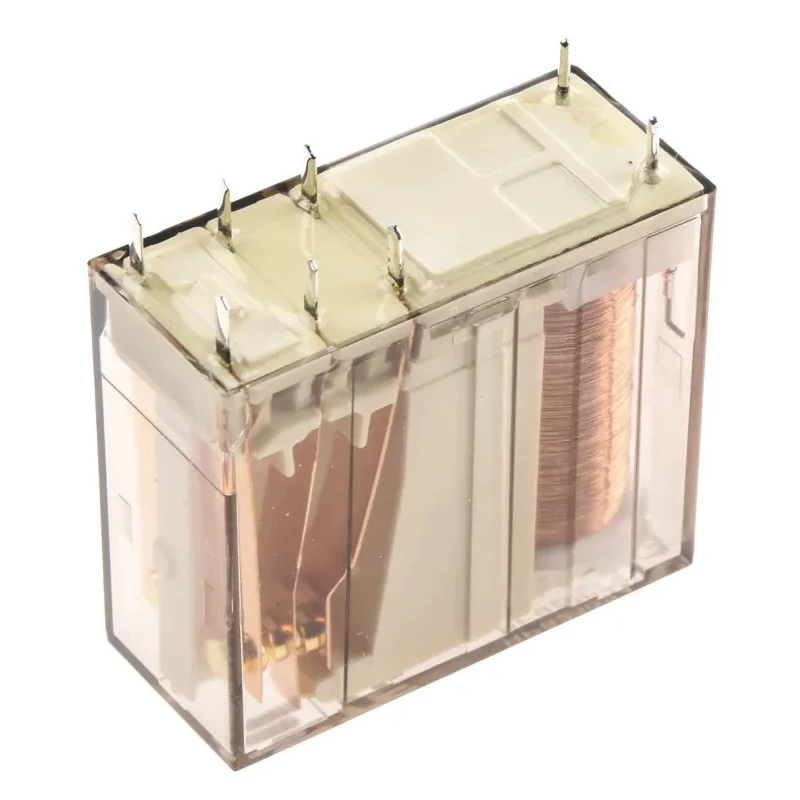

TE Connectivity PCB Non-Latching Relay DPDT, 24V DC Coil, 8A Switching Current, 400V AC, Silver Alloy Contacts RP821024

TE Connectivity RP821024 is a high-quality PCB non-latching relay, part of the PRII series, featuring versatile DPDT (Double Pole Double Throw) contacts and a 24V DC coil voltage. Engineered for demanding industrial and electronic switching applications, this relay provides robust performance and reliable operation in environments requiring frequent switching and isolation.

The relay offers an impressive 8A switching current rating, with a maximum switching voltage of 400V AC, making it suitable for power control, signal switching, and automation circuits. Silver alloy contact material delivers long-term conductivity, reduces contact resistance, and improves switching reliability.

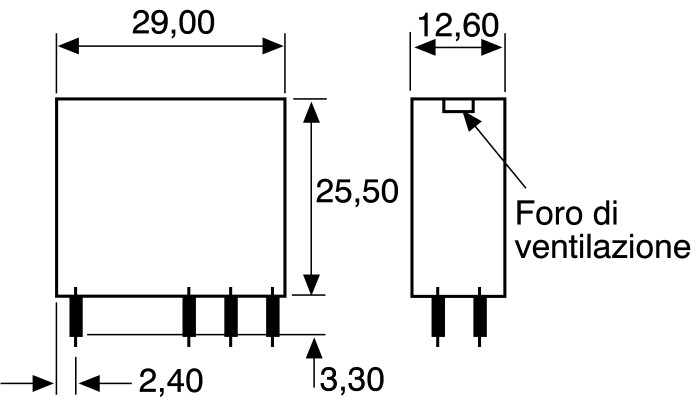

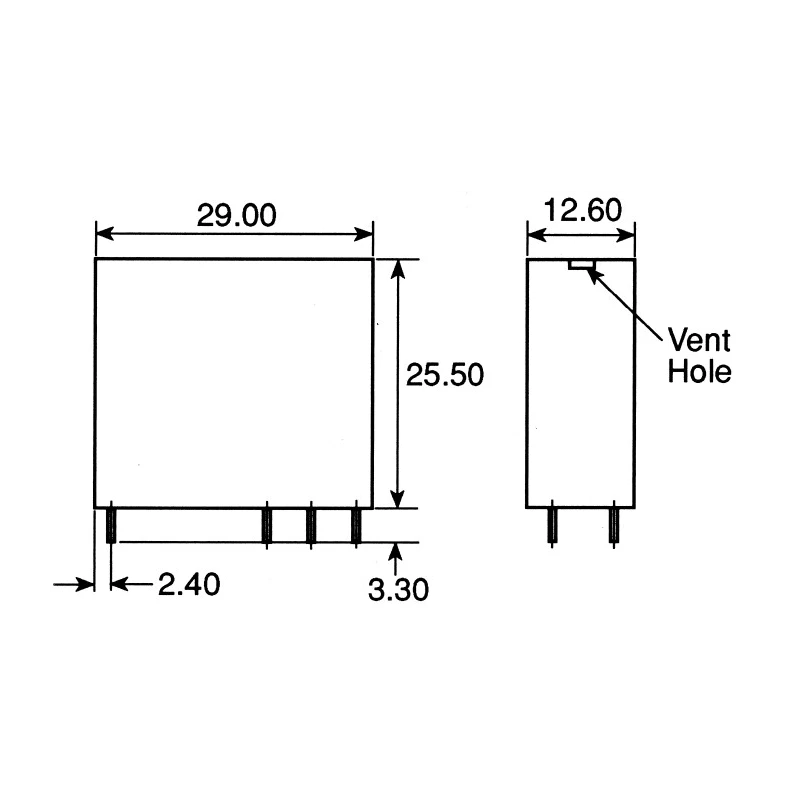

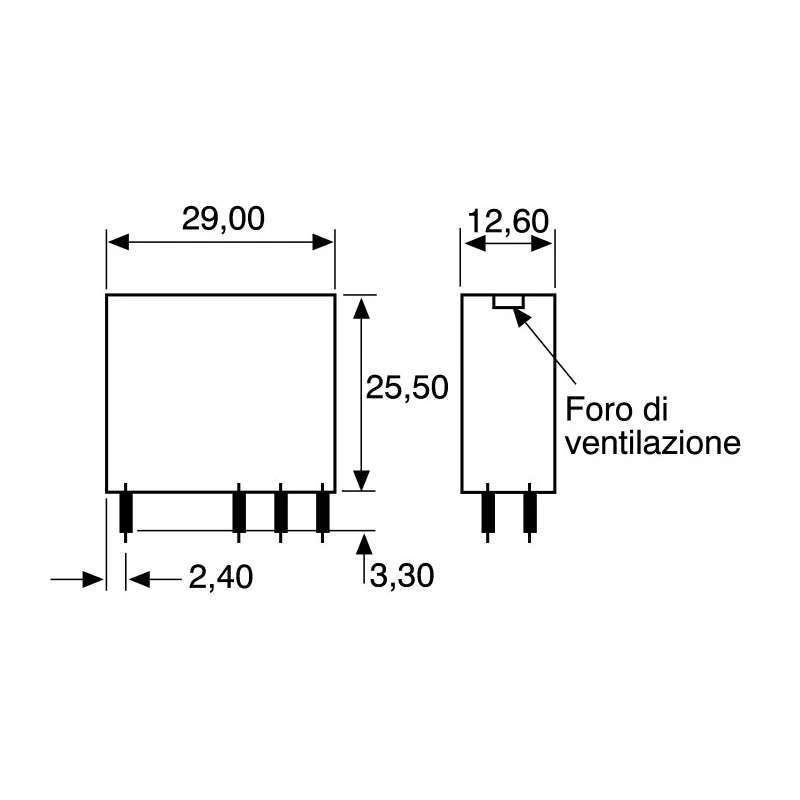

Its compact form factor, measuring 29mm in length, 12.6mm in width, and 25.5mm in height, facilitates easy installation onto standard printed circuit boards (PCB) using solder terminals. The relay's coil resistance is rated at 1.1kΩ and coil power at 500mW, contributing to electrical efficiency with stable actuation over a wide voltage range.

Designed for durability and safe operation, the RP821024 relay supports an operating temperature range from -40°C to 70°C and includes an 8mm creepage and clearance distance, ensuring compliance with VDE and cULus safety standards. Its construction follows PRII series guidelines, making it compatible with industrial, laboratory, automation, and domestic equipment.

The DPDT configuration allows multiple circuits to be switched simultaneously, suitable for power supply design, heating control systems, and electronic automation. Additional approvals from VDE and cULus highlight conformity to international standards.

PCB non-latching relay designed for DPDT switching applications. Operates with a 24V DC coil voltage for efficient control. Rated for 8A switching current with 400V AC maximum switching voltage. Silver alloy contact material ensures reliable conductivity and durability.

Compact dimensions: 29mm length, 12.6mm width, 25.5mm height. Wide operating temperature range from -40°C to 70°C. Solder terminal type and PRII series construction for secure PCB mounting. Coil resistance: 1.1kΩ and coil power: 500mW.

Creepage and clearance distance of 8mm for safety compliance. Approved standards include VDE and cULus.

Industrial applications include power supply units, heating controls, automation panels, and domestic equipment. The TE Connectivity brand ensures robust engineering, proven reliability, and compatibility with global standards. Explore further automation relays and industrial switching solutions within the Power Relays category at EnvMart.
