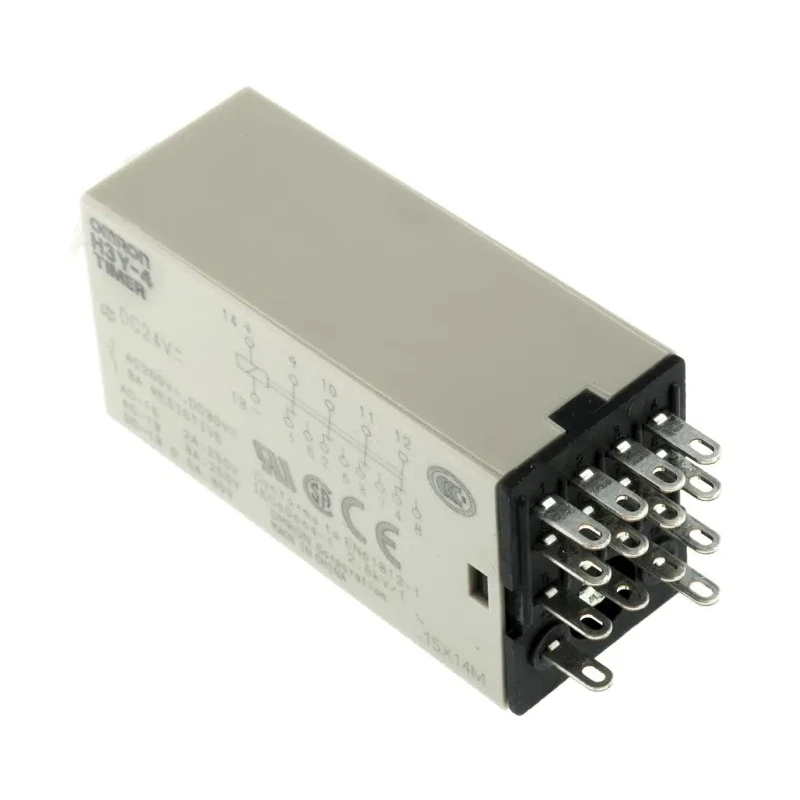

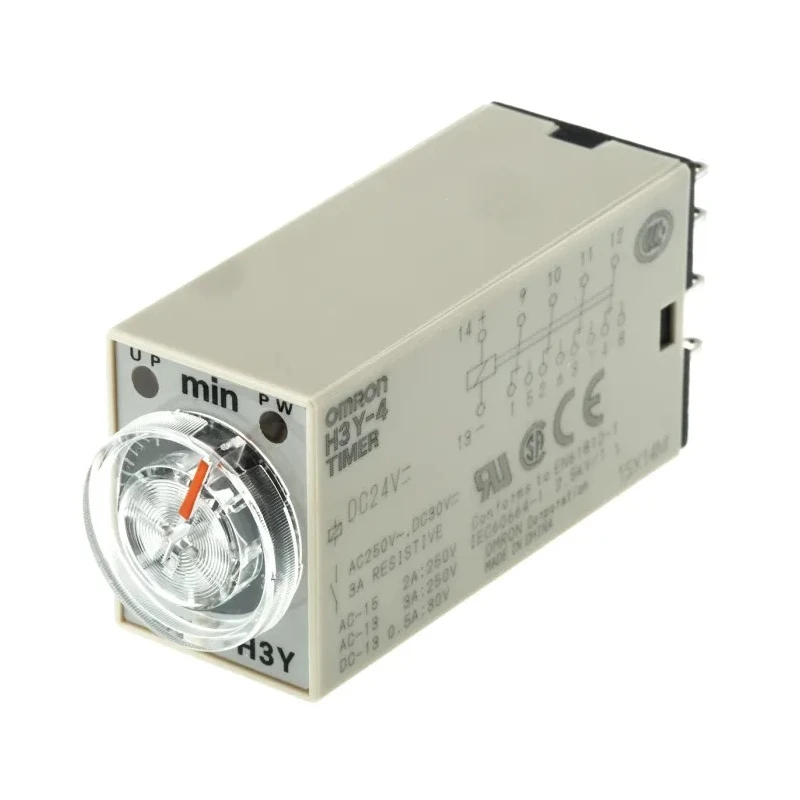

Omron DIN Rail Timer Relay, 4-Contact, 24V AC/DC, 0.1 - 3 min Adjustable, 4PDT, Plug-In, IP40 H3Y-4 DC24 3M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 63mm |
| Function | Offset Double Ring End |
| Length | 28mm |
| Model | H3Y-4 DC24 3M |
| IP Rating | IP40 |
| Mode | ON Delay |
| Width | 21.5mm |
| Mount Type | DIN Rail |
| Series | H3Y-4 |
| Maximum Operating Temperature | 50°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -10°C |
| Time Range | 0.1 to 3 min |
| Terminal type | Plug-In |
| Number of Contacts | 4 |
| Number of Timer Functions | 1 |
| Switching Voltage | 30, 250V dc |
| Contact Current | 5A |
| Supply DC Voltage | 24 V |
| Supply AC Voltage | 24V ac |
| Standards/Approvals Lloyds, CSA C22.2 No. 14, IEC 60664-1, CE, UL 508, CCC | GB/T 14048.5, EN 61812-1 |
Key Features
- Offers 4PDT (Four-Pole Double-Throw) contact arrangement for simultaneous multi-circuit switching.
- Supports both 24V AC and 24V DC supply inputs for versatile integration.
- Features ON Delay function with plug-in terminals for easy DIN rail mounting and rapid maintenance.
- Contact current rating of 5A and switching up to 250V AC or 30V DC for robust circuit control.
- IP40 enclosure suitable for protected electrical panels and control cabinets.
- Adjustable time range from 0.1 to 3 minutes enables precise timing for sequencing and interlocks.
- Operates reliably in temperatures from -10°C to 50°C for industrial environments.
- Ideal for production line sequencing, motor control interlocks, PLC timing adjuncts, and alarm suppression.
Product Description
The Omron H3Y-4 DC24 3M DIN rail timer relay is engineered for precise time-based control in industrial automation panels. With flexible supply options accepting both 24V AC and 24V DC, this plug-in relay integrates seamlessly into a wide range of control circuits, offering adjustable delays from 0.1 to 3 minutes.
Equipped with a 4PDT contact arrangement, the relay enables simultaneous independent switching of up to four circuits - making it ideal for applications requiring coordinated timing and multi-circuit automation. The ON Delay operating mode delivers controlled signal output after a set interval, supporting functions such as delayed start, process sequencing, and safety interlocks.
Its plug-in terminals simplify maintenance and replacement, while DIN rail mounting ensures fast, tool-less installation in modern control cabinets. The robust IP40 enclosure is designed for protected environments and ensures operational reliability. Rated for 5A contact current and capable of switching up to 250V AC and 30V DC, the relay drives both auxiliary and main loads effectively. The wide temperature tolerance of -10°C to +50°C guarantees dependable performance in demanding industrial conditions.
Key technical features include a compact design (28mm x 21.5mm x 63mm), single timer function, and plug-in connection for hassle-free servicing. Applications span production line sequencing, motor control cabinet interlocks, PLC timing augmentation, delayed actuation of pneumatic and hydraulic valves, signal alarm management, and time-controlled processes in electrical and mechanical installations.
Standards and approvals ensure compatibility with international safety and quality requirements, including Lloyds, CSA, IEC, CE, UL, CCC, and EN certifications. The relay is frequently used in manufacturing, automation, and building management systems for critical timing operations.
4PDT contact arrangement for synchronized control of four circuits. Adjustable time delay from 0.1 to 3 minutes. Supports 24V AC and 24V DC input for flexible system integration. Plug-in terminals and DIN rail mount simplify installation and servicing.
Robust IP40 enclosure for panel safety. Operating range: -10°C to 50°C. Rated for switching up to 250V AC or 30V DC and 5A contact current. Ideal for industrial automation, sequencing, interlocks, timed alarms, and PLC enhancements.
Explore other Timer Relays and industrial automation solutions in the Relays & Contactors category from Omron on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The timer relay has an adjustable time range from 0.1 to 3 minutes, allowing for precise timing control in various applications.
It features a 4PDT (Four-Pole Double-Throw) contact arrangement, enabling simultaneous independent switching of up to four circuits.
This model supports both 24V AC and 24V DC supply inputs, providing flexibility for integration into various control systems.
The contact current rating is 5A, allowing it to control both auxiliary and main loads effectively.
It is capable of switching up to 250V AC or 30V DC, making it suitable for robust circuit control.
The relay has an IP40 enclosure rating, which is suitable for protected environments such as electrical panels and control cabinets.
It operates reliably within a temperature range of -10°C to 50°C, suitable for various industrial environments.
This timer relay is designed for DIN rail mounting, which allows for fast, tool-less installation in control cabinets.
It features plug-in terminals that simplify maintenance and replacement, enhancing ease of use.
This timer relay is ideal for applications such as production line sequencing, motor control interlocks, and PLC timing adjuncts.
It complies with several standards including Lloyds, CSA, IEC, CE, UL, CCC, and EN certifications, ensuring compatibility with international safety and quality requirements.
The dimensions of the relay are 28mm in length, 21.5mm in width, and 63mm in height, making it compact for various installations.
