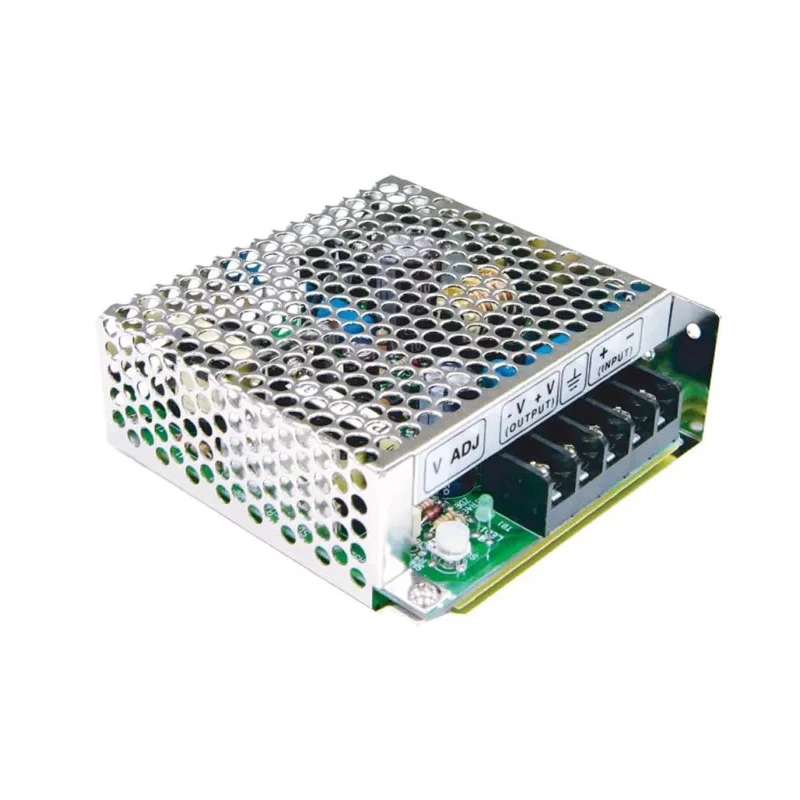

MEAN WELL SD-25C-24 DC-DC Converter, Chassis Mount, 24V DC Output, 36V - 72V DC Input, 26.4W, 1.1A, 60°C Max
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters MEAN WELL SD-200 DC/DC Converter, 24V dc/, 72V dc |
| Brand | MEAN WELL |
| Efficiency | 81% |
| Length | 99mm |
| Model | SD-25C-24 |
| Depth | 36mm |
| Gross Weight | 380g |
| Width | 97mm |
| Mount Type | Chassis Mount |
| Series | SD-200 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| MTBF | 377500h |
| Number of outputs | 1 |
| Ripple and Noise | 150mV Pk-Pk |
| Maximum Output Power | 26.4W |
| Maximum Input Voltage | 72V dc |
| Standards/Approvals | EN |
| Minimum Input Voltage | 36V |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 0A |
| Output Voltage Adjustment Range | 5.5 V |
| Isolation Voltage | 1.5kV ac |
| Output Current 2 | 1.1A |
| Input Ratio | 2:1 |
| Input Ratio 2 | 1 |
| Wide 2 | 1 input voltage range |
Key Features
- Provides regulated 24V DC output from a 36V - 72V DC input range.
- Capable of 26.4W maximum output power and 1.1A output current.
- Features an adjustable output with low ripple and noise at 150mV peak-to-peak.
- Mounts easily on chassis for industrial or laboratory environments.
- Delivers high reliability with an MTBF of 377,500 hours and input/output isolation of 1.5kV AC.
- Supports safe operation from -10°C to +60°C ambient temperature.
- Includes short circuit, overload and overvoltage protection for enhanced safety.
- Highly efficient at 81% and includes power-on LED indicator.
Product Description
The MEAN WELL SD-25C-24 is a single-output, enclosed DC-DC converter specifically engineered for industrial, laboratory and automation applications requiring reliable DC voltage transformation. This compact converter takes a wide 2:1 input voltage range (36V to 72V DC) and delivers a regulated 24V DC output, supporting up to 26.4W maximum power at an output current of 1.1A. Its chassis-mount design and screw terminal connections ensure fast, secure integration into panels and enclosures.
This model provides an adjustable output voltage with minimal ripple and noise (150mV peak-to-peak), supplying clean power to sensitive electronics and embedded systems. The internal safety features include short circuit, overload and overvoltage protection, as well as a robust 1.5kV AC isolation voltage between input and output circuits for noise and fault isolation.
Manufactured to meet demanding operating environments, the SD-25C-24 delivers high reliability, with an MTBF of 377,500 hours (MIL-HDBK-217F, 25°C) and operates efficiently (up to 81%) over a wide thermal span. The converter functions from -10°C up to 60°C, making it ideal for machinery, instrumentation, remote automation panels, and telecommunications applications. The high efficiency reduces thermal buildup in tight enclosures, and adjustable voltage output accommodates varying load conditions.
This device is easy to deploy with its chassis-mount form and industry-compatible footprint (99mm length × 97mm width × 36mm depth), saving control cabinet space. The integrated LED provides power-on indication for simple diagnostics. As part of the robust MEAN WELL SD-200 Series, it adheres to international standards (EN) and features screw-terminal inputs and outputs for fast, secure wiring.
Applications for the SD-25C-24 include process automation, test and measurement stands, remote I/O modules, industrial control systems, data communications, and embedded computing. Its comprehensive protection suite and industrial build make it a reliable choice for DC voltage regulation and isolation in harsh or mission-critical environments.
Explore the full range of DC-DC Converters or browse more MEAN WELL solutions in the Converters category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is 36V to 72V DC.
It provides a maximum output power of 26.4W.
This unit delivers a regulated output voltage of 24V DC with an output current of 1.1A.
The dimensions of this model are 99mm in length, 97mm in width, and 36mm in depth.
The efficiency of the SD-25C-24 is rated at 81%.
It operates within a temperature range of -10°C to 60°C.
This unit includes short circuit, overload, and overvoltage protection for enhanced safety.
It features a chassis mount design for easy installation.
The ripple and noise for the output is specified at 150mV peak-to-peak.
The isolation voltage between input and output circuits is 1.5kV AC.
It is suitable for applications in process automation, test and measurement stands, and industrial control systems, among others.
The MTBF for the SD-25C-24 is 377,500 hours.
