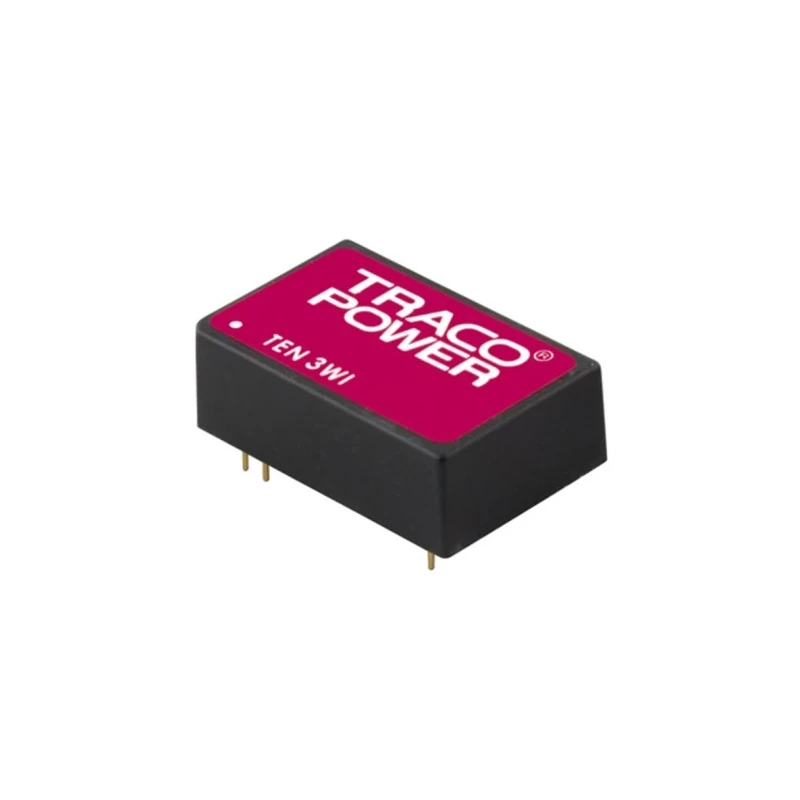

TRACOPOWER Isolated DC/DC Converter TEN 3-2423WI, 15V/-15V Output, 100mA, 36V Input, 9V Min, 3W, Through Hole, -40°C to 85°C

The TRACOPOWER TEN 3-2423WI Isolated DC/DC Converter is designed for demanding electronic and industrial applications requiring reliable dual output voltages. This device delivers +15V and -15V outputs at up to 100mA each, with a wide input range spanning from 9V to 36V DC. Its 3W output capability makes it well-suited for battery-operated equipment, distributed power architectures, communication systems, instrumentation, and industrial electronics.

Engineered in a compact DIP-24 package with an industry-standard footprint, the TEN 3-2423WI facilitates easy integration onto PCBs via through-hole mounting. The converter’s robust isolation voltage of 1.5kV DC provides effective galvanic isolation, which is crucial for protecting sensitive circuits from power surges and ensuring operational safety. With 8 pins, this dual-output module can support both single and dual channel configurations without additional external filtering.

Efficiency is a key trait, with up to 80% DC/DC conversion, helping minimize heat production and supporting extended use across the full operating temperature range of -40°C to 85°C. The converter incorporates full SMD design, contributing to its excellent MTBF rating of 1,000,000 hours for reliable long-term operation in complex systems and industrial environments.

Designed to meet stringent EMI performance standards, the TEN 3-2423WI complies with EN 55022, Class A and FCC Level A requirements. Its built-in EMI input filter negates the need for external filters, simplifying system design. The fully lead-free and RoHS-compliant construction supports environmental compliance and sustainable engineering practices.

With a wide 4:1 input ratio and indefinite short-circuit protection, the converter is highly adaptable to fluctuating voltage conditions and offers robust protection for connected circuits. Applications include industrial controls, instrumentation, communication interfaces, and battery-based systems that demand stable and reliable voltage outputs.

Industrial, laboratory, and manufacturing contexts benefit from the device’s extended operating temperature capability, high isolation, and long-life reliability. The TRACOPOWER TEN 3-2423WI is particularly suitable for integration into distributed power architectures where safety, stability, and efficient power conversion are critical.
