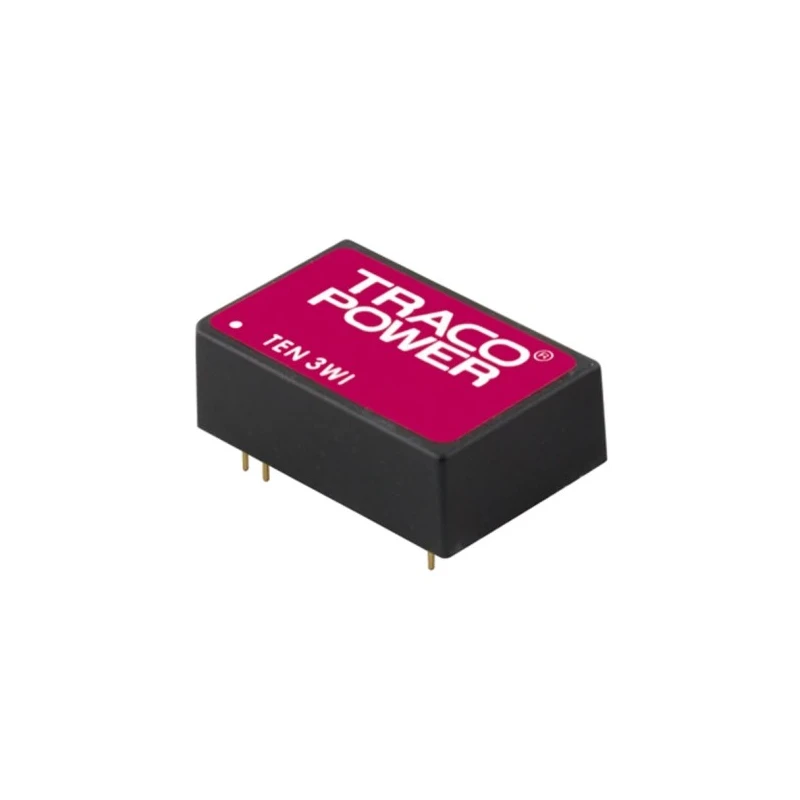

TRACOPOWER DC/DC Converter 12V, -12V Output 125mA, 18 - 75V Input 3W Through Hole TEN 3-4822WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEN 3WI DC/DC Converter, 12V dc/ 125 mA |
| Brand | TRACOPOWER |
| Efficiency | 82% |
| Length | 32mm |
| Model | TEN 3-4822WI |
| Depth | 10.2mm |
| Width | 20mm |
| Mount Type | Through Hole |
| Series | TEN 3WI |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| MTBF | 1000000h |
| Number of outputs | 2 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 75V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 8 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 125mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 4:1 |
| Output Voltage 2 | -12V dc |
| Input Ratio 4 | 1 |
| Ultra-wide 4 | 1 input range |
Key Features
- Dual regulated output voltages of 12V and -12V DC with 125mA maximum current per channel.
- Ultra-wide input voltage range from 18V to 75V DC enables versatile deployment.
- Rated 3W maximum output power suitable for industrial and instrumentation use.
- Robust through-hole design simplifies PCB mounting and enhances vibration resistance.
- High efficiency up to 82% reduces heat generation and improves reliability.
- Comprehensive isolation voltage of 1.5kV for secure circuit separation.
- Extended operating temperature range from -40°C to 85°C for demanding environments.
- MTBF of 1,000,000 hours ensures long operational lifetime in continuous-service applications.
Product Description
TRACOPOWER TEN 3-4822WI is a high-performance DC/DC converter designed for demanding industrial and electronic applications requiring stable, regulated dual output voltages. This converter delivers 12V and -12V outputs at up to 125mA each, supporting sensitive instrumentation, communication, and control devices.
With its ultra-wide input voltage range of 18V to 75V DC, the TEN 3-4822WI accommodates a broad array of supply voltages, making it ideal for systems where power source flexibility is vital. The maximum output power of 3W enables efficient support for moderate loads, while the converter's high efficiency - up to 82% - minimizes thermal stress and maximizes energy utilization.
The unit features a robust through-hole mounting design, facilitating solid physical installation and reliable electrical connections in PCB assemblies subjected to vibration or shocks. Electrical isolation up to 1.5kV DC further protects sensitive subsystems and allows safe integration across different potential domains.
Engineered for reliability, the converter operates from -40°C to 85°C, handling extreme ambient conditions in industrial, instrumentation, and battery-powered environments. Its MTBF of 1,000,000 hours underscores suitability for continuous-service roles where low maintenance and high uptime are essential.
Other technical highlights include dual output regulation, excellent load and line regulation, indefinite short-circuit protection, and a full SMD internal design for enhanced reliability. The package measures 32mm in length, 20mm in width, and 10.2mm in depth, allowing for compact circuit board integration.
Dual regulated outputs: 12V and -12V DC at 125mA each. Ultra-wide input range (18V - 75V DC). Maximum output power of 3W. Through-hole design suitable for industrial PCB applications. Electrical isolation: 1.5kV DC. MTBF: 1,000,000 hours, extended operation temperature: -40°C to +85°C.
High efficiency reduces heat dissipation. Ideal for industrial, instrumentation, battery-powered devices, and communication systems. Explore additional DC-DC Converters and industrial power solutions from TRACOPOWER and other leading brands in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides dual regulated output voltages of 12V and -12V DC, with a maximum current of 125mA for each channel.
It has an ultra-wide input voltage range from 18V to 75V DC, accommodating various supply voltages.
The maximum output power is rated at 3W, suitable for moderate load applications.
It features a high efficiency of up to 82%, which helps to reduce heat generation.
The dimensions are 32mm in length, 20mm in width, and 10.2mm in depth, allowing for compact integration on circuit boards.
It utilizes a through-hole mounting design, which enhances its stability in PCB assemblies.
The isolation voltage is rated at 1.5kV DC, providing secure circuit separation.
It operates within an extended temperature range of -40°C to 85°C, making it suitable for demanding environments.
The mean time between failures (MTBF) is 1,000,000 hours, indicating suitability for continuous-service applications.
This unit provides two outputs, delivering both 12V and -12V DC.
It is designed for industrial and instrumentation applications, as well as communication and control devices.
The TRACOPOWER TEN 3-4822WI is manufactured in Taiwan.
