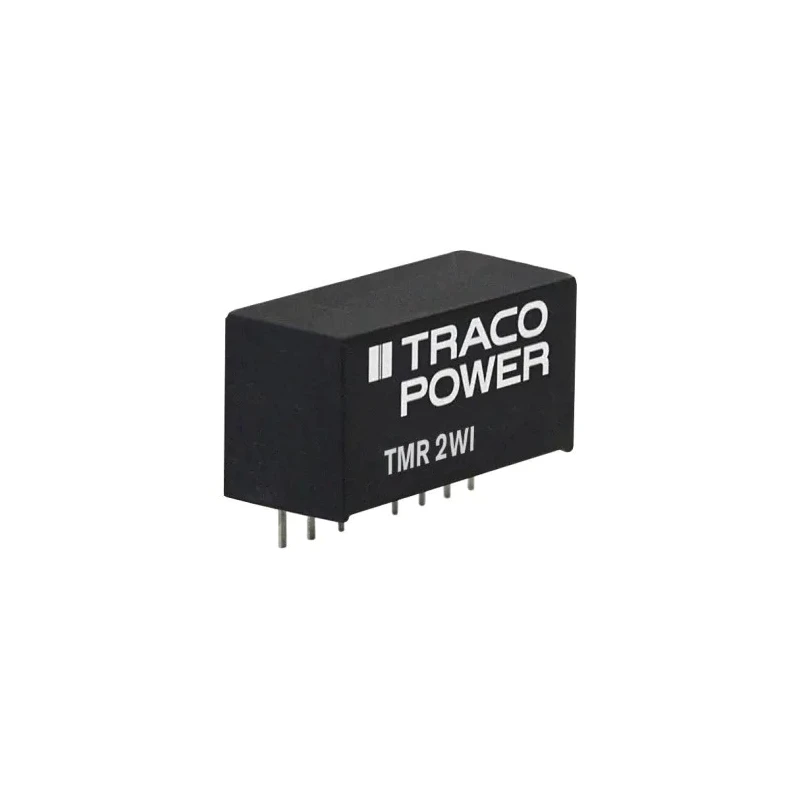

TRACOPOWER DC-DC Converter 15V/−15V Output, 67mA, 36V DC Max Input, 2W, Through Hole, SIP-9, -40°C to 85°C TMR 2-2423WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TMR 2WI DC/DC Converter, 15V dc/ 67 mA |
| Brand | TRACOPOWER |
| Efficiency | 79% |
| Length | 26mm |
| Model | TMR 2-2423WI |
| Depth | 12.5mm |
| Mount Type | Through Hole |
| Series | TMR 2WI |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP-9 |
| Minimum Operating Temperature | -40°C |
| MTBF | 1200000h |
| Number of outputs | 2 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 36V dc |
| Short Circuit Protection | Continuous |
| Minimum Input Voltage | 9V |
| Number of Pins | 7 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 67mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 4:1 |
| Output Voltage 2 | -15V dc |
| Input Ratio 4 | 1 |
| Ultra-wide 4 | 1 input voltage range |
Key Features
- Provides regulated dual ±15V DC outputs with a maximum current of 67mA.
- Maximum output power of 2W suitable for compact electronics and signal isolation applications.
- Mounts via a SIP-9 through hole package, offering easy integration into PCB design.
- High isolation voltage of 1.5kV DC between input and output for enhanced safety.
- Offers efficient operation with up to 79% typical conversion efficiency.
- Robust design rated for continuous short-circuit protection and remote On/Off control.
- Reliable performance from −40°C to 85°C operating temperature, ideal for industrial use.
Product Description
The TRACOPOWER TMR 2-2423WI is a compact, high-efficiency DC-DC converter specifically engineered for demanding industrial and electronic applications requiring reliable dual power rails. With regulated dual outputs of +15V and −15V DC at up to 67mA, this module offers stable signal or low power supply for sensors, instrumentation, and mixed signal circuits.
Supporting an ultra-wide input voltage range of 9V to 36V DC (4:1 input ratio), the TMR 2-2423WI can accept fluctuations in input power, making it ideal for battery-operated, remote, or field devices. The converter delivers a total output power of 2W and achieves up to 79% conversion efficiency.
Its SIP-9 through hole package facilitates easy installation onto standard PCBs, while the 1.5kV DC input-output isolation protects sensitive electronics from transients and ground loops. Remote On/Off control and continuous short-circuit protection add further operational flexibility.
Reliability is backed by an MTBF of 1,200,000 hours. Operation without derating is possible across a wide temperature span from −40°C up to +85°C, allowing the converter to withstand tough environments in industrial, laboratory, automation, and communication settings.

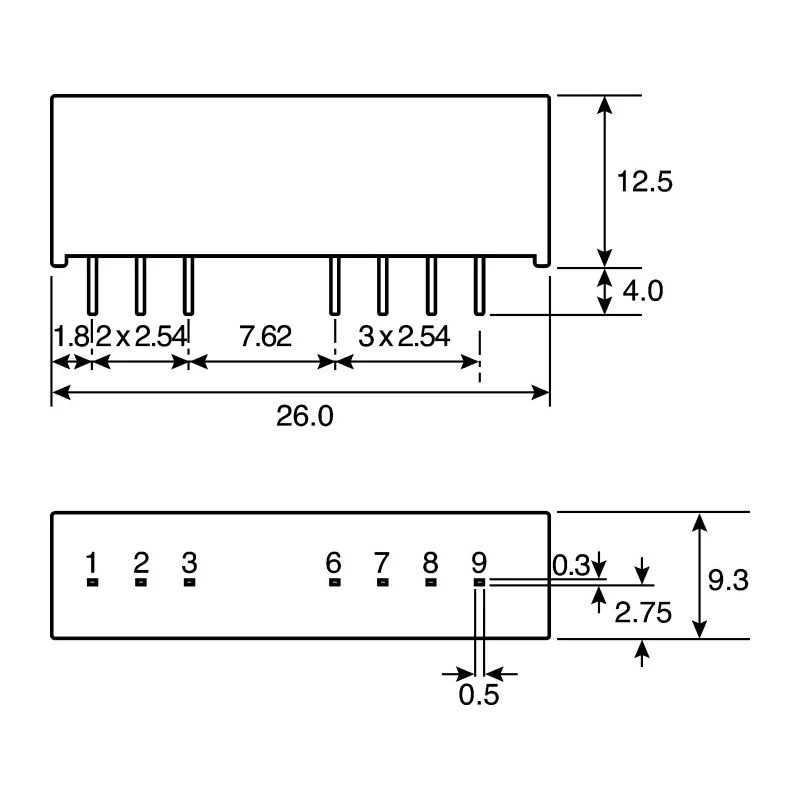

The built-in EMI filter meets EN 55022 and FCC standards, Level A, enabling interference-free integration. Its compact SIP-9 footprint (26mm x 12.5mm) suits space-constrained installations and offers two output channels for powering dual supply loads or isolated signal circuits.
Typical applications include signal conditioning, sensor supply, instrument isolation, industrial controls, and embedded systems requiring robust DC isolation, regulated dual voltage rails, and consistent quality performance.
Explore advanced DC-DC Converters and related power solutions in the EnvMart Electronics & Electricals category or browse further products from TRACOPOWER.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 2W.
It supports an ultra-wide input voltage range of 9V to 36V DC.
This converter provides regulated dual outputs of +15V and -15V DC.
It has a typical conversion efficiency of up to 79%.
The isolation voltage between input and output is 1.5kV DC.
It operates reliably within a temperature range of -40°C to +85°C.
This model features two outputs.
It is designed with a SIP-9 through hole package for easy integration into PCBs.
It includes continuous short-circuit protection for enhanced operational safety.
The mean time between failures (MTBF) is rated at 1,200,000 hours.
The dimensions are 26mm in length and 12.5mm in depth.
It is suitable for applications such as signal conditioning, sensor supply, and industrial controls requiring dual voltage rails.
