TRACOPOWER DC/DC Converter 12V/-12V Dual Output, 625 mA, 9 - 36V Input, 15 W, PCB Mount, 1.5kV Isolation, High TEN 15-2422WI

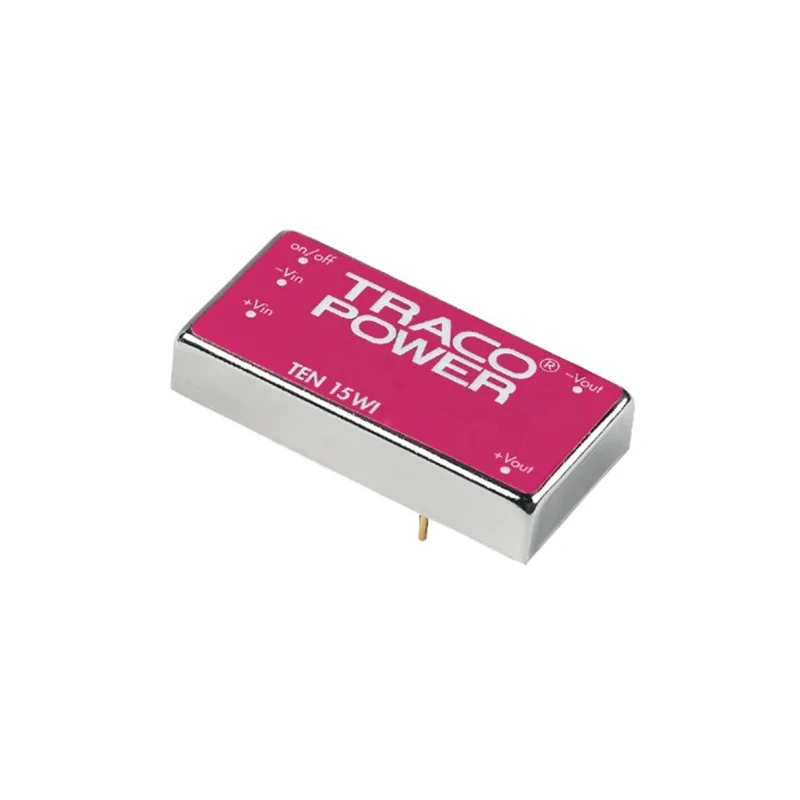

TRACOPOWER TEN 15-2422WI DC/DC Converter is a compact, high-performance solution for converting DC power in electronic assemblies. This module is engineered with dual output voltages of +12V and -12V DC, supporting up to 625 mA per output channel, making it suitable for powering sensitive electronic devices and circuits requiring stable dual rails.

Featuring a wide input voltage range of 9V to 36V DC, the converter seamlessly accommodates varying supply sources typical in industrial environments, telecommunication centers, and engineering workshops. With a maximum output power of 15 W and an efficiency rating of 85%, it minimizes heat generation, eliminating the need for a heatsink or fan under standard conditions.

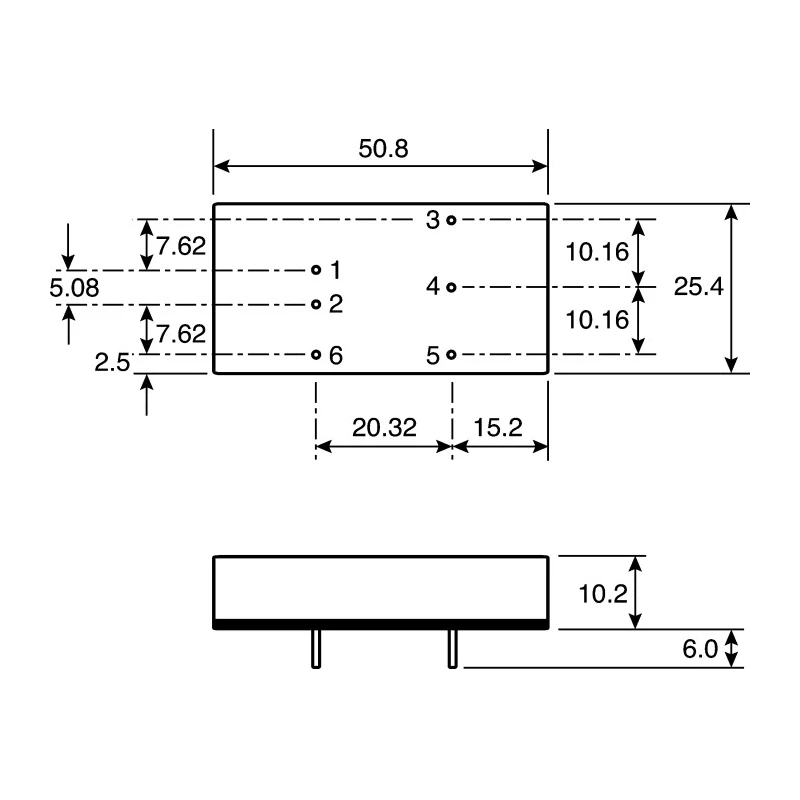

The converter's robust isolation voltage of 1.5 kV DC protects both incoming and outgoing circuits, providing excellent safety and noise immunity in systems where isolation is critical. The PCB mount, surface package, and small footprint (25.4 mm length by 50.8 mm width by 10.2 mm depth) facilitate easy integration into densely populated boards.

Designed to withstand extreme environmental conditions, operation is guaranteed between -40°C and +85°C, ensuring reliability in telecommunication centers, industrial automation setups, and engineering workshops. Indefinite short-circuit protection and high mean-time-between-failures (MTBF) of 700,000 hours further underscore its suitability for long-duty applications.

The unit's dual output supports powering two components or circuit sections simultaneously, while its low line and load variation (≤0.5% and ≤1%, respectively) means precise control over output voltage and current, aiding sensitive applications.

Key features include dual output voltages, high isolation, compact PCB-mountable package, wide input voltage range, great efficiency, and a sturdy design for extreme temperatures.

Common applications for this converter include telecommunication equipment, industrial automation electronics, and engineering test platforms. Additional standards compliance and protection features make it a popular choice for technical installations where stability and safety are paramount.
