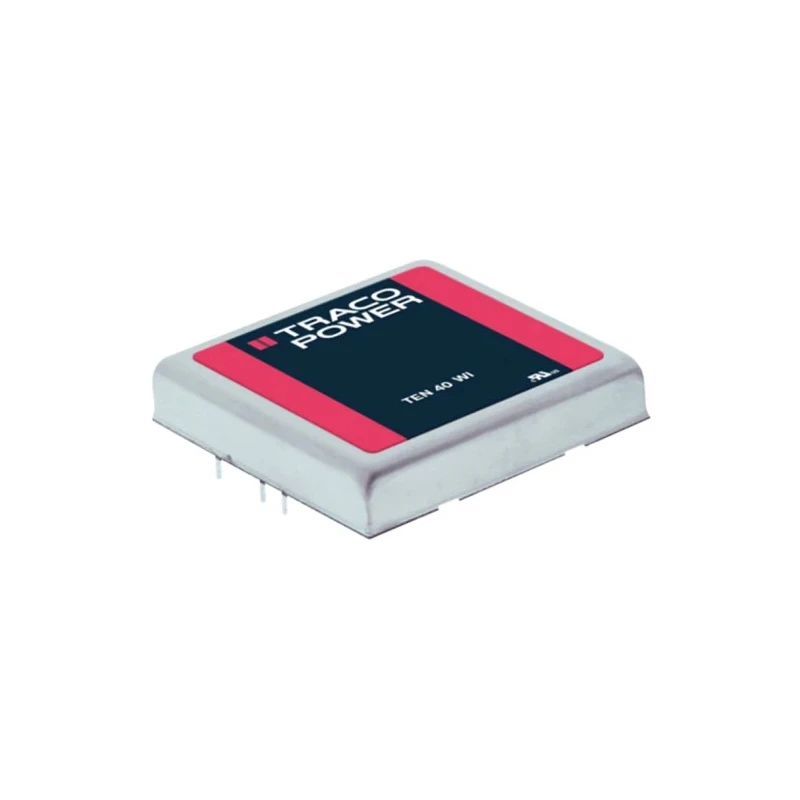

TRACOPOWER TEN 40-2423WI DC/DC Converter, 15V Output, ±1.35A Dual Output, 36V/9V Input, 40W, Through Hole, -40 to 85°C

TRACOPOWER TEN 40-2423WI DC/DC Converter is a high-performance industrial power conversion module designed to provide reliable dual voltage outputs. This converter features a regulated ±15V output, delivering up to 1.35A per channel for demanding electronics, communication systems, and industrial applications. Its ultra-wide input voltage range of 9 V to 36 V supports battery-operated and distributed power architectures.

The TEN 40-2423WI offers a maximum output power of 40 W within a compact and robust through-hole 8-pin metal package, measuring 50.8 x 10.2 mm. With a high efficiency of 86 percent, it handles challenging thermal conditions and ensures optimal energy utilization, while maintaining performance across the full operating temperature range from -40 to 85 degrees Celsius.

The module provides superior isolation with a 1.5 kV input/output voltage barrier, ensuring electrical safety in sensitive environments. Built-in features include remote on/off control, under-voltage lockout, and comprehensive protection circuitry against over-voltage, over-temperature, and short circuits. The shielded metal case with insulated baseplate enhances EMC and mechanical durability, suitable for laboratory, commercial, and industrial installations.

Additional technical highlights include a 4:1 ultra-wide input ratio, MTBF rated at 660,000 hours, adjustable output voltage ±10 percent, and compliance with UL, EN, and IEC safety standards (up to 60 VDC input SELV limit). This converter is ideal for powering sensitive analog circuits, distributed telecom equipment, and embedded control boards.

The TEN 40-2423WI is typically used in battery-operated devices, distributed power architectures, telecom, instrumentation, laboratory electronics, and industrial control systems, offering robust power reliability and high-density packaging.

Offers ±15V dual output for versatile applications. Supports up to 1.35A output current per channel. Wide 4:1 input voltage range from 9 V to 36 V. High efficiency rated at 86 percent. Compact through-hole mount and robust 8-pin metal case.

Isolation voltage of 1.5 kV for electrical safety. Operating temperature range from -40°C to 85°C. Ensures short-circuit, over-voltage, and over-temperature protection. MTBF up to 660,000 hours for extended reliability. Browse the TRACOPOWER DC-DC Converter category on EnvMart for more industrial-grade power conversion modules.
