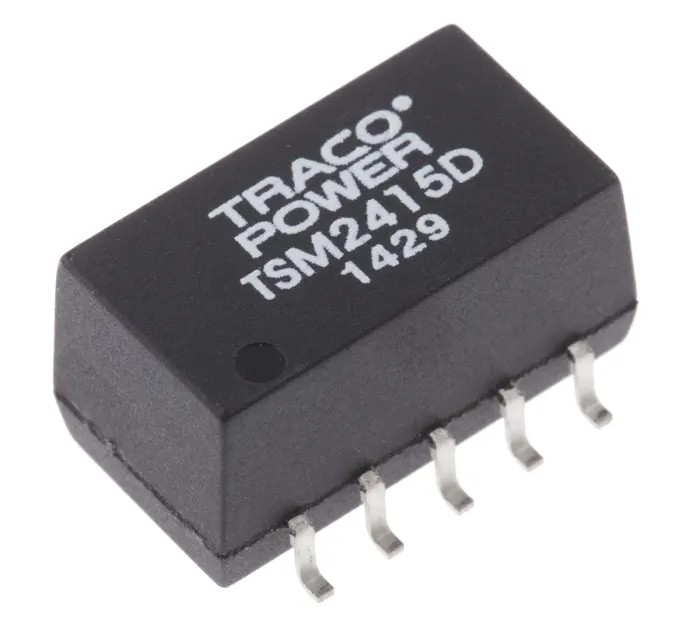

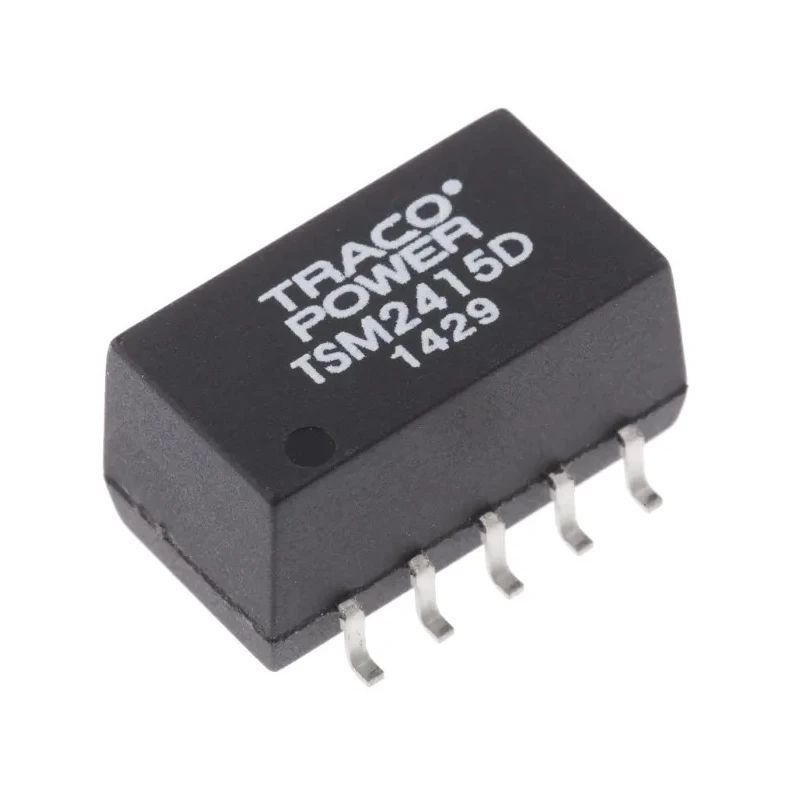

TRACOPOWER DC/DC Converter 1 W, Surface Mount, Dual Output, 15V/-15V, 33 mA, 26.4V Input, TSM 2415D
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TSM DC/DC Converter, 15V dc/ 33 mA, 26 |
| Brand | TRACOPOWER |
| Efficiency | 80% |
| Length | 15.24mm |
| Model | TSM 2415D |
| Depth | 7.8mm |
| Width | 8.3mm |
| Mount Type | Surface |
| Series | TSM |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| MTBF | 2000000h |
| Number of outputs | 2 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 26.4V dc |
| Minimum Input Voltage | 21.6V |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 33mA |
| Isolation Voltage | 1kV dc |
| Output Voltage 2 | -15V dc |
| Reflow Solder Temperature | 245 °C |
Key Features
- Offers 15V and -15V DC dual outputs with 33 mA current capacity.
- Supports wide input voltage range from 21.6V to 26.4V DC.
- Features isolated I/O with 1kV DC isolation voltage for enhanced safety.
- Surface mount SMD package allows efficient automated production.
- Operates at up to 1 W maximum output power with 80% typical efficiency.
- Suitable for demanding environments, with operating temperature range from -40°C to 85°C.
- MTBF of 2,000,000 hours ensures long-term reliability.
- Ideal for ground loop elimination, noise reduction, and digital interface power conversion.
Product Description
The TRACOPOWER TSM 2415D DC/DC Converter is a high-performing dual-output component designed for robust electronic systems requiring reliable power conversion in demanding environments. With an isolated, unregulated configuration, it is suitable for industrial, laboratory, and commercial applications where compact footprint and safety are paramount.
This device delivers both 15V and -15V DC outputs at 33 mA current capacity per channel, supporting a wide input voltage range of 21.6V to 26.4V DC. Its SMD package (SOIC-14/18) construction ensures compatibility with automated PCB assembly and simplifies soldering processes even for lead-free production lines.
The converter's impressive 1kV DC isolation voltage enhances operational safety for sensitive electronic equipment. With a maximum output power of 1 W and a typical efficiency of 80%, it provides reliable point-of-load power conversion, ground loop elimination, and noise reduction for digital interfaces.
Compact dimensions - 15.24mm length, 8.3mm width, and 7.8mm depth - make this module easy to integrate into space-constrained boards. Its MTBF of 2,000,000 hours offers industry-leading longevity and minimal maintenance requirements.
The TSM 2415D series is optimized for continuous operation in extreme temperature conditions, ranging from -40°C to 85°C. It supports reflow soldering up to 245°C and maintains high pin co-planarity accuracy, streamlining tape-and-reel packaging logistics.
Common applications include point-of-load conversion for digital circuits, ground loop elimination, instrumentation, and distributed noise reduction in industrial, laboratory, and control systems. The robust design suits industrial automation, embedded systems, and sensitive equipment installations.
Explore the TRACOPOWER range for reliable DC/DC converters and electronics solutions in power engineering, automation, and embedded systems on EnvMart.
Explore more products in our DC-DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TSM 2415D operates with an input voltage range of 21.6V to 26.4V DC.
This model provides dual outputs of 15V and -15V DC, with a current capacity of 33 mA per channel.
The maximum output power of the TSM 2415D is 1 W.
It has a typical efficiency rating of 80%.
The dimensions of this model are 15.24 mm in length, 8.3 mm in width, and 7.8 mm in depth.
This unit features an isolation voltage of 1 kV DC, enhancing operational safety.
The operating temperature range for the TSM 2415D is from -40°C to 85°C.
This model uses a surface mount (SMD) package type, suitable for automated PCB assembly.
The MTBF for the TSM 2415D is 2,000,000 hours, indicating long-term reliability.
The reflow solder temperature for this model is 245°C.
This converter is suitable for applications such as point-of-load conversion, ground loop elimination, and noise reduction in digital interfaces.
The TSM 2415D is manufactured in Taiwan.
