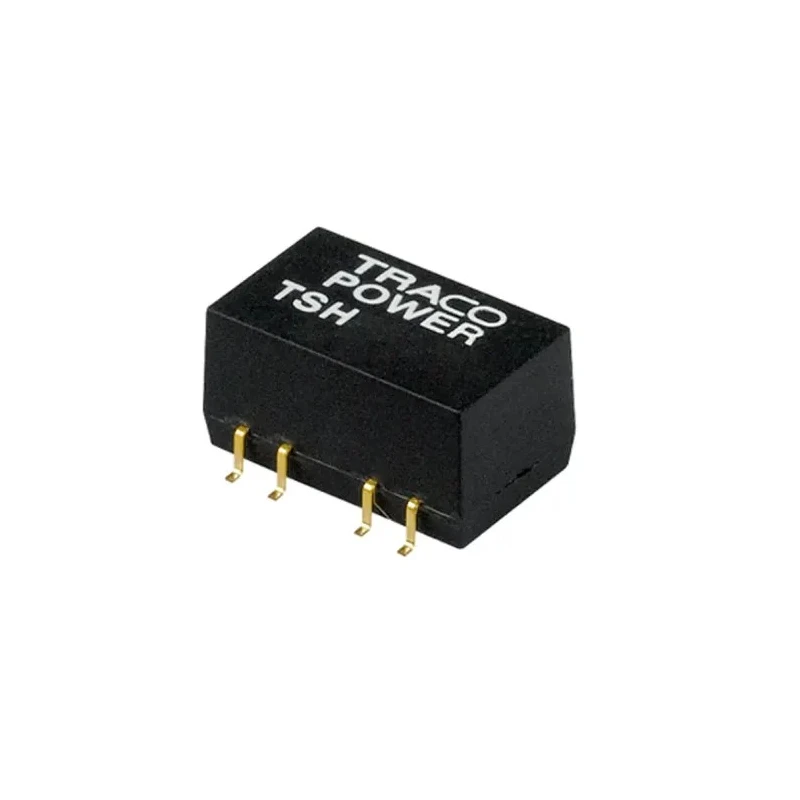

TRACOPOWER DC/DC Converter 12V Output, 165mA, Surface Mount, 21.6 - 24V Input, 2W, TSH 2412S

TRACOPOWER TSH 2412S is a highly efficient and reliable DC/DC converter designed for a range of industrial, electronic, and commercial applications requiring stable DC power conversion. The device features a regulated 12V DC output with a maximum current of 165mA, making it suitable for powering sensitive electronic circuits or modules. Its input voltage range of 21.6V - 24V DC provides flexibility for systems with varying supply standards.

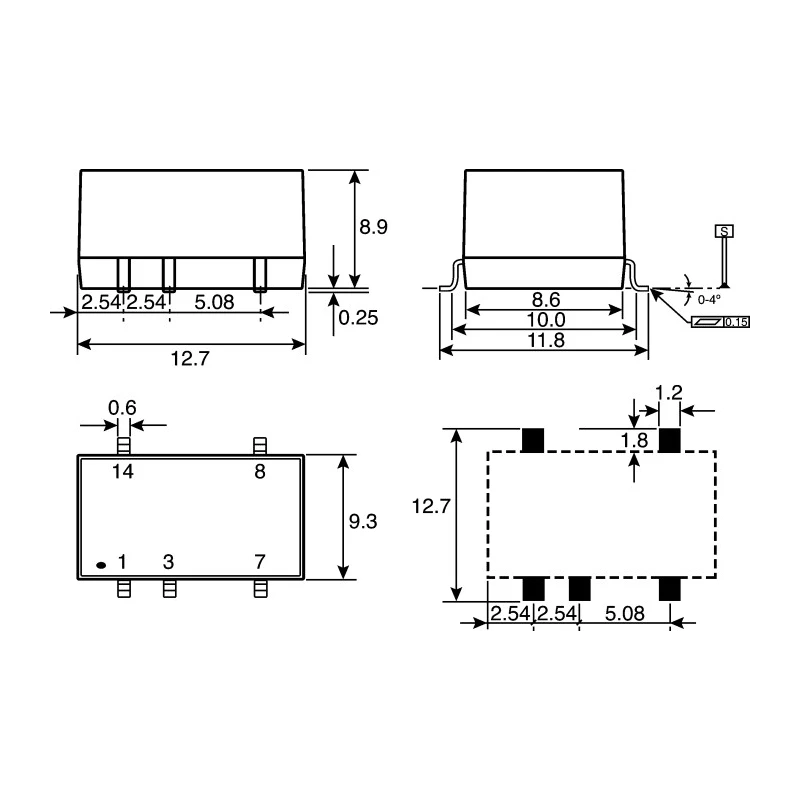

Engineered for surface-mount installation, this converter is compact, measuring 12.7mm in length and 8.65mm in depth. Its low profile and small footprint allow easy integration onto PCBs, supporting advanced electronic designs where space efficiency is critical. The 2W maximum output power efficiently scales for single or multiple low-power loads. The converter offers an isolation voltage of 1kV DC, ensuring robust separation between input and output circuits and enhancing system protection.

With a high efficiency rating of 81%, the TSH 2412S minimizes energy loss and heat emission, increasing reliability and optimizing performance. The operating temperature span of -40°C to 85°C allows use in demanding environments, including industrial control systems, telecommunications equipment, medical instrumentation, laboratory systems, and embedded engineering applications.

Additional features include ultra-compact SMD packaging, single-output configuration, and a mean time between failures (MTBF) of 2,000,000 hours, reflecting exceptional reliability for long-term deployment. The converter is suitable for automatic reflow soldering up to 245°C as per IPC/JEDEC J-Std-020C standards, ensuring manufacturing compatibility. High pin co-planarity accuracy simplifies PCB placement, while surface-mount package type streamlines assembly processes.

The TRACOPOWER TSH 2412S is ideal for industrial, laboratory, automation, power electronics, embedded systems, and PCB-mounted supply modules where consistent DC voltage conversion and safety isolation are critical.

Compact surface-mount DC/DC converter suitable for PCB integration. Delivers a regulated 12V DC output at up to 165mA current. Wide input voltage range from 21.6V to 24V DC supports versatile application needs. 2W maximum output power provides efficient power capability.

1kV DC isolation ensures safety and reliable operation for industrial and electronics use. Operates reliably in harsh environments from -40°C to 85°C. High efficiency of 81% minimizes power loss and thermal buildup. Ultra-compact package with length 12.7mm and depth 8.65mm for space-constrained designs.
