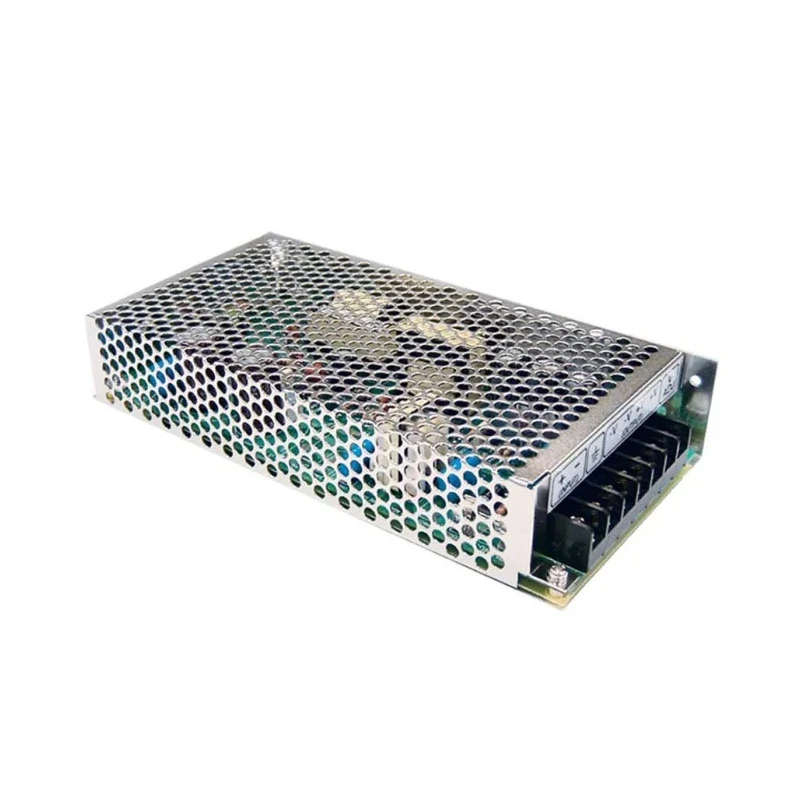

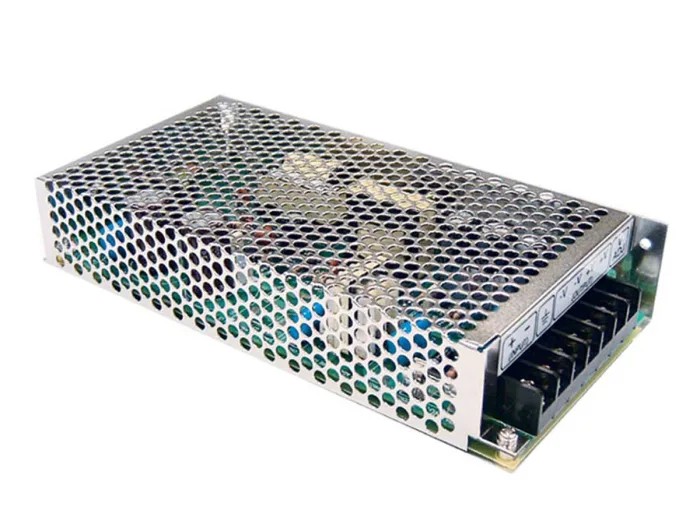

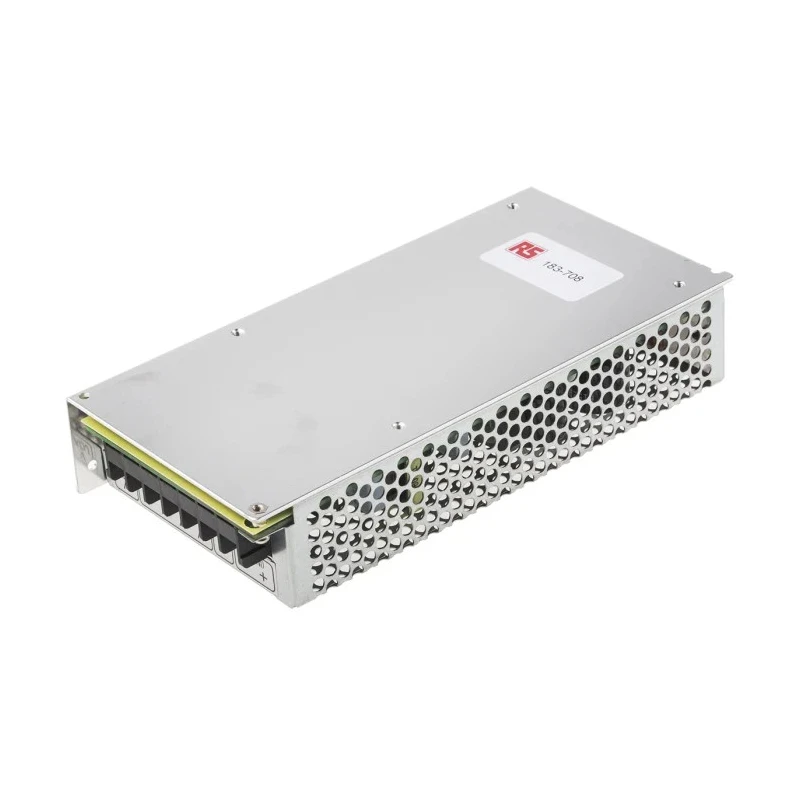

Mean Well DC/DC Converter 100.8W, 24V Output, 72 - 144V Input, Chassis Mount, SD-100D-24
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters MEAN WELL SD-100 DC/DC Converter, 24V dc/, 144V dc |
| Brand | MEAN WELL |
| Efficiency | 83% |
| Length | 199mm |
| Model | SD-100D-24 |
| Depth | 38mm |
| Gross Weight | 650g |
| Width | 98mm |
| Mount Type | Chassis Mount |
| Series | SD-100 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| MTBF | 355500h |
| Number of outputs | 1 |
| Ripple and Noise | 150mV Pk-Pk |
| Maximum Output Power | 100.8W |
| Maximum Input Voltage | 144V dc |
| Standards/Approvals | EN/IEC |
| Minimum Input Voltage | 72V |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 0A |
| Output Voltage Adjustment Range | 30 V |
| Isolation Voltage | 1.5kV ac |
| Output Current 2 | 4.2A |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Wide 2 | 1 input voltage range |
Key Features
- Delivers regulated 24V DC output at up to 4.2A current.
- Chassis mount enclosure simplifies installation with screw terminals.
- Features short circuit, overload, and overvoltage protection for enhanced safety.
- MTBF of 355500 hours based on MIL-HDBK-217F at 25°C for durability.
- Efficiency rated at 83% helps reduce energy consumption.
- Operating temperature range from -10°C to 60°C supports industrial environments.
- Ripple and noise limited to 150mV pk-pk for stable performance.
- Output voltage adjustment range up to 30V for flexible applications.
Product Description
The Mean Well SD-100D-24 is a single output, regulated, enclosed DC-DC converter designed for industrial and electronic applications requiring isolation and reliability. With a wide 2:1 input voltage range from 72V to 144V DC, this converter efficiently delivers a stable 24V DC output with a maximum power of 100.8W and up to 4.2A output current.
Its chassis-mount design includes screw terminal connections for easy and secure installation. The converter is engineered for high reliability, offering an MTBF of 355500 hours (MIL-HDBK-217F, 25°C) and an efficiency of 83%, facilitating prolonged uninterrupted operation in demanding environments.
Protection circuits include short circuit, overload, and overvoltage safeguards. The device operates within an industrial temperature range from -10°C to 60°C; ripple and noise are constrained to 150mV peak-to-peak to ensure clean power delivery. It also supports output voltage adjustment up to 30V and provides robust input/output isolation at 1.5kV AC.
With its compact dimensions (199mm length, 98mm width, 38mm depth) and a weight of 650g, this converter suits control panels, energy systems, instrumentation, and automation. Compliance with EN/IEC standards and EMC meets EN 55022 Class B further attests to its suitability for professional applications.
This model is ideal for use in industrial automation, laboratory instrumentation, energy systems, power distribution, and manufacturing control where regulated isolated DC power is required. Its build quality and performance make it a preferred choice for engineers and system integrators.
Explore more DC-DC Converters and Mean Well power supply solutions in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Mean Well SD-100D-24 has a maximum output power of 100.8W.
It operates within a wide input voltage range of 72V to 144V DC.
This converter can deliver an output current of up to 4.2A.
The efficiency of this model is rated at 83%, which helps reduce energy consumption.
The dimensions are 199mm in length, 98mm in width, and 38mm in depth.
It can operate within a temperature range of -10°C to 60°C.
It features short circuit, overload, and overvoltage protection for enhanced safety.
The output voltage can be adjusted up to 30V, providing flexibility for various applications.
Ripple and noise are limited to 150mV peak-to-peak for stable performance.
The isolation voltage for this converter is 1.5kV AC, ensuring robust input/output isolation.
The Mean Well SD-100D-24 has a mean time between failures (MTBF) of 355,500 hours based on MIL-HDBK-217F at 25°C.
It features a chassis mount design, which simplifies installation with screw terminals.
