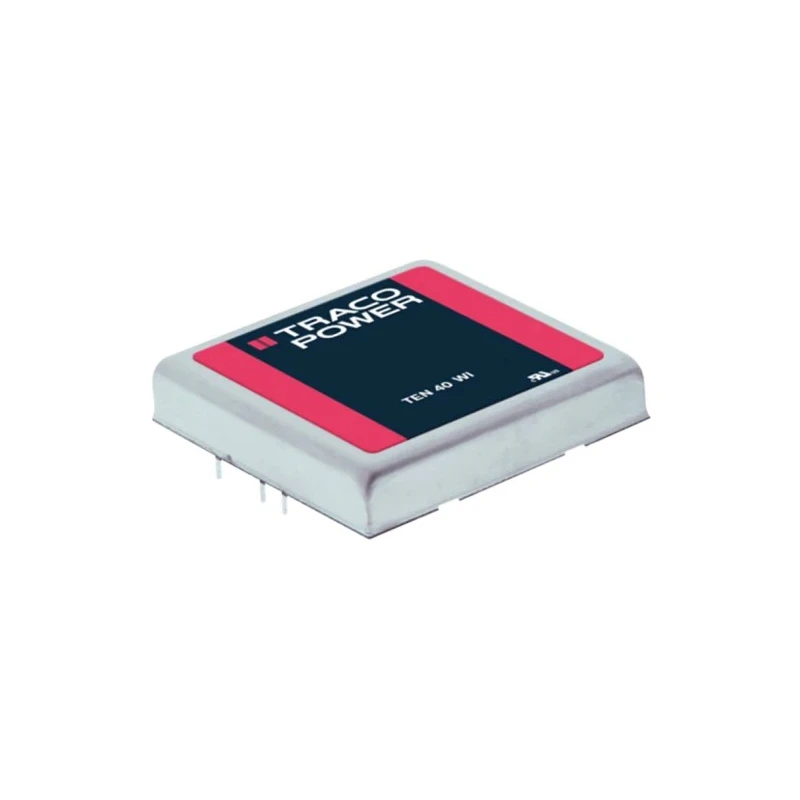

TRACOPOWER DC/DC Converter 5V DC 8A 36V DC Input, 9V Input 40W Through Hole, Shielded Metal Case TEN 40-2411WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEN 40WI DC/DC Converter, 5V dc/ 8 A, 3 |
| Brand | TRACOPOWER |
| Efficiency | 87% |
| Length | 50.8mm |
| Model | TEN 40-2411WI |
| Depth | 10.2mm |
| Mount Type | Through Hole |
| Series | TEN 40WI |
| Maximum Operating Temperature | 85°C |
| Package Type | Shielded Metal Case with Insulated Baseplate |
| Minimum Operating Temperature | -40°C |
| MTBF | 660000h |
| Number of outputs | 1 |
| Maximum Output Power | 40W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 8 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 8A |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 4:1 |
| Input Ratio 4 | 1 |
| Ultra-wide 4 | 1 input voltage range |
Key Features
- Supports output voltage of 5V DC with up to 8A current.
- Operates with a wide input voltage range from 9V to 36V DC.
- Delivers maximum output power of 40W for demanding electronic loads.
- High efficiency up to 87% and MTBF of 660,000 hours for reliable operation.
- Through-hole mounting for secure PCB integration and heat dissipation.
- Shielded metal case with insulated baseplate offers robust protection and minimises EMI.
- Features isolation voltage of 1.5kV DC for enhanced electrical safety.
- Operating temperature range is -40°C to 85°C for industrial environments.
Product Description
The TRACOPOWER TEN 40-2411WI is an industrial-grade DC/DC Converter designed for demanding applications in power electronics, automation, and communication systems. It features a regulated 5V DC output at up to 8A, making it ideal for powering sensitive loads and distributed architectures. The converter accepts a wide input voltage range from 9V to 36V DC, supporting flexibility for battery and bus-powered systems.
Encased in a compact shielded metal case with insulated baseplate, this module enables reliable through-hole PCB mounting. The high efficiency rating of 87% reduces thermal dissipation, and the robust construction ensures an MTBF of 660,000 hours and stable operation across challenging environments. With an isolation voltage of 1.5kV DC, it provides safety for end equipment and users.
The TEN 40-2411WI incorporates advanced protection features such as remote On/Off control, under voltage lockout, over voltage, over temperature, and short circuit protection. The adjustable output voltage range, ±10%, allows tuning for specific load conditions. It is built for industrial environments, supporting an operational temperature from -40°C to 85°C, making it suitable for applications including battery-operated devices, communication equipment, and distributed power architectures.
Designed for a single-output configuration, the converter uses a shielded, insulated baseplate for effective EMI reduction. It offers a compact footprint - 10.2mm depth and 50.8mm length - and is supplied with 8 pins for reliable electrical connectivity. The ultra-wide 4:1 input ratio supports a broad range of supply voltages, while the internal filter meets EN 55022 and FCC, Level A standards with an external capacitor.
Overall, the TEN 40-2411WI enables industry-standard DC voltage conversion with versatile protection, efficient power delivery, and ease of integration into electronics manufacturing, automation, laboratory power supplies, and commercial equipment. Typical use cases include industrial machine controllers, embedded instrumentation, communication infrastructure, and battery-operated electronics.
Browse more DC-DC Converters and TRACOPOWER products in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for the TRACOPOWER TEN 40-2411WI is from 9V to 36V DC.
It delivers a maximum output power of 40W.
The converter provides a regulated output voltage of 5V DC with a current rating of up to 8A.
The efficiency rating of the TEN 40-2411WI is up to 87%.
The dimensions of the converter are 50.8mm in length and 10.2mm in depth.
It operates within a temperature range of -40°C to 85°C.
This model features through-hole mounting for secure PCB integration.
It includes protection features such as remote On/Off control, under voltage lockout, over voltage, over temperature, and short circuit protection.
The isolation voltage is 1.5kV DC, enhancing electrical safety.
The TEN 40-2411WI has a single output configuration.
The mean time between failures (MTBF) for this model is 660,000 hours.
The country of origin for the TRACOPOWER TEN 40-2411WI is Taiwan.
