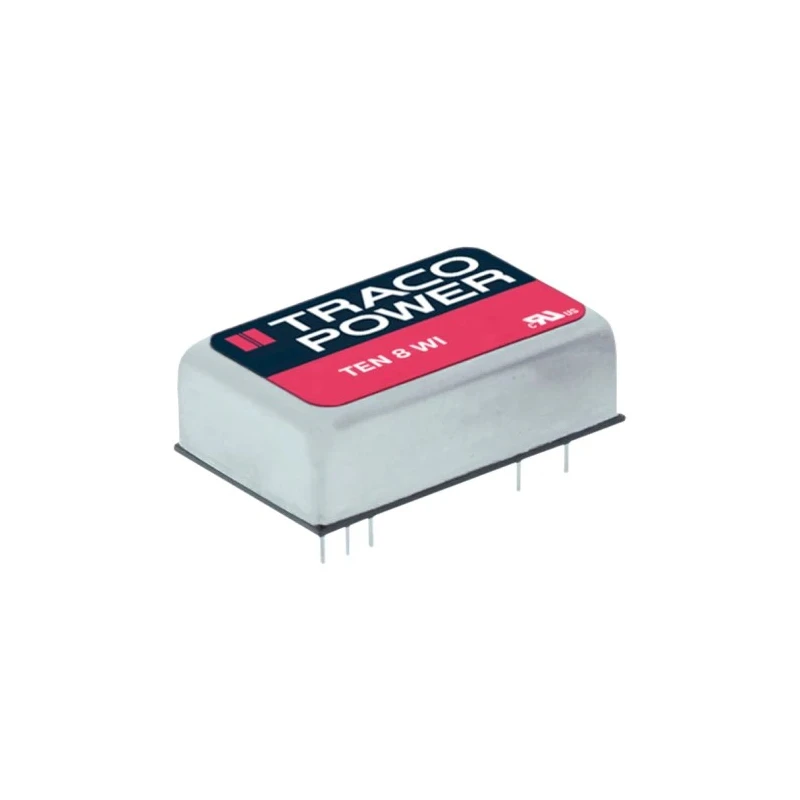

TRACOPOWER Dual Output Isolated DC/DC Converter 12V/ - 12V 333mA 75V Input 18V Input 8W Through Hole -40°C to 85°C TEN 8-4822WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEN 8WI DC/DC Converter, 12V/ 333 mA, 7 |
| Brand | TRACOPOWER |
| Efficiency | 87% |
| Length | 32mm |
| Model | TEN 8-4822WI |
| Depth | 10.2mm |
| Width | 20.3mm |
| Mount Type | Through Hole |
| Series | TEN 8WI |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2800000h |
| Number of outputs | 2 |
| Maximum Output Power | 8W |
| Maximum Input Voltage | 75V |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 18V |
| Number of Pins | 9 |
| Output Voltage 1 | 12V |
| Output Current 1 | 333mA |
| Isolation Voltage | 1.5kV |
| Input Ratio | 4:1 |
| Output Voltage 2 | -12V |
| Input Ratio 4 | 1 |
Key Features
- Dual output DC/DC converter offering both 12V and - 12V outputs.
- Supports a wide input voltage range from 18V to 75V for versatile applications.
- Maximum output power rated at 8W for industrial systems.
- Through-hole DIP package provides reliable mechanical stability and easy PCB integration.
- Isolation voltage of 1.5kV ensures robust electrical safety for sensitive circuits.
- High efficiency up to 87% aids in reducing thermal load and energy consumption.
- Operating temperature range from - 40°C to 85°C with thermal shock and vibration resistance.
- Compliant with RoHS standards, featuring lead-free design and shielded metal case.
Product Description
The TRACOPOWER TEN 8-4822WI is a high-performance isolated DC/DC converter designed for demanding industrial, railway, and telecom/datacom applications. It delivers dual outputs of 12V and - 12V with a current rating of up to 333mA, allowing flexible integration into circuits requiring positive and negative voltages.
Built with a robust DIP package and through-hole mounting, this converter offers reliable mechanical and electrical stability, making it ideal for environments subjected to vibration and thermal shock. The device supports a wide input voltage range of 18V to 75V (4:1 input ratio), accommodating varied input sources such as battery packs and regulated supplies.
Its isolation voltage of 1.5kV enables safe interfacing with sensitive electronic systems, and the high efficiency of up to 87% minimizes waste heat, enhancing lifespan and energy savings. Featuring a shielded metal case and insulated base plate, the converter adheres to stringent EMC and RoHS compliance while enabling operation from - 40°C to 85°C.
With a mean time between failure (MTBF) of 2.8 million hours, the TEN 8WI series is built for reliability in mission-critical setups. The compact dimensions (32mm length, 20.3mm width, 10.2mm depth) facilitate easy installation on crowded PCBs.
Ideal use cases include onboard railway electronics, industrial control panels, wireless networking equipment, and measurement systems. The converter is EN 50155 approved for railway applications and includes features like remote On/Off, under voltage lock-out circuit, and is vibration-resistant according to EN 61373.
Explore more options and technical details in EnvMart's DC-DC Converter category or browse additional TRACOPOWER solutions for industrial power conversion needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 8W, allowing it to support various industrial applications effectively.
It supports a wide input voltage range from 18V to 75V, accommodating different power sources.
This unit provides dual outputs of 12V and -12V, making it suitable for circuits requiring both positive and negative voltages.
The efficiency of this converter is rated at up to 87%, which helps in reducing thermal load and energy consumption.
The isolation voltage is 1.5kV, ensuring robust electrical safety for sensitive circuits.
The dimensions of this model are 32mm in length, 20.3mm in width, and 10.2mm in depth, facilitating easy installation on PCBs.
It operates within a temperature range of -40°C to 85°C, making it suitable for various environmental conditions.
This converter has two outputs, allowing for flexible integration into circuits.
The mean time between failure (MTBF) for this model is 2.8 million hours, indicating high reliability in critical applications.
It uses a through-hole mounting type, providing reliable mechanical stability for installation.
Yes, it is compliant with RoHS standards and features a lead-free design, ensuring it meets environmental regulations.
It is suitable for demanding industrial, railway, and telecom/datacom applications due to its robust design and performance specifications.
