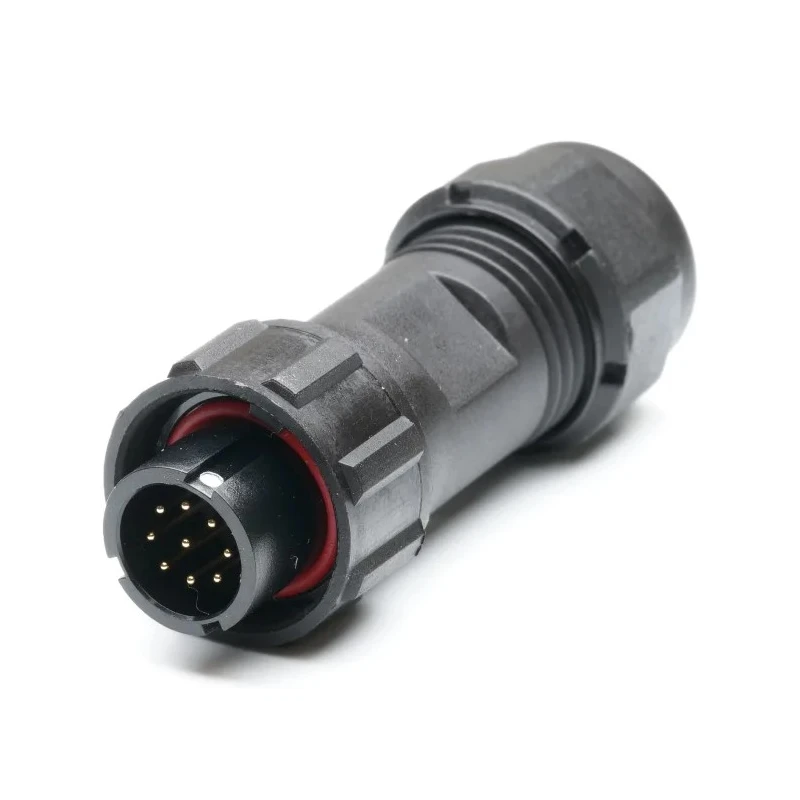

RS PRO Circular Connector, 9 Contacts, Cable Plug, Male, IP67, SY13 Series, 3A, 125V 207-2258

The RS PRO 207-2258 Circular Connector is engineered to deliver dependable performance in demanding industrial environments. Designed as a cable-mounted plug with 9 contacts, this connector provides robust connectivity for machinery, sensors, actuators, and control systems.

Its circular bayonet interface ensures industry-standard compatibility, minimizing miss-mating and making installation straightforward. The plug features a male contact configuration and straight orientation, with a standard shell diameter of 19.5 mm, suitable for compact installation spaces.

Durability is a key feature: the housing is composed of rated polyamide 66 and polycarbonate materials, offering resistance to mechanical stress, chemicals, UV, and moisture. Gold-plated brass contacts deliver excellent conductivity and long-term reliability, supporting both data and power transmission up to 3A and 125V.

The connector is IP67 rated, protecting internal contacts from dust and water immersion, making it an optimal solution for outdoor or harsh industrial settings. The solder termination type and bayonet coupling design facilitate quick and secure assembly, reducing installation time and ensuring stable connections.

Operational in temperatures from -40°C up to 85°C, the SY13 Series connector meets the requirements for process control, automation, robotics, instrumentation, factory assembly, and other applications needing rugged and waterproof electrical interfaces.

This connector’s industrial design benefits panel mounting in production and manufacturing, maintaining signal integrity under vibration and providing versatility in machine integration.

Typical use cases include instrumentation, process monitoring, robotics, assembly lines, factory automation, and outdoor installations where environmental protection is vital. Features a circular bayonet interface for secure and easy mating.

IP67 rated for protection against dust and water immersion. Constructed with durable polyamide 66 and polycarbonate housing. Gold-plated brass contacts ensure reliable conductivity and corrosion resistance. Supports 3A current and 125V voltage for versatile signal or power transmission.

Straight orientation with a shell size of 19.5 mm. Operating temperature range from -40°C to 85°C for use in harsh environments. Quick solder termination and bayonet coupling for fast installation. Suited for factory automation, instrumentation, robotics, and outdoor installations.
