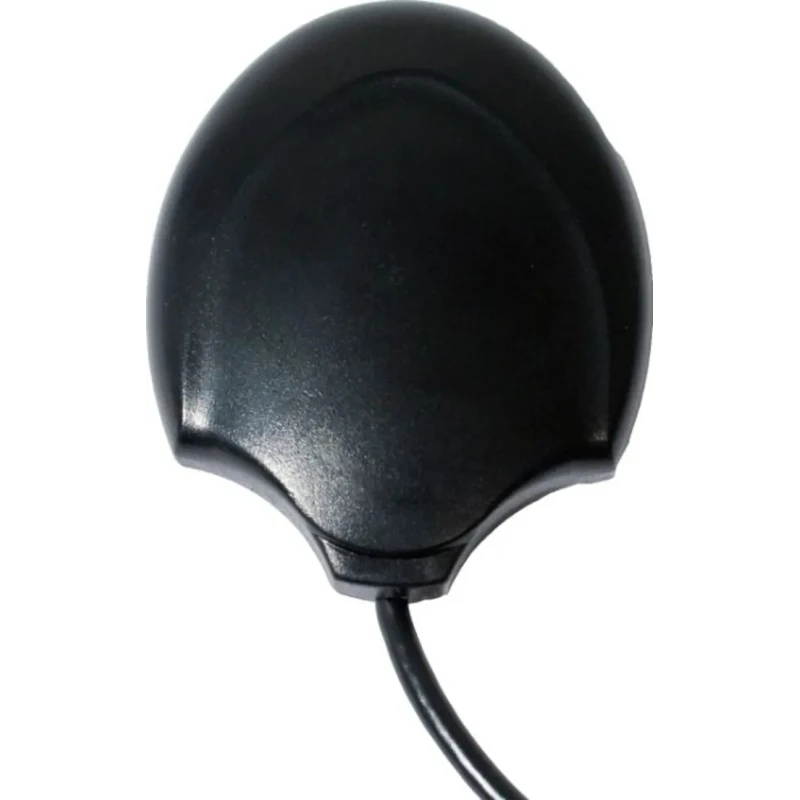

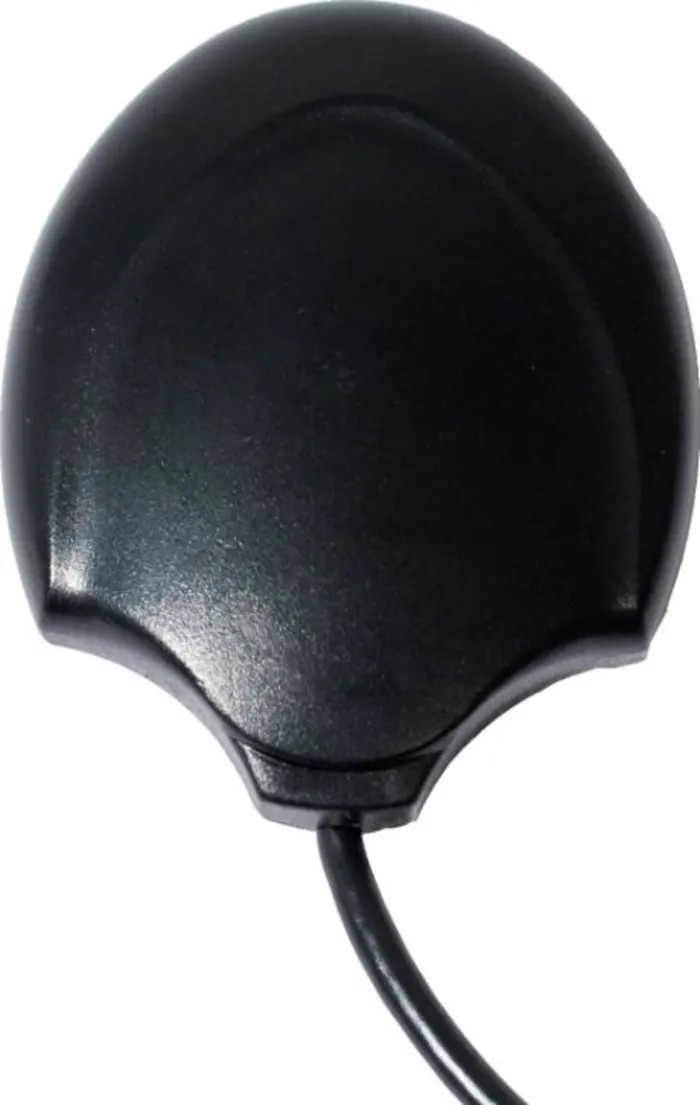

CTi Dome Omni-Directional GPS Antenna with SMA Connector, Magnetic Mount, 3 - 5V, 1575.42MHz, 3dBi Gain, GPS_TRK/SMA
Specifications
| Country of Origin | China |
|---|---|
| Brand | CTi |
| Model | GPS_TRK/SMA |
| IP Rating | IP54 |
| Connector Type | SMA |
| Bandwidth | 5MHz |
| Series | GPS_TRK |
| Gain | 3dBi |
| Lead Length | 100mm |
| Impedance | 50? |
| Supply Voltage | 3 - 5V |
| Standards/Approvals | RoHS |
| Maximum Frequency | 1575.42MHz |
| Supply Current | 15mA Max |
| RF Protocols | GPS |
| Antenna Physical Form | Dome |
| Antenna Mount Type | Magnetic |
| Directivity | Omni-Directional |
| LNA Gain (at 5V) | 27dB Nominal |
| LNA Noise Figure | 1.5dB (Typ.) |
Key Features
- Omni-directional dome antenna suitable for GPS systems.
- Equipped with SMA connector and magnetic mount for versatile installation.
- Operates at 1575.42MHz with 3dBi passive gain and 27dB LNA gain at 5V.
- Supports GPS RF protocol and provides a 5MHz bandwidth.
- Supplied with a 100mm lead for flexible placement.
- IP54-rated for basic environmental protection and RoHS compliant.
- Runs on 3 - 5V supply voltage, with maximum supply current of 15mA.
- Ideal for embedded and industrial electronics requiring reliable GPS reception.
Product Description
The CTi GPS_TRK/SMA Dome Omni-Directional GPS Antenna is a precision electronic component optimized for GPS system integration. This antenna features a dome-shaped physical form and operates at a center frequency of 1575.42MHz, providing excellent coverage for satellite-based location and navigation applications in industrial, embedded, and commercial environments.
The antenna is equipped with an SMA connector for reliable and secure RF interfacing, and employs a magnetic mounting method, enabling easy placement on suitable surfaces within enclosures, vehicles, or equipment racks. Its omni-directional design ensures uniform reception across all directions, enhancing GPS signal reliability even in challenging field locations.
Technical specifications include a passive gain of 3dBi and an integrated filtered Low Noise Amplifier (LNA) offering a nominal gain of 27dB at 5V and a typical noise figure of just 1.5dB, helping to deliver strong, clear signal quality. The antenna boasts a 5MHz bandwidth and supports GPS protocol exclusively. It is supplied with a 100mm lead, allowing greater flexibility for antenna positioning.
The CTi GPS_TRK/SMA is built to IP54 environmental protection standards and complies with RoHS directives for hazardous substances. Its supply voltage ranges from 3V to 5V and it operates with a maximum supply current of 15mA. The impedance is specified at 50 ohms, ensuring compatibility with standard GPS receiver designs.
Common industrial applications include integration in navigation modules, fleet tracking devices, laboratory positioning equipment, telecommunications, and security monitoring systems. The magnetic mount also makes it suitable for vehicular installation and portable deployment scenarios.
This antenna provides robust GPS signal reception for environments demanding real-time position accuracy and system reliability. For more specialized GPS antennas, or to browse other CTi electronic components, visit the GPS Antenna category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a center frequency of 1575.42MHz, which is standard for GPS applications.
It features a passive gain of 3dBi and an integrated filtered Low Noise Amplifier (LNA) providing a nominal gain of 27dB at 5V.
The antenna operates within a supply voltage range of 3 to 5V.
It is equipped with an SMA connector for secure RF interfacing with GPS systems.
It provides a bandwidth of 5MHz, suitable for GPS RF protocols.
The antenna is rated IP54, providing basic environmental protection against dust and water.
It comes with a 100mm lead, allowing for flexible placement during installation.
The maximum supply current is 15mA, ensuring efficient power usage during operation.
The impedance is specified at 50 ohms, which is compatible with standard GPS receiver designs.
It exclusively supports GPS RF protocols, making it suitable for various navigation applications.
Common applications include navigation modules, fleet tracking devices, and telecommunications systems.
