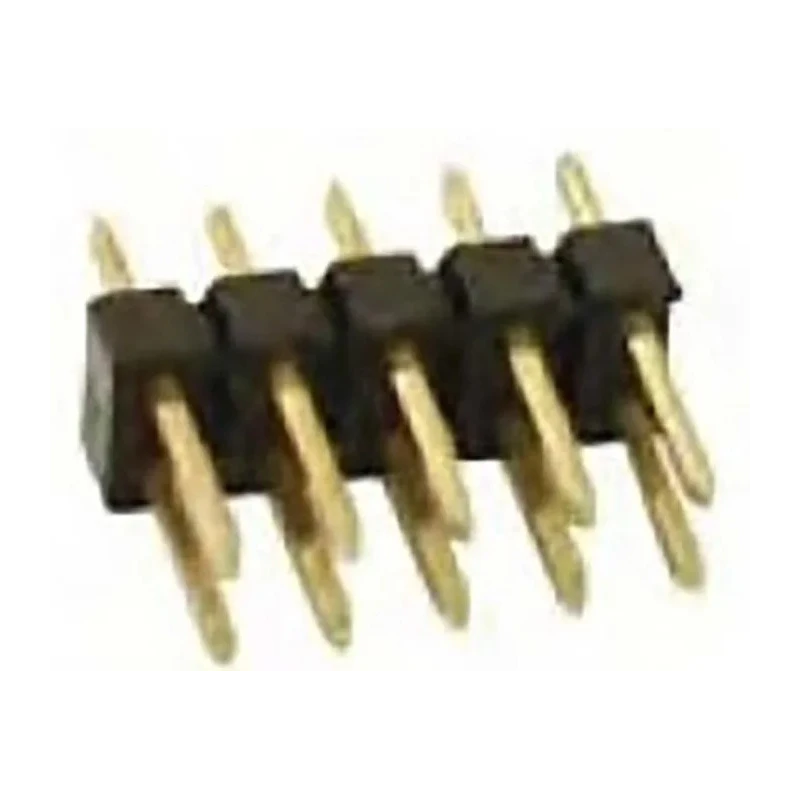

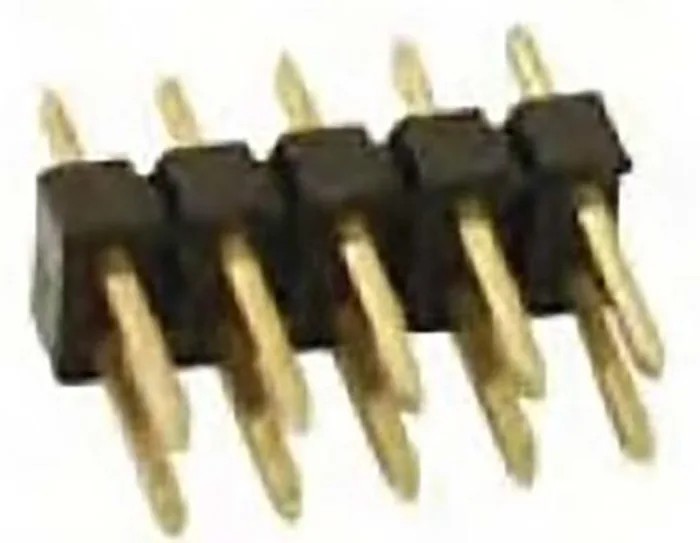

Amphenol Communications Solutions EconoStik Vertical Through Hole Pin Header, 12 Contacts, 2.54 mm Pitch 10129381-912002BLF
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1500V |
| Brand | Amphenol Communications Solutions |
| Orientation | Vertical |
| Current | 3A |
| Model | 10129381-912002BLF |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | EconoStik |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Mating Pin Length | 5.84mm |
Key Features
- Vertical through hole pin header suitable for PCB applications.
- Equipped with 12 gold-plated brass contacts for reliable electrical performance.
- 2.54 mm pitch ensures standard compatibility for board-to-board connections.
- Thermoplastic housing designed for high-temperature operation and mechanical durability.
- Rated for 3A current and 1500V voltage, ensuring robust performance in demanding conditions.
- Solder termination type for secure mounting and easy assembly.
- Unshrouded design ideal for test equipment, industrial control, and metering applications.
- Operating temperature range from -55°C to 105°C suitable for industrial environments.
Product Description
The Amphenol Communications Solutions EconoStik Series model 10129381-912002BLF is a robust vertical through hole pin header engineered for board-to-board PCB connections. Featuring twelve gold-plated brass contacts, this pin header provides stable electrical interfaces for demanding electronic environments. Its 2.54 mm pitch ensures widespread compatibility with industry-standard PCB layouts.
The housing is constructed from high-temperature thermoplastic, offering enhanced resistance to thermal and mechanical stresses during soldering and operation. This pin header is designed for solder termination, guaranteeing secure fixture and electrical integrity on the PCB.
Rated for 3A of current and 1500V voltage, the EconoStik header is suitable for applications including industrial control equipment, test instrumentation, metering, POS terminals, set-top boxes, and surveillance solutions. The contact plating utilizes 1μin gold, tested for up to 50 mating cycles, delivering low contact resistance and extended service life.
The component’s operating temperature range from -55°C to 105°C makes it appropriate for various industrial, electronics, and commercial deployments. Its unshrouded interface allows straightforward integration with matching connectors and easy probe access for testing. Custom polarization and tailor-made mating/tail lengths are supported within the series, helping users adapt to bespoke board designs.
Mating pin length is 5.84 mm and the housing features two rows of male contacts, providing compact yet efficient connectivity. The EconoStik series adheres to board-to-board connector system standards, and the thermoplastic material guarantees RoHS compliance and lead-free safety.
Typical use cases include industrial and laboratory control devices, test and measurement apparatus, metering equipment, commercial POS units, set-top boxes, and surveillance hardware.
Explore more PCB Pin Header solutions from Amphenol Communications Solutions and related components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 3A.
It is rated for a maximum voltage of 1500V.
The contacts are spaced at a pitch of 2.54 mm, ensuring compatibility with standard PCB layouts.
This pin header features a total of 12 contacts.
The housing is made from thermoplastic, and the contacts are constructed from brass with gold plating.
It operates within a temperature range of -55°C to 105°C.
This model uses solder termination for secure mounting on PCBs.
It features an unshrouded design, which allows for easy access during testing and integration with matching connectors.
The mating pin length is 5.84 mm.
This model has two rows of male contacts.
It is suitable for applications including industrial control, test instrumentation, metering, and POS terminals.
The country of origin for this pin header is India.
