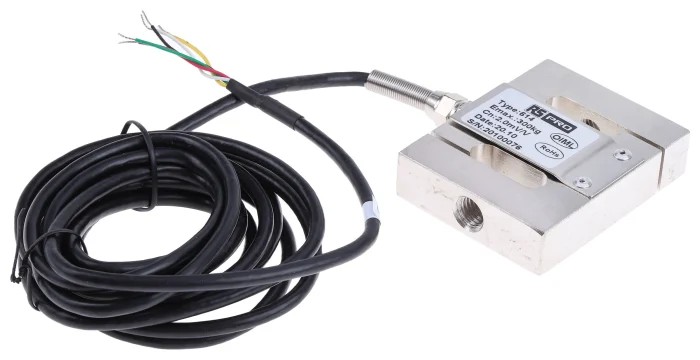

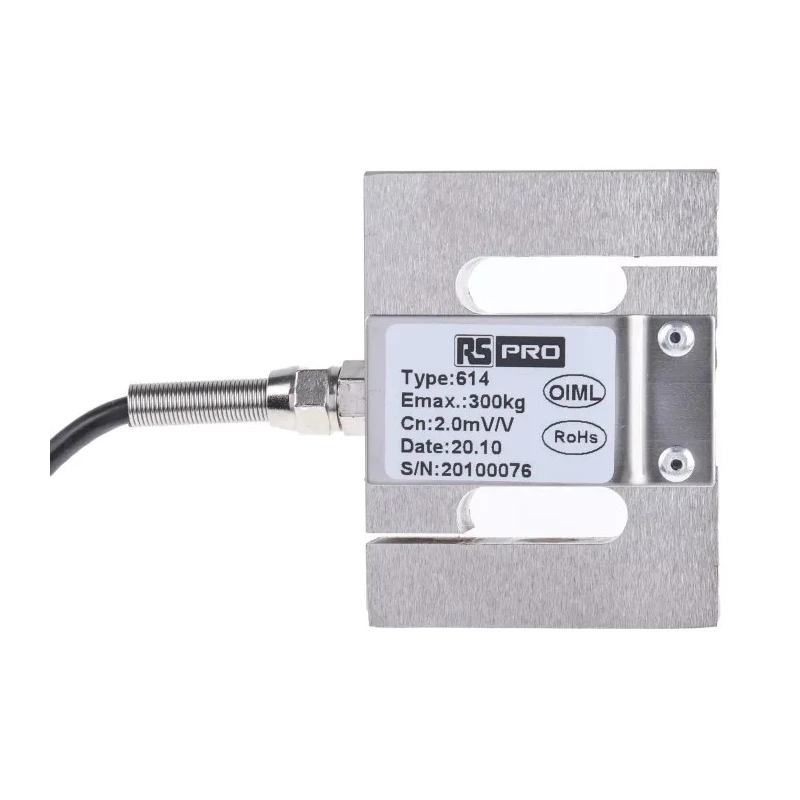

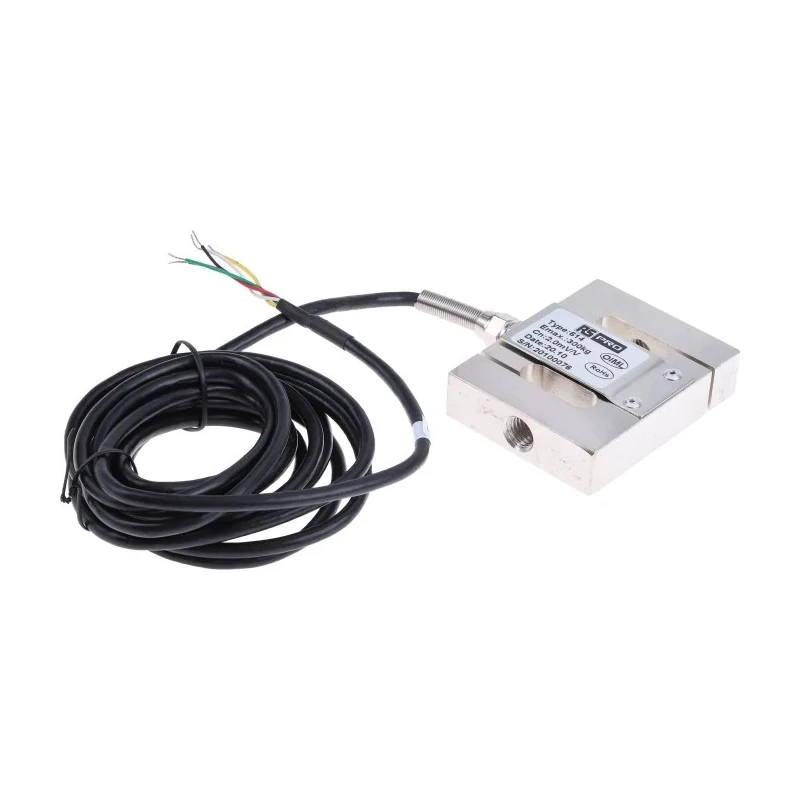

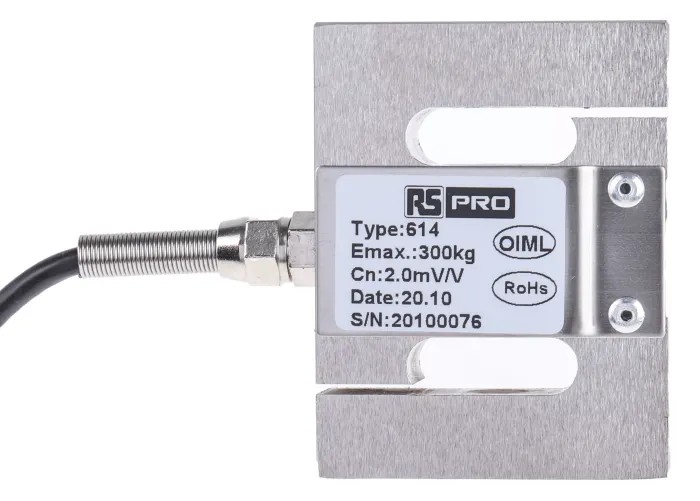

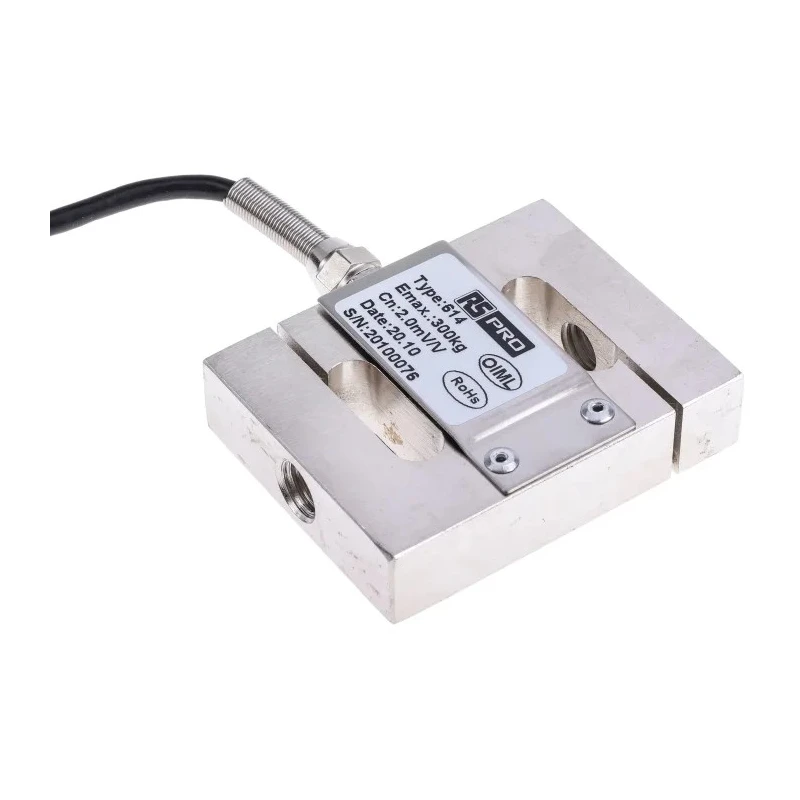

RS PRO Low Profile Load Cell, Compression and Tension, 300 kg Capacity, IP66 Alloy Steel, 62.1x80x18 mm, 15V DC, 204-2768
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Model | 204-2768 |
| Depth | 18mm |
| IP Rating | IP66 |
| Sensor Type | Low Profile |
| Width | 80mm |
| Housing Material | Alloy Steel |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Maximum dc Voltage | 15V dc |
| Standards/Approvals | RoHS, OIML |
| Force Measured | Compression, Tension |
| Maximum Force/Load Measurement | 300kg |
| Gauge Length | 62.1mm |
Key Features
- Low profile S beam design for both compression and tension applications.
- 300 kg rated force measurement capacity with robust alloy steel housing.
- Ingress protection rated IP66 for dust and water resistance.
- Operates over a temperature range of -20°C to 60°C for versatility.
- Nickel-plated treatment enhances corrosion and wear resistance.
- Suitable for machine testing, hopper scales, tension control, and process weighing.
- Supports bi-directional force sensing and high measurement accuracy.
Product Description
The RS PRO 204-2768 Low Profile Load Cell is engineered for precise measurement of both compression and tension forces in demanding industrial and laboratory environments. This S beam type transducer features a robust alloy steel body with a nickel-plated finish for enhanced corrosion resistance and long-term reliability under rigorous use.
With a rated capacity of 300 kg, this load cell is ideal for applications requiring accurate force measurement in either direction. The unit operates over a wide temperature range from -20°C to 60°C, allowing dependable performance even in challenging operating conditions. Its IP66 ingress protection safeguards the sensor from dust and powerful water jets, delivering reliable results in industrial or process sites.
The compact sensor dimensions - 62.1 mm in length, 80 mm in width, and 18 mm in depth - make this load cell easy to integrate into machines and systems where installation space is limited. It is driven by a maximum excitation voltage of 15V DC and features low non-linearity, making it well suited for applications such as machine testing, batching systems, blending and mixing systems, hopper and belt scales, process weighing, crane scales, and tension control.
Installation is straightforward, and the stable output allows the RS PRO load cell to maintain high accuracy and repeatability over time. The sensor complies with relevant RoHS and OIML standards, supporting quality and safety requirements for industrial force measurement equipment.
Common applications include process weighing, hopper and batching systems, tension measurement in production lines, machine calibration, and laboratory testing scenarios where both compression and tension forces must be measured with high reliability.
Explore similar precision sensors and advanced automation solutions in the Sensors category, or browse more RS PRO load cells and industrial measurement products for comprehensive project needs.
Explore more products in our Strain Gauges category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates over a temperature range from -20°C to 60°C, making it suitable for various environments.
This load cell is designed to measure both compression and tension forces.
The load cell has an IP66 ingress protection rating, ensuring it is resistant to dust and powerful water jets.
The housing is made from alloy steel, which provides durability and strength.
The maximum excitation voltage for this model is 15V DC.
It complies with RoHS and OIML standards, ensuring it meets quality and safety requirements.
It is suitable for applications such as machine testing, hopper scales, tension control, and process weighing.
The nickel-plated treatment enhances corrosion and wear resistance, contributing to the longevity of the sensor.
The load cell features low non-linearity, which helps maintain high measurement accuracy.
Yes, installation is straightforward, allowing for easy integration into machines and systems.
