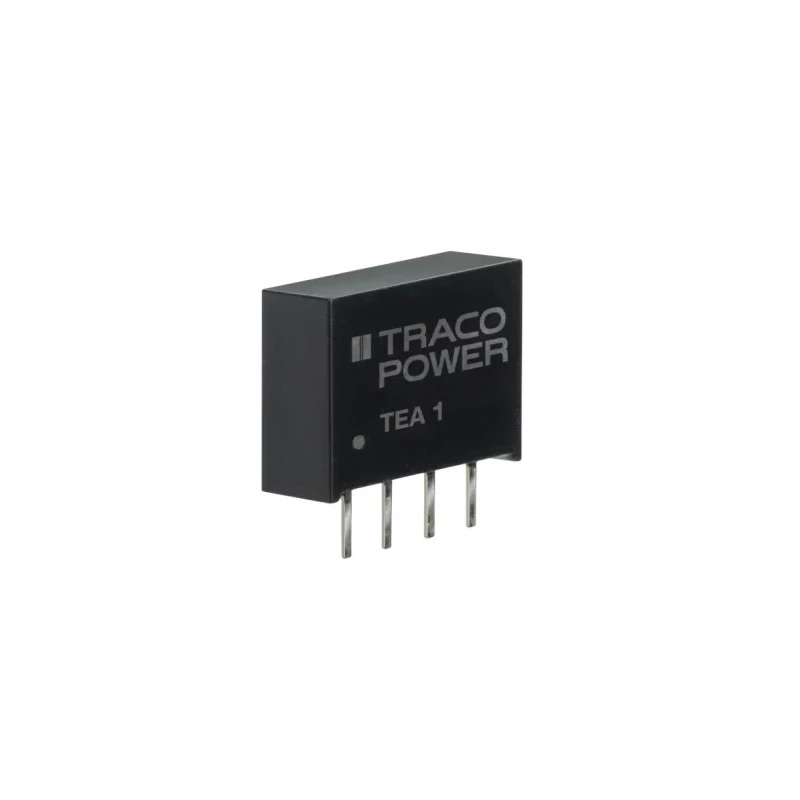

TRACOPOWER DC/DC Converter 5V DC Output, 200mA, PCB Mount, 4.5 - 5.5V Input, 1W, TEA 1-0505
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEA 1 DC/DC Converter, 5V dc/ 200 mA, 5 |
| Brand | TRACOPOWER |
| Efficiency | 0.78% |
| Length | 11.68mm |
| Model | TEA 1-0505 |
| Depth | 10.15mm |
| Gross Weight | 1.6g |
| Width | 6mm |
| Mount Type | PCB |
| Series | TEA 1 |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2000000h |
| Number of outputs | 1 |
| Ripple and Noise | 100mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 5.5V dc |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 4 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 200mA |
| Isolation Voltage | 1.5kV |
Key Features
- Compact DC/DC converter suitable for PCB installation.
- Provides 5V DC output at up to 200mA current.
- Wide input voltage range from 4.5V to 5.5V DC.
- Rated for 1W maximum output power.
- Single output design with 4-pin SIP package.
- Reliable operation over -40°C to 85°C temperature range.
- High isolation voltage of 1.5kV ensures safety.
- MTBF of 2,000,000 hours for long-lasting performance.
Product Description
TRACOPOWER TEA 1-0505 is a highly efficient DC/DC converter designed for industrial and electronics applications where reliable PCB-mounted voltage regulation is required. This converter offers a regulated 5V DC output with a maximum load current of 200mA, making it suitable for embedded systems, instrumentation, and power supply boards.
The TEA 1-0505 model operates with an input voltage range from 4.5V to 5.5V DC, delivering up to 1W of output power. Its single output enables straightforward circuit integration. The converter is packaged in a compact 4-pin SIP format, ideal for space-constrained designs. Key features include a high isolation voltage of 1.5kV, ensuring robust protection against voltage spikes and ensuring reliable performance in demanding environments.
Designed for extended temperature ranges, the converter operates between -40°C and +85°C, making it suitable for harsh industrial and laboratory settings. The MTBF rating of 2,000,000 hours evidences its durability for long-term use. Additional benefits include low ripple and noise of 100mV peak-to-peak, contributing to cleaner output and improved signal integrity in sensitive circuits.
The DC/DC converter's efficiency allows for minimal power losses, with dimensions of 11.68mm (L) x 6mm (W) x 10.15mm (D) and a weight of only 1.6g, ensuring it fits seamlessly into PCB layouts. The SIP package type supports easy mounting during board assembly. Its robust construction and technical reliability make it ideal for industrial automation, instrumentation PCBs, and control systems.
Applications include embedded electronics, industrial control systems, instrumentation, laboratory setups, and power aggregators. This model is part of the TEA 1 series known for high quality and cost effectiveness.
For more DC converter products from TRACOPOWER and to explore PCB power supply solutions, browse EnvMart's industrial electronics category.
Explore more products in our DC-DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TEA 1-0505 provides a maximum output current of 200mA.
It operates with an input voltage range from 4.5V to 5.5V DC.
The maximum output power of the TEA 1-0505 is 1W.
This model has dimensions of 11.68mm in length, 6mm in width, and 10.15mm in depth.
The TEA 1-0505 features a high isolation voltage of 1.5kV.
It operates within a temperature range of -40°C to +85°C.
The ripple and noise is specified at 100mV peak-to-peak.
This model is designed for PCB mounting with a 4-pin SIP package type.
The weight of this DC/DC converter is 1.6g.
It is suitable for embedded electronics, industrial control systems, instrumentation, and laboratory setups.
The TEA 1-0505 has a mean time between failures (MTBF) rating of 2,000,000 hours.
This model has an efficiency rating of 78%.
