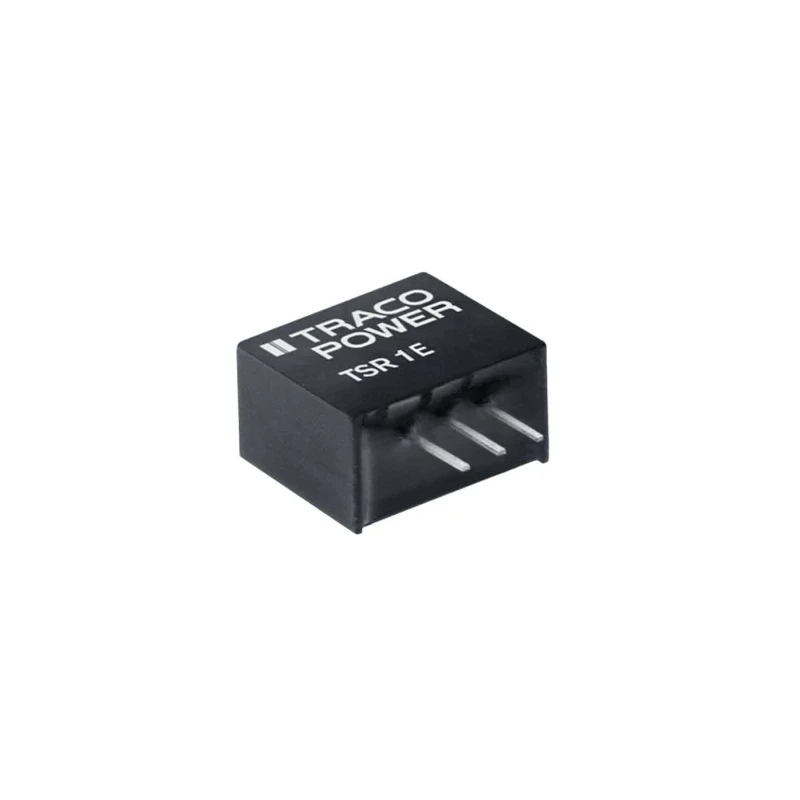

TRACOPOWER DC/DC Converter 3.3V Output, 6 - 36V Input, 1A, PCB Mount, SIP, -40°C to 85°C, 88% Efficiency TSR 1-2433E
Specifications
| Country of Origin | China |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 0.88% |
| Length | 11.6mm |
| Model | TSR 1-2433E |
| Depth | 10.2mm |
| Gross Weight | 1.6g |
| Width | 7.5mm |
| Mount Type | PCB |
| Series | TSR 1E |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 7000000h |
| Number of outputs | 1 |
| Ripple and Noise | 80mV Pk-Pk |
| Maximum Output Power | 3.3W |
| Maximum Input Voltage | 36V dc |
| Output Voltage | 3.3 V |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 6V dc |
| Output Voltage 1 | 3.3V dc |
| Output Current 1 | 1A |
Key Features
- Supports 3.3V DC regulated output with precise load and line regulation.
- Wide 6 - 36V DC input range allows versatile integration in electronic circuits.
- Reliable 1A output current ensures suitability for demanding applications.
- Compact SIP package (11.6 x 7.5 x 10.2 mm) ideal for space-constrained designs.
- Thermal management is enhanced via PCB mounting and SIP form factor.
- Operates efficiently across -40°C to 85°C, suitable for industrial and commercial environments.
- RoHS compliant and short-circuit protection for safe system integration.
- 88% efficiency reduces heat, supporting stable operation.
Product Description
The TRACOPOWER TSR 1-2433E DC/DC Converter is a high-efficiency, compact solution for converting input voltages between 6V and 36V DC to a stable 3.3V DC output. Designed specifically for PCB mounting, this converter is ideal for applications requiring consistent performance in space-limited electronic designs.
With a 1A output current capability, the TSR 1-2433E supports demanding loads while maintaining excellent line and load regulation. Its SIP package form factor (11.6mm length, 7.5mm width, 10.2mm depth) makes it suitable for integration within modern electronics, including medical devices, smart home systems, consumer electronics, and renewable energy interfaces.
The device offers robust short-circuit protection, safeguarding equipment and personnel against overloads. Its broad operating temperature range of -40°C to 85°C and an efficiency of 88% ensure reliable operation and reduced heat generation in industrial, laboratory, and commercial settings. The PCB mount type further streamlines assembly and mechanical stability.
Key features of the TSR 1-2433E include RoHS compliance, a ripple and noise level of 80mV peak-to-peak, and a mean time between failures (MTBF) of 7,000,000 hours, emphasizing durability and reliability. Its maximum output power is 3.3W, and it is supplied with one output channel. The converter is fabricated to meet stringent performance and environmental requirements, and its country of origin is China.
Typical applications encompass renewable energy integration, medical devices, smart home systems, and consumer electronics. Installation is straightforward: simply insert the pins through the PCB holes and solder for a secure and thermally efficient connection. The converter’s compact dimensions allow designers to optimize board layouts without sacrificing power performance.
Engineered for reliability, thermal management is optimized by the SIP package structure, helping reduce thermal resistance between the board and the converter. Strict RoHS compliance and integrated short-circuit protection offer further peace of mind for system designers and operators.
Explore more high-performance DC-DC Converters and solutions from TRACOPOWER on the EnvMart platform for industrial and commercial power conversion needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is 6V to 36V DC.
It provides a reliable output current of 1A.
This converter has an efficiency of 88%.
The SIP package has dimensions of 11.6mm in length, 7.5mm in width, and 10.2mm in depth.
It operates within a temperature range of -40°C to 85°C.
This model is designed for PCB mounting.
The maximum output power is 3.3W.
The ripple and noise level is 80mV peak-to-peak.
It includes short-circuit protection for safe system integration.
Yes, it is RoHS compliant.
Typical applications include renewable energy integration, medical devices, smart home systems, and consumer electronics.
The MTBF for the TSR 1-2433E is 7,000,000 hours.
