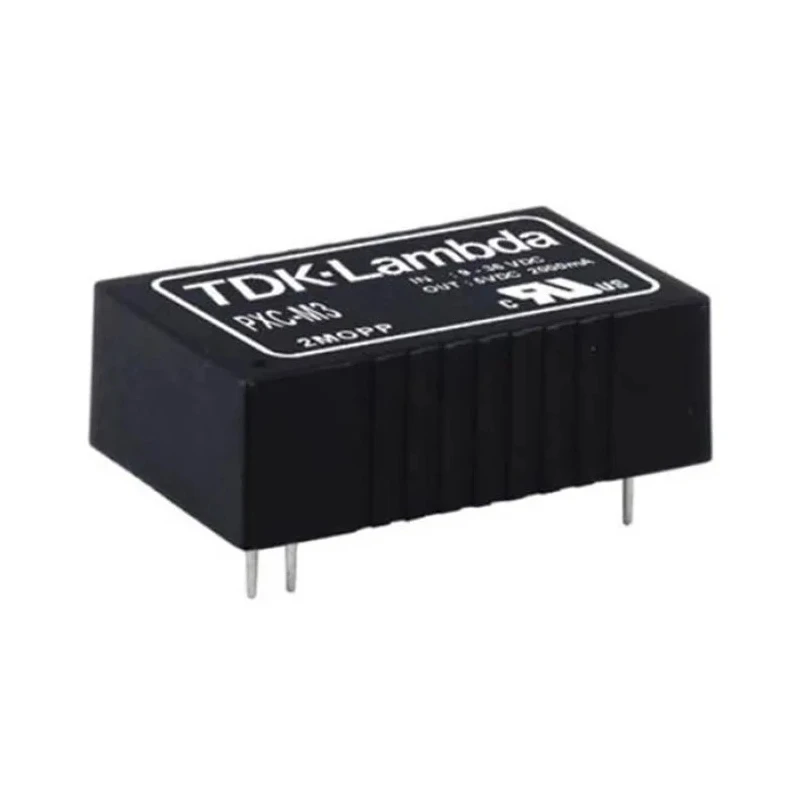

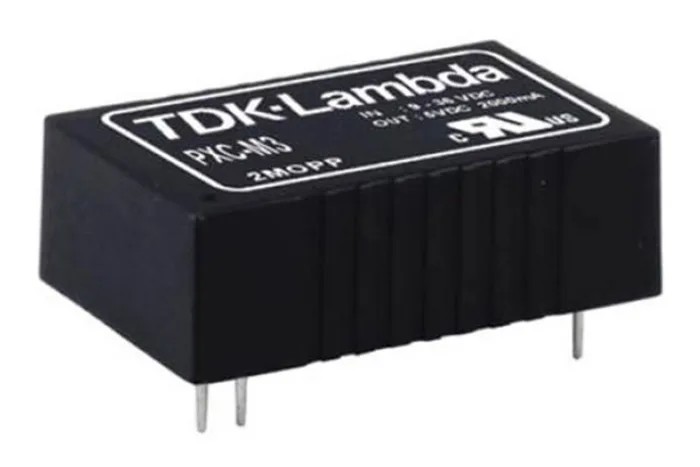

TDK-Lambda DC/DC Converter PXC-M06-24WD12, Dual 12V/-12V Output, 250mA, 36V/9V Input, 6W, PCB Mount, 105°C Max
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TDK-Lambda PXC-M06 DC/DC Converter, 12V dc/ 250 mA |
| Brand | TDK-Lambda |
| Efficiency | 0.885% |
| Length | 31.8mm |
| Model | PXC-M06-24WD12 |
| Depth | 10.2mm |
| Gross Weight | 14g |
| Width | 20.3mm |
| Mount Type | PCB |
| Series | PXC-M06 |
| Maximum Operating Temperature | 105°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 4718000h |
| Number of outputs | 2 |
| Ripple and Noise | 40mV |
| Maximum Output Power | 6W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V dc |
| Number of Pins | 7 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 250mA |
| Isolation Voltage | 5kV |
| Output Current 2 | -0.25A |
| Input Ratio | 4:1 |
| Output Voltage 2 | -12V dc |
| Input Ratio4 | 1 |
Key Features
- High reliability dual output DC/DC converter for electronic systems.
- Wide 9V - 36V DC input voltage range for application flexibility.
- Compact DIP-24 PCB mount design allows space-saving integration.
- Maximum output power of 6W supports multiple device requirements.
- 250mA output current per channel enables robust load capacity.
- 5kV isolation voltage ensures electrical safety and protection.
- Ripple and noise limited to 40mV for clean power supply.
- Operates at temperatures from -40°C to 105°C, suitable for industrial use.
Product Description
The TDK-Lambda PXC-M06-24WD12 is a high-performance DC/DC converter designed for professional electronic applications requiring reliable, regulated dual outputs. It delivers both +12V and -12V DC outputs with a maximum current of 250mA per channel, enabling sensitive electronics and communications systems to operate reliably.
With an input voltage range spanning 9V to 36V DC, this converter adapts to varied supply configurations across industrial, medical, and communications equipment. The compact DIP-24 package, engineered for PCB mounting, ensures ease of integration into densely populated control boards and devices.
Robust construction allows continuous operation in extreme conditions, with an operating temperature range from -40°C to +105°C. The 6W maximum output power suits numerous applications, from instrumentation and medical devices to telecom and signal processing equipment, where dual voltage rails are required for proper function and isolation.
Electrical safety and design flexibility are enhanced by a 5kV isolation voltage between input and output, protecting connected devices from surges and voltage fluctuations. Ripple and noise are strictly limited to 40mV, ensuring stable and clean DC power supply that supports optimal device performance.
Additional technical features include a 4:1 input ratio, 0.885% efficiency, MTBF of 4,718,000 hours for long-term reliability, and seven output pins for straightforward circuit integration. The unit measures 31.8mm in length, 20.3mm in width, and 10.2mm in depth, weighing just 14g for flexible placement within assemblies.
This DC/DC converter is tailored for use in industrial automation, laboratory instrumentation, medical electronics, telecommunications infrastructure, and other demanding commercial environments.
Explore more converters and advanced power solutions from the TDK-Lambda PXC-M06 series in EnvMart's DC-DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is 9V to 36V DC, allowing for application flexibility across various supply configurations.
This unit provides dual outputs of +12V and -12V, with a maximum output current of 250mA per channel.
The maximum output power is 6W, suitable for multiple device requirements in various applications.
The efficiency rating of this converter is 0.885%, indicating its performance in converting input power to output power.
It has an isolation voltage of 5kV, ensuring electrical safety and protection for connected devices.
The dimensions are 31.8mm in length, 20.3mm in width, and 10.2mm in depth, making it compact for PCB mounting.
This model operates within a temperature range of -40°C to 105°C, suitable for industrial use.
Ripple and noise are limited to 40mV, ensuring a stable and clean DC power supply.
The Mean Time Between Failures (MTBF) is 4,718,000 hours, indicating long-term reliability for demanding applications.
It is designed for PCB mounting, which allows for space-saving integration into control boards and devices.
This unit features seven output pins, facilitating straightforward circuit integration.
It is tailored for use in industrial automation, laboratory instrumentation, medical electronics, and telecommunications infrastructure.
