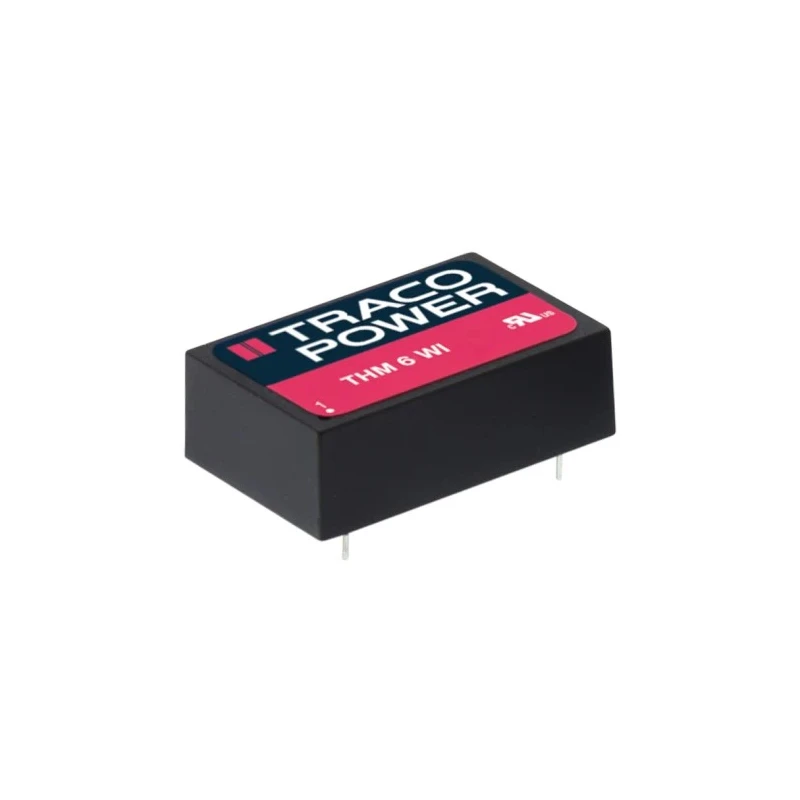

TRACOPOWER THM 6-2422WI DC/DC Converter 12V DC 250mA, 9 - 36V DC Input, 6W, PCB Mount, DIP-24, -40 to 90°C

The TRACOPOWER THM 6-2422WI is an advanced DC/DC converter designed to deliver precise and reliable 12V DC power output up to 250mA. Built for demanding environments, it supports an input voltage range from 9V to 36V DC, accommodating wide variations often encountered in transportation, industrial, and medical power supply systems. This flexibility ensures consistent operation even when the input source is unstable or fluctuating, making it a versatile power solution.

Delivering a maximum output power of 6W, the converter operates with high efficiency, minimizing both energy loss and heat generation. Its output is tightly regulated with low ripple and noise, protecting connected sensitive loads and electronics, and is supported by a strong maximum isolation voltage of 5kV DC between input and output, contributing to enhanced safety and EMC compliance in critical applications.

The THM 6-2422WI features a compact PCB-mountable DIP-24 plastic case for streamlined integration into circuit boards. Its mechanical dimensions - 31.8mm length, 20.3mm width, and 10.2mm depth - make it suitable for space-constrained designs, while its 14g weight ensures minimal impact on system portability or board stress. The unit is designed for a wide operating temperature range from -40°C up to 90°C, allowing use in applications subject to harsh or fluctuating ambient conditions, including field-deployed control, IGBT drivers, and medical devices requiring reliable performance at high altitudes (up to 5000m).

This DC/DC converter maintains a mean time between failures (MTBF) of 4,700,000 hours, reflecting durability and low maintenance requirements for long-term deployment. With two isolated outputs, the THM 6-2422WI supports flexible design topologies in signal isolation, dual rail systems, or redundant circuit architectures. Low leakage current, below 2μA, suits sensitive monitoring or patient-connected electronics.

With medical, control and measurement, and transportation applications in mind, the converter is ideal for integration in PCBs for industrial automation, instrumentation panels, or wherever reliable regulated DC power conversion is required from a DC source. The device does not claim certified safety standards (those listed on the page are not to be presented unless explicit certification images are provided), but it is constructed for quality industrial use.

The package includes one TRACOPOWER THM 6-2422WI DC/DC Converter unit. Refer to the datasheet for application guidance and recommended operating conditions. Explore more TRACOPOWER and DC-DC Converter solutions in EnvMart’s Electronics & Electricals category for optimized industrial and medical power systems.
