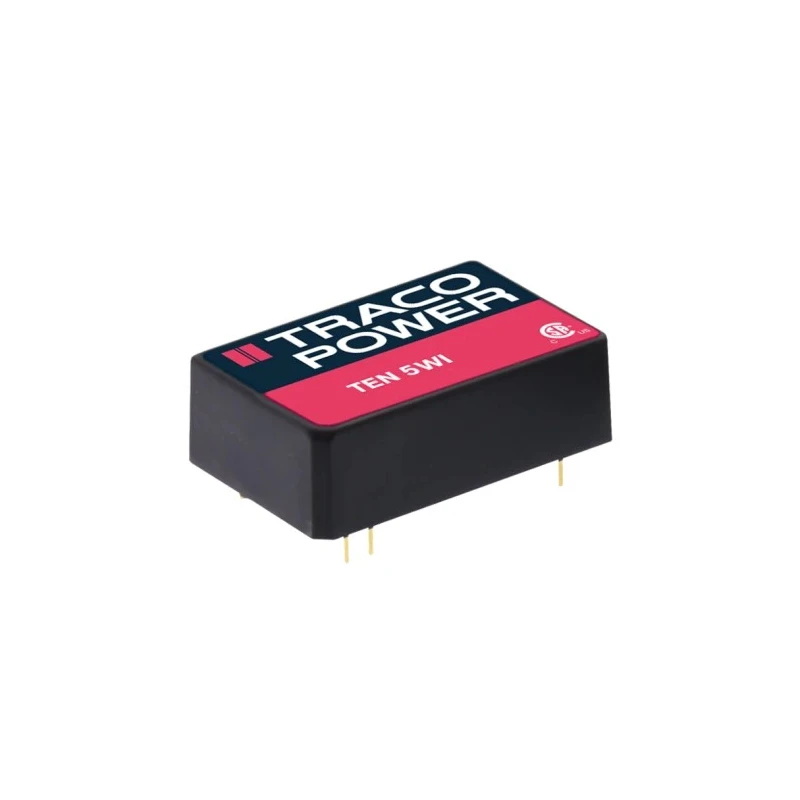

TRACOPOWER DC/DC Converter 15V DC, 400mA Output, 75V Max Input, 18V Min Input, 6W, Through Hole, 85°C Max, Model TEN 5-4813WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEN 5WI DC/DC Converter, 15V dc/ 400 mA |
| Brand | TRACOPOWER |
| Efficiency | 0.82% |
| Length | 20.3mm |
| Model | TEN 5-4813WI |
| Depth | 10.2mm |
| Gross Weight | 17g |
| Width | 31.8mm |
| Mount Type | Through Hole |
| Series | TEN 5WI |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 800000h |
| Number of outputs | 5 |
| Ripple and Noise | 80mV Pk-Pk |
| Maximum Output Power | 6W |
| Maximum Input Voltage | 75V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 8 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 400mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 4:1 |
| Input Ratio4 | 1 |
Key Features
- Provides 15V DC output at up to 400mA, ideal for powering sensitive electronics.
- Accepts wide input voltage range from 18V up to 75V DC for flexibility in industrial and communication applications.
- Maximum output power is 6W, suitable for distributed power architectures.
- Through hole mounting and DIP package facilitate integration into PCB assemblies.
- Features continuous short circuit protection and overvoltage protection for enhanced operational safety.
- Shielded metal case with insulated baseplate improves EMI resistance and durability.
- Operates from -40°C to 85°C for robust performance in harsh environments.
- Offers high efficiency (82%) and low ripple/noise at 80mV peak-to-peak.
Product Description
TRACOPOWER TEN 5-4813WI is a high-performance DC/DC Converter engineered for demanding industrial, communication and instrumentation environments requiring regulated 15V DC power. This converter is designed to work with a broad input voltage range of 18V to 75V DC, supporting flexible system architectures and battery-operated equipment.
With a 15V DC output and maximum current of 400mA, the TEN 5-4813WI safely delivers power to sensitive loads, providing continuous short circuit and overvoltage protection. The maximum output power of 6W enables its use in distributed power systems and compact electronic assemblies.
Mounting is through hole, using a DIP (Dual Inline Package) configuration with eight pins, making it ideal for rapid PCB assembly and mechanical stability. Its shielded metal case and insulated baseplate are designed to suppress EMI/RFI, enhance thermal performance and protect the internal circuitry.
Efficiency is rated at 82%, ensuring minimal energy loss and helping manage system thermal loads. Ripple and noise are limited to 80mV peak-to-peak, reducing interference in sensitive instrumentation.
The converter reliably operates across a wide temperature range from -40°C to 85°C, suitable for demanding and variable industrial environments. With an isolation voltage of 1.5kV DC between input and output, the TEN 5-4813WI helps maintain system safety and eliminate ground loops.
Standard features include a 4:1 input ratio, MTBF of 800,000 hours, a total of five outputs (for multiple supply needs), and a compact form factor of 20.3mm length, 31.8mm width, and 10.2mm depth. Weighing just 17 grams, it supports lightweight device engineering and high-density layouts.
Common applications include communication systems, battery-powered devices, distributed power architectures, and industrial electronics requiring wide voltage input and robust protection features.
Explore the full range of reliable TRACOPOWER DC-DC Converters in the Electronics & Electricals category for advanced industrial and instrumentation power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a 15V DC output with a maximum current of 400mA.
It accepts a wide input voltage range from 18V to 75V DC.
The maximum output power is 6W, making it suitable for various applications.
The dimensions are 20.3mm in length, 31.8mm in width, and 10.2mm in depth.
It features through hole mounting with a DIP (Dual Inline Package) configuration.
The efficiency of the TEN 5-4813WI is rated at 82%.
It operates reliably in a temperature range from -40°C to 85°C.
Yes, it includes continuous short circuit protection and overvoltage protection for enhanced safety.
The isolation voltage between input and output is 1.5kV DC.
This model has a total of five outputs, accommodating multiple supply needs.
The ripple and noise are limited to 80mV peak-to-peak, which helps reduce interference.
The MTBF is rated at 800,000 hours, indicating a long operational lifespan.
