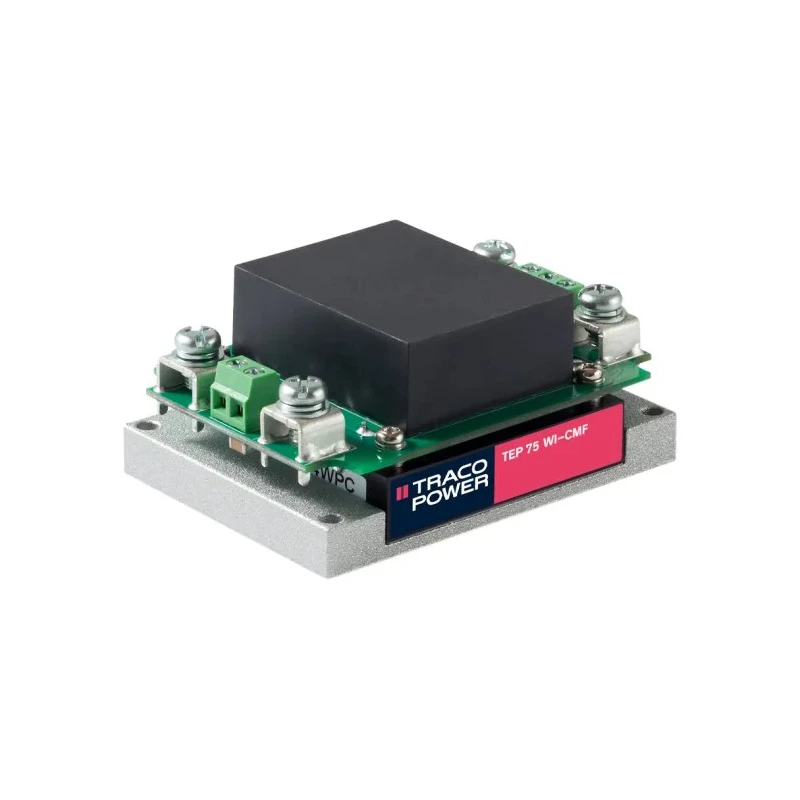

TRACOPOWER DC-DC Converter 24V 3.2A 160V/43V Input 75W Through Hole Wide Input Encapsulated TEP 75-7215WI-CMF

The TRACOPOWER TEP 75-7215WI-CMF is an industrial-grade DC-DC converter designed to supply reliable regulated 24V power to critical electronics where wide DC input and robust performance are required. Suited for railway, process control, and demanding embedded applications, this module accepts a broad input voltage range from 43V up to 160V DC, allowing operation from various DC sources found in industrial and transportation systems.

This model delivers a stable 24V DC output at up to 3.2A, providing 75W maximum output power. Its state-of-the-art encapsulated design with through-hole mounting ensures excellent vibration resistance and robust mechanical integration. The converter achieves high efficiency (up to 90 percent) and robust I/O isolation of 2.25kV to protect both downstream loads and upstream supply circuits.

Reliability is enhanced by a calculated MTBF of 336,000 hours and the module withstands harsh environments: it supports operating temperatures from -40°C to +75°C. Key features include integrated ripple and noise suppression (250mV pk-pk), 4:1 input range adaptation, an output voltage adjustment capability, and built-in protections against overloads and faults.

With a compact footprint of 85mm by 61mm and depth of just 40.5mm, as well as a lightweight 287g construction, the TEP 75-7215WI-CMF easily fits both new designs and retrofits. The module offers five outputs and is supplied with 5 pins for versatile interconnection options. The encapsulated package provides ease of soldering and enhanced protection from dust, moisture, and mechanical shocks.

TRACOPOWER has engineered this series to meet the stringent requirements of modern industrial control, railway, automation, network, and communications hardware, and wherever a wide input, robust DC-DC converter is required. The design accommodates DIN-rail adaptors and includes remote on/off control and optional power-good LED indication, supporting a seamless integration into smart power architectures.

Typical applications are within process automation, industrial computing, rail and transportation systems, machinery and equipment, telecommunications, and security electronics. Select the TEP 75-7215WI-CMF model when a compact, reliable solution for high-performance DC-DC conversion is required for demanding environments.

For more high-performance DC-DC Converters or to explore additional options from TRACOPOWER, browse the full EnvMart electronics and power conversion catalog.
