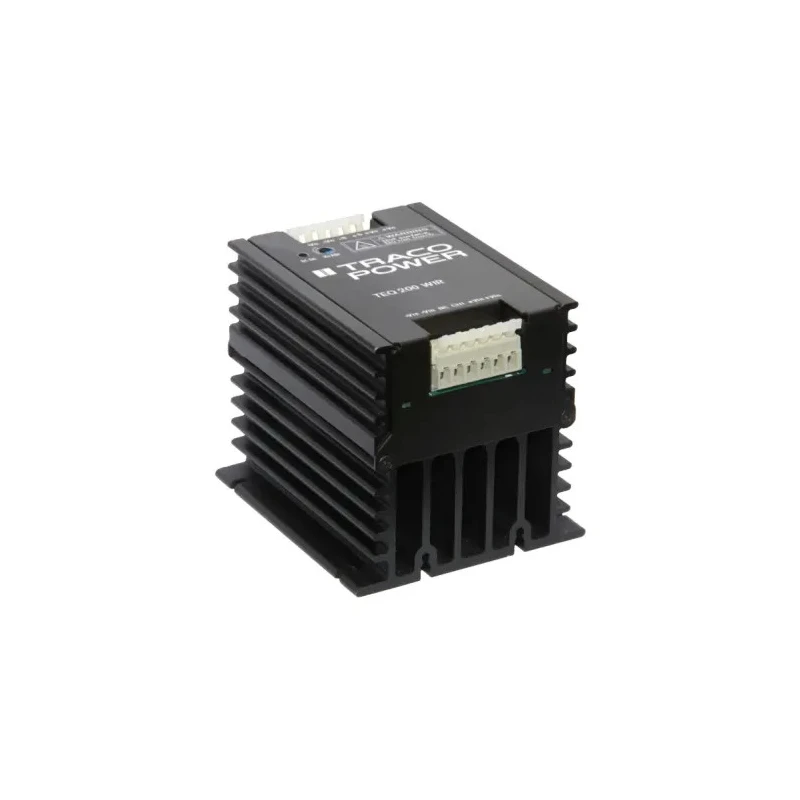

TRACOPOWER High Performance DC/DC Converter 22.4V Output, 75V Max Input, 7.5A, Wide Input Range, 200W TEQ 200-4816WIR

TRACOPOWER TEQ 200-4816WIR is a high-performance isolated DC/DC converter module designed for demanding industrial, railway, and transportation power systems. This converter provides a 22.4V output voltage with a wide input voltage range from 19V to 75V, making it suitable for applications requiring extensive input flexibility and reliable DC power conversion.

With a maximum output current of 7.5A and maximum power output of 200W, the TEQ 200-4816WIR supports multiple outputs, high efficiency at 90%, and delivers highly stable power with low ripple and noise (200mV Pk-Pk). Its isolation voltage of 2.25kV ensures safe and dependable operation in environments where electrical isolation is critical.

The module is housed in a rugged and sealed metal case, offering improved resistance against shock and vibration, which is ideal for both industrial and railway installations. The operating temperature ranges from -40°C to +90°C, with reliable convection cooling allowing for operation without derating up to +70°C. This ultra-wide 4:1 input voltage ratio supports flexible deployment across multiple platforms.

Key technical features include five output channels, excellent thermal management, an MTBF rating of 270,000 hours, and output voltage adjustment of -20% to +10%. The device measures 103.2mm in length, 88.9mm in width, and 87.6mm in depth, with a gross weight of 800g, making it a compact solution for high-density installations.

Efficient DC/DC conversion supporting wide 4:1 input voltage range. Delivers up to 7.5A output current and maximum power of 200W. Multi-output support and high isolation voltage ensure dependable operation. Built for reliable performance at extreme temperatures from -40°C to 90°C.

Enhanced vibration and shock resistance in sealed metal enclosure. Low output ripple and noise for sensitive industrial systems. MTBF rating provides confidence for long-term, mission-critical deployments. Flexible output voltage adjustment for tailored integration.

Applications include railway rolling stock electrical systems, industrial automation, instrumentation panels, and transportation equipment requiring stable DC output under challenging conditions. The TEQ 200-4816WIR is part of the TEQ 200 series, conforming to EN 50155 standards for railway approval, and is engineered for use in environments where performance and reliability are paramount.
