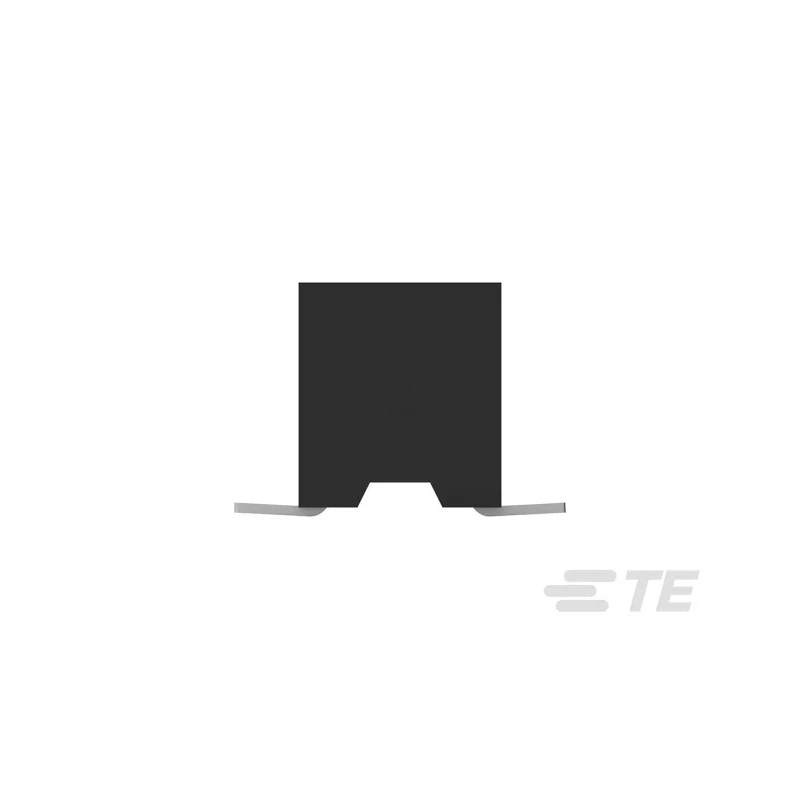

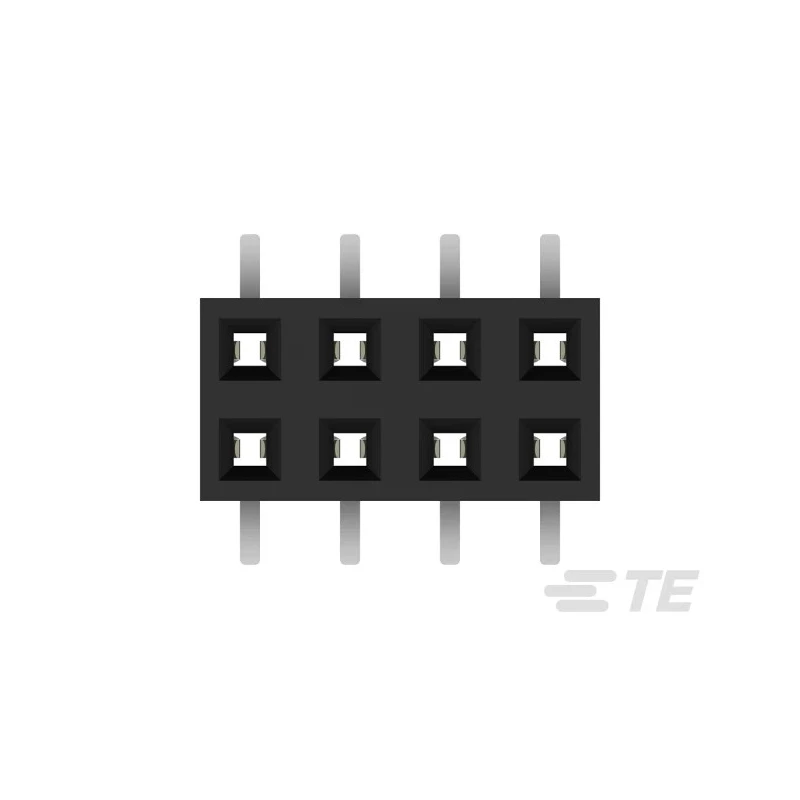

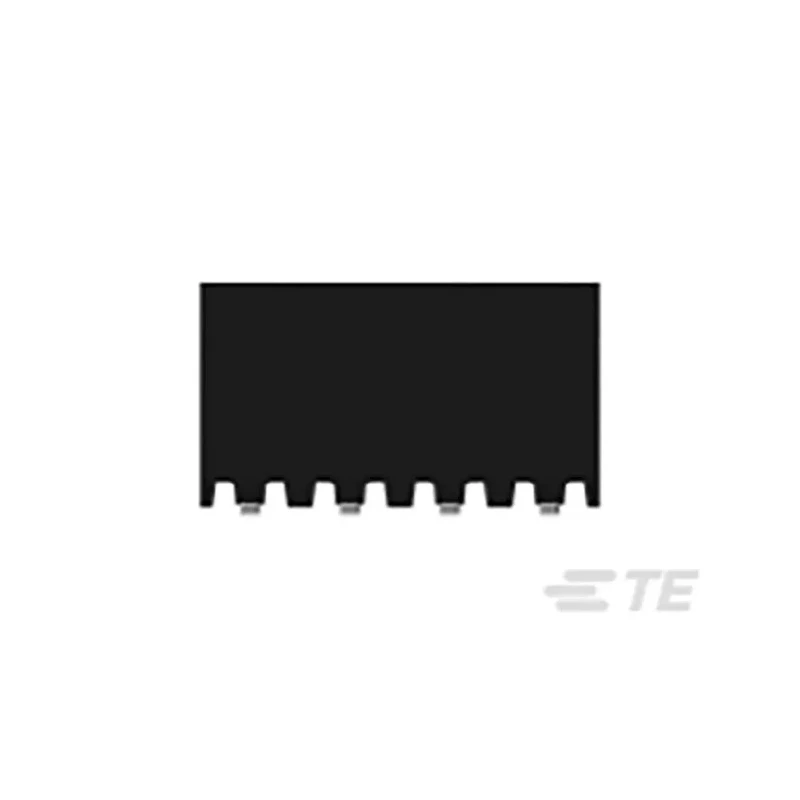

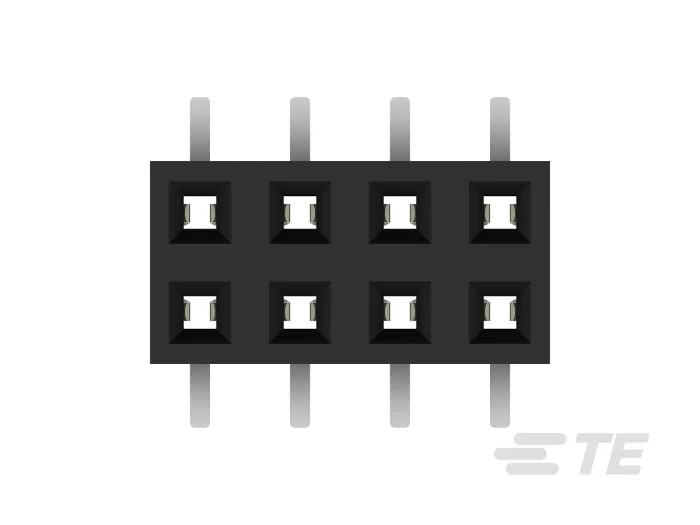

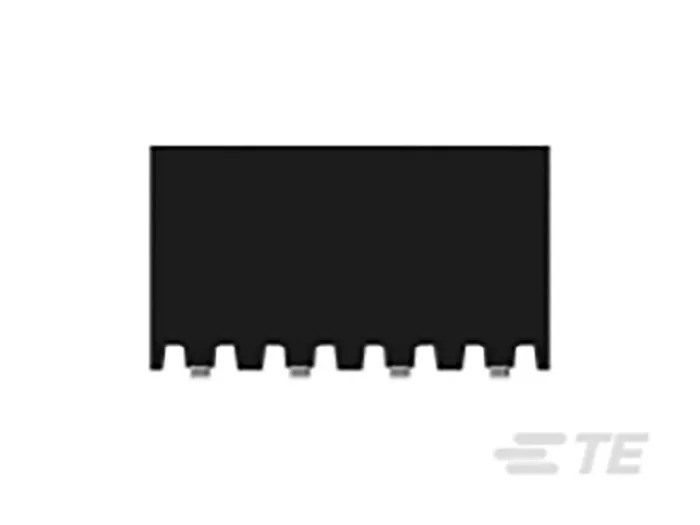

TE Connectivity AMPMODU Series PCB Socket 8-Contact, 2 Row, 2 mm Pitch, Surface Mount, Straight, Solder 2314846-8
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 650V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 12A |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | AMPMODU |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Receptacle |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Environmental | halogen free / low halogen |
| Pitch | 2mm |
| Contact Plating | Nickel Plated, Tin |
| Number of Contacts | 8 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Centerline | 2.00mm [0.079"] |
Key Features
- Features 8 contacts arranged in 2 rows, suitable for compact PCB layouts.
- 2 mm centerline pitch optimizes board space and allows higher density interconnection.
- Surface mount and straight orientation design simplifies automated assembly and enables robust PCB integration.
- Solder termination ensures secure and electrically stable connections.
- Wide operational range from -65°C to 125°C supports use in demanding environments.
- Rated for up to 12 A current and voltages up to 650 V for versatile industrial and instrumentation applications.
- Constructed from liquid crystal polymer housing and nickel/tin plated bronze contacts for durability and longevity.
- Dual beam receptacle and top/dual-entry assembly support flexible board-to-board configurations.
Product Description
The TE Connectivity AMPMODU Series PCB Socket, model 2314846-8, is a compact, high-reliability connector engineered for precision board-to-board interconnections. Its 8-contact dual-row configuration with a tight 2.00 mm centerline allows for significant space savings on printed circuit boards when compared to conventional 2.54 mm solutions.
This socket features a robust straight, surface-mount form factor, ensuring efficient and consistent alignment during high-throughput automated assembly processes. The solder terminals provide secure and lasting electrical and mechanical connections, reducing the risk of intermittent contact over the product’s operational life.
Constructed with a liquid crystal polymer housing, the connector offers suitable resistance to heat and chemicals encountered during typical reflow soldering cycles. The contacts are fabricated from bronze and finished with both nickel and tin plating, providing excellent current-carrying capacity (up to 12 A) and resistance to corrosion for prolonged service.
The AMPMODU socket is designed with dual-beam female contacts for reliable engagement, and can be used in both vertical and horizontal mount-ups as required by the system architecture. Dual-entry design simplifies the mating process with headers, while the reduced 2 mm pitch allows for high-density component placement and extended circuit functionality.
This socket operates reliably across a wide temperature range from -65°C to 125°C, making it suitable for industrial, instrumentation, automation, and control system applications. Its halogen-free, environmentally conscious design supports compliance with modern regulatory requirements.
The 2314846-8 is ideal for use in PLCs, servo drive controllers, industrial controls, instrumentation, building automation, material handling, and test equipment, wherever compact, durable, and electrically secure PCB Socket connections are essential.
For more PCB connector and wire-housing components, explore the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 12 A.
This socket is rated for voltages up to 650 V.
The contacts in this socket have a pitch of 2 mm.
The housing is made of liquid crystal polymer, while the contacts are bronze with nickel and tin plating.
It operates reliably across a temperature range from -65°C to 125°C.
This model features 8 contacts arranged in 2 rows.
It utilizes a solder termination type for secure connections.
Yes, the 2 mm pitch allows for high-density component placement, making it suitable for compact PCB layouts.
This socket supports a surface mount configuration.
The connector is halogen-free and compliant with low halogen regulations.
It belongs to a board-to-board connector system.
