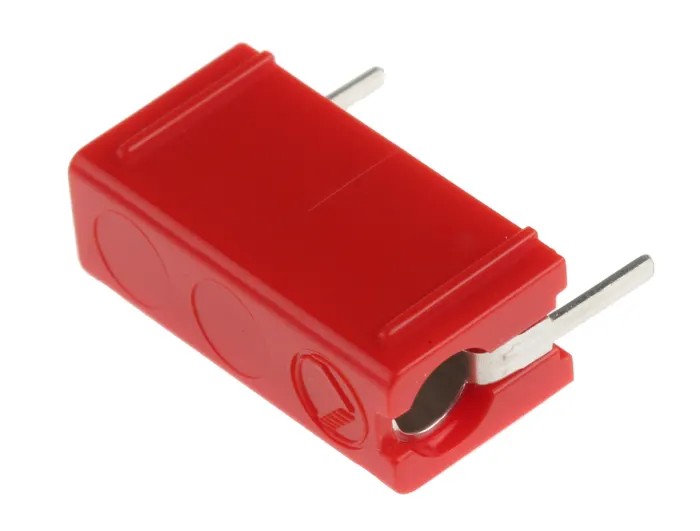

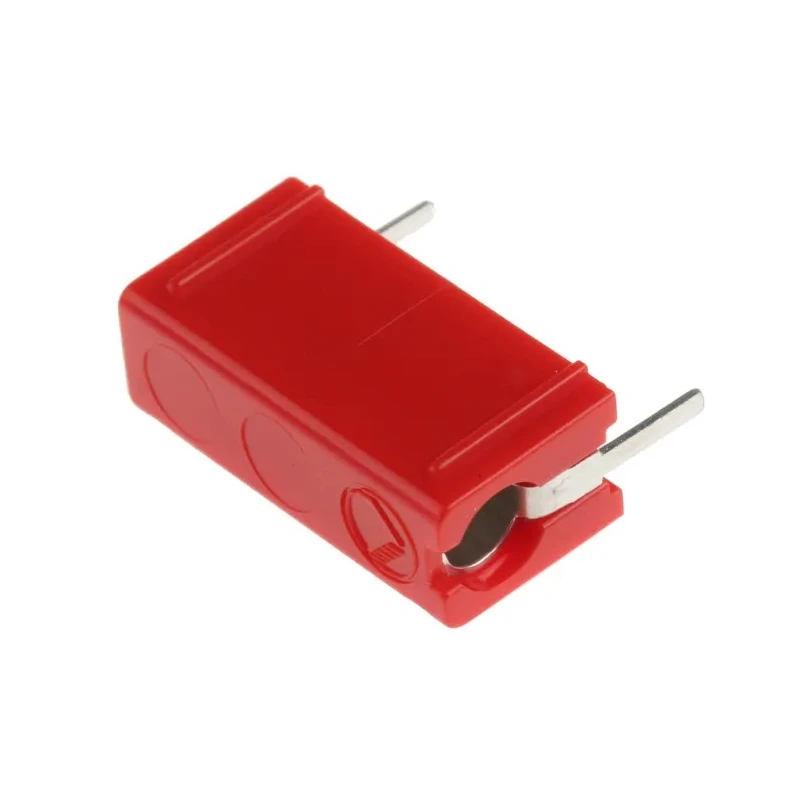

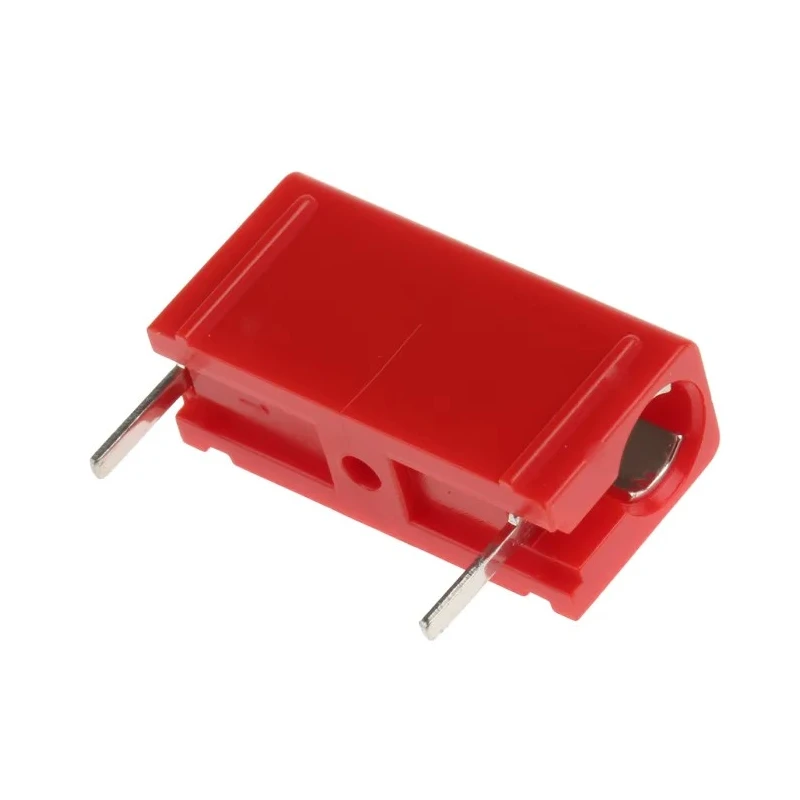

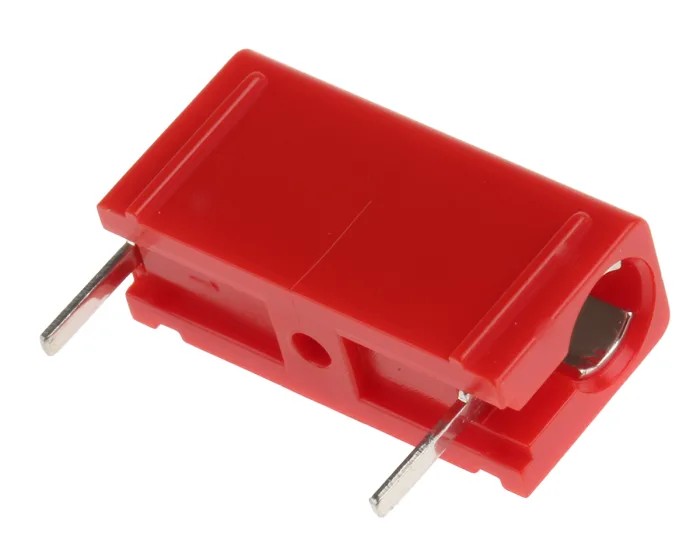

RS PRO Red Female Test Socket, 4 mm Solder, 60V DC 16A Tin-Plated Brass 973582101

The Hirschmann Test & Measurement 973582101 Red Female Test Socket is a high-quality, 4 mm diameter component designed for measuring and testing printed circuit boards during operation. It features a female socket configuration, making it well-suited for securely receiving banana plugs or similar test leads in various laboratory, manufacturing, electronics, and industrial settings.

This test socket is constructed with tin-plated brass contacts, which deliver excellent electrical conductivity and minimize corrosion over time. The insulation is made of durable polycarbonate, ensuring user safety and mechanical stability even with frequent use. Designed for solder termination, the socket provides a solid and long-lasting electrical connection to the PCB or other test devices. The 4 mm connector size is a common standard for test and measurement equipment, facilitating compatibility across a wide range of electronic instruments.

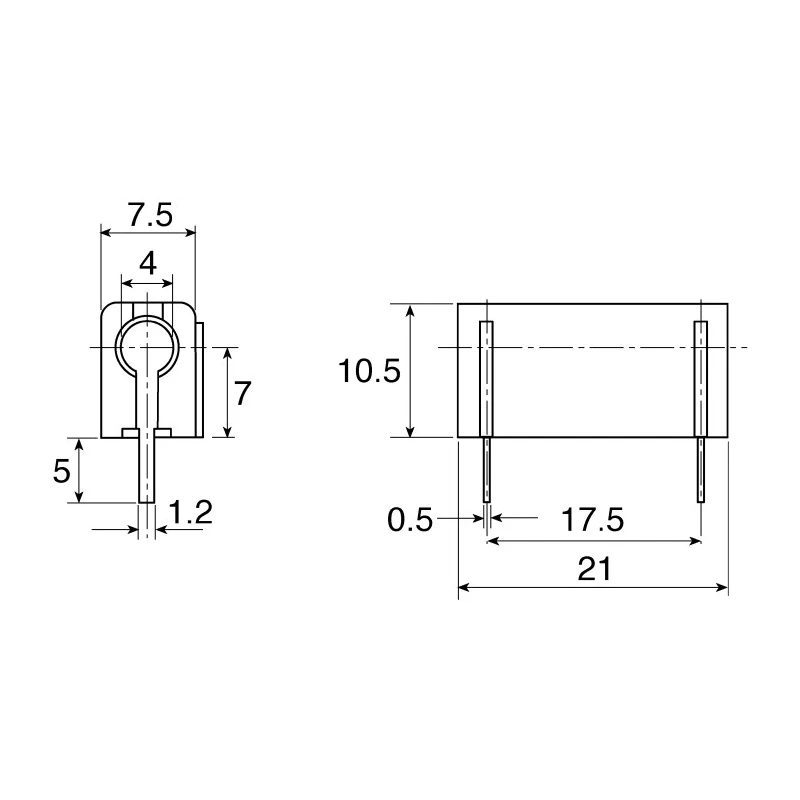

The 973582101 model supports a rated current of up to 16A and voltage up to 60V DC, making it suitable for both low- and medium-power measurement applications. Its spring contact design ensures a reliable connection and helps reduce contact resistance to maintain accurate signal transmission. With a compact length of only 21 mm, this test socket can be easily integrated into dense circuit layouts and is side-stackable to optimize space in multi-socket configurations. The red color coding increases visibility and aids in circuit identification, enhancing safety during setup and operation.

The socket's design includes shrouded center contacts for a higher degree of safety in interconnections, meeting the requirements of UL and CE standards, along with compliance to IEC1010, ANSI/ESD S20.20:2014, and BS EN 61340-5-1:2007. These certifications underline the product’s suitability for environments where safety and low electrostatic discharge risks are critical.

The Hirschmann Test & Measurement 973582101 finds application in electronic laboratories, service workshops, industrial testing stations, and educational settings for reliable and precise connections to PCBs and test equipment. Its robust design and thoughtful safety features make it ideal for repetitive measurement cycles and rigorous professional use.
