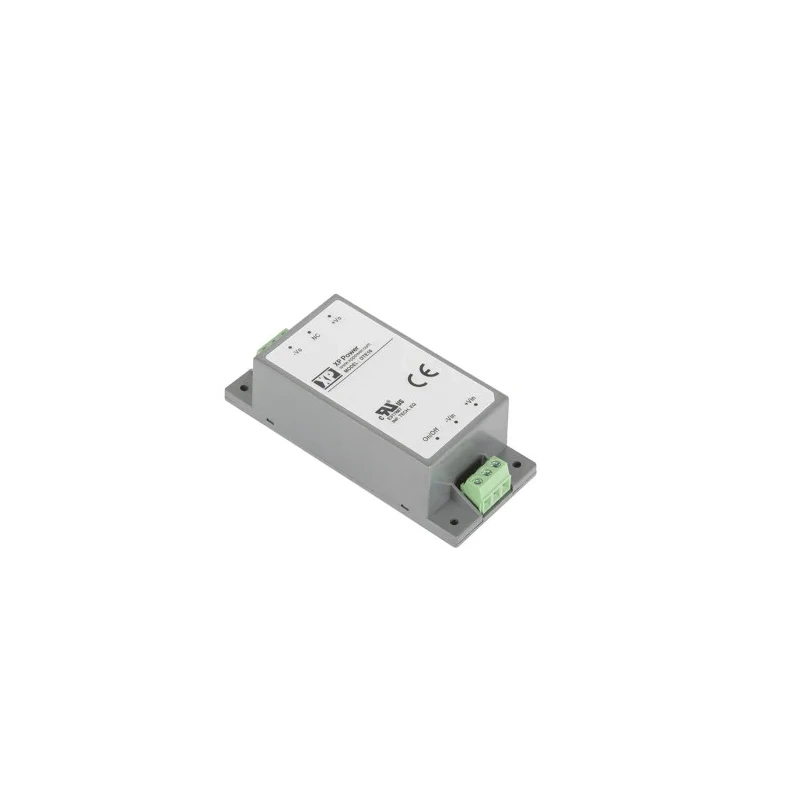

XP Power DC/DC Converter, 48V DC Output, 9 - 36V DC Input, 210mA, 10W, Chassis Mount, Encapsulated, 6-Pin, -40°C to 105°C DTE10
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power DTE10 DC/DC Converter, 48V dc/, 36V dc In |
| Brand | XP Power |
| Efficiency | 84% |
| Length | 79mm |
| Model | DTE10 |
| Depth | 22mm |
| Width | 34mm |
| Mount Type | Chassis |
| Series | DTE10 |
| Maximum Operating Temperature | 105°C |
| Package Type | Encapsulated |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Output Power | 10W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 6 |
| Output Voltage 1 | 48V dc |
| Output Current 1 | 210mA |
| Isolation Voltage | 3000V dc |
| Input Ratio | 1:6 |
| Input Ratio1 | 6 |
| Wide 4 | 1 input range |
Key Features
- Supports wide input voltage range of 9 - 36V DC for versatile usage.
- Outputs stable 48V DC at up to 210mA maximum output current.
- Encapsulated chassis mount design, ideal for rugged environments.
- Provides 3000V DC isolation for safety and high reliability in system integration.
- Operates in extreme temperatures from -40°C to 105°C, suitable for demanding applications.
- Maximum output power of 10W ensures compatibility with various device loads.
- High efficiency rating of 84 percent reduces energy waste and thermal buildup.
- Remote on/off capability allows improved control within automation and process equipment.
Product Description
The XP Power DTE1024S48 DC/DC Converter is a high-performance module engineered for delivering reliable and efficient DC power conversion in industrial, electronic, automation, and embedded systems. With a wide input voltage range from 9V to 36V DC, it supports installation in diverse environments and power architectures, including battery-powered and distributed DC rails.
This converter offers a regulated 48V DC output at a maximum current of 210mA and a power rating of 10W. The encapsulated package ensures durability and protects internal circuitry against dust, moisture, and vibration, making it ideal for rugged and challenging installations, such as robotics, instrumentation, and controls.
The chassis mount configuration with a 6-pin interface facilitates secure mechanical installation and straightforward electrical integration. The device provides isolation up to 3000V DC, critical for safe operation and minimizing system risk from electrical noise and faults. Its high efficiency of 84 percent not only delivers cost-effective power conversion but also minimizes thermal dissipation, supporting longer operational life and higher reliability.
With an operating temperature range from -40°C to 105°C, the XP Power DTE1024S48 maintains optimal performance under demanding thermal conditions. It features remote on/off capability, allowing for easy control within automated systems. A single output ensures simplicity of deployment where a dedicated regulated DC supply is needed.
The compact form factor (79mm long by 34mm wide and 22mm deep) enables installation in space-limited enclosures and cabinets. Typical applications include industrial automation, process control, instrumentation, embedded systems, telecommunications equipment, and anywhere a robust DC/DC conversion is required.
This converter is fully encapsulated for ruggedization, offers a 6-pin mounting interface, and is manufactured with quality assurance for demanding environments. The unit is supplied with all necessary compliance for professional use cases, such as manufacturing, electronics assembly, transportation, and laboratory setups.
Browse more DC/DC converters and XP Power products in the EnvMart catalog to find matching solutions for your project requirements.
Explore more products in our DC-DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a wide input voltage range of 9V to 36V DC.
The maximum output power is 10W.
It provides a regulated output voltage of 48V DC.
The maximum output current is 210mA.
It has dimensions of 79mm in length, 34mm in width, and 22mm in depth.
It features a chassis mount design.
It provides an isolation voltage of 3000V DC.
The efficiency rating is 84%.
It operates within a temperature range of -40°C to 105°C.
This converter has a single output channel.
It is suitable for applications in industrial automation, process control, instrumentation, and embedded systems.
It is encapsulated, providing protection against dust, moisture, and vibration.
