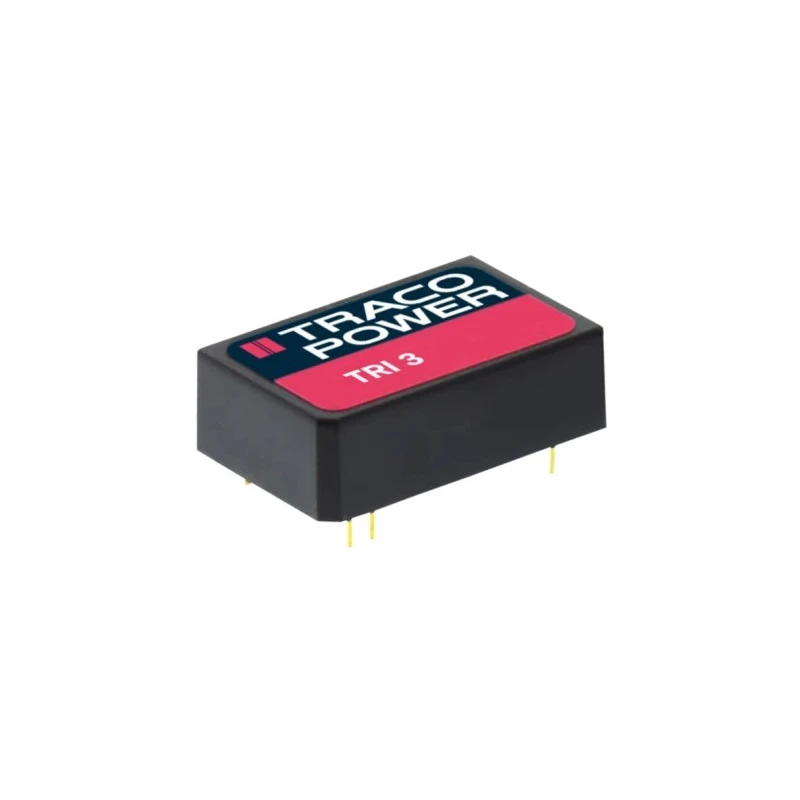

TRACOPOWER DC/DC Converter 5V DC 700mA 75V DC Input 36V Min Input 3.5W Through Hole TRI 3-4811
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TRI 3 DC/DC Converter, 5V dc/ 700 mA, 7 |
| Brand | TRACOPOWER |
| Efficiency | 82% |
| Length | 31.8mm |
| Model | TRI 3-4811 |
| Depth | 12mm |
| Width | 20.3mm |
| Mount Type | Through Hole |
| Series | TRI 3 |
| Maximum Operating Temperature | 90°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 5815000h |
| Number of outputs | 1 |
| Maximum Output Power | 3.5W |
| Maximum Input Voltage | 75V dc |
| Minimum Input Voltage | 36V |
| Number of Pins | 7 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 700mA |
| Isolation Voltage | 7kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- High-efficiency DC/DC converter suitable for industrial and electronic applications.
- Supports wide input range from 36V to 75V DC for flexible integration.
- Delivers stable 5V DC output at 700mA with reinforced 5kV isolation.
- Compact DIP package with through hole mounting ensures easy PCB integration.
- Designed for high reliability with MTBF of 5815000 hours and operating temperature from -40°C to 90°C.
- Includes overload, overvoltage, and short circuit protection features.
- Ultra-high isolation up to 9000V DC (peak, 1s) for robust safety and signal integrity.
- Efficiency rated at 82%, supporting low power consumption and thermal performance.
Product Description
The TRACOPOWER TRI 3-4811 DC/DC Converter is an advanced isolated power supply solution engineered for industrial automation, electronics, and instrumentation applications requiring reliable voltage conversion. Designed for 5V DC output and up to 700mA output current, it accepts a wide input voltage range from 36V to 75V DC, supporting flexible system integration where multiple input voltages may be present.
This converter features a reinforced isolation of 5000VAC and ultra-high peak isolation rating of 9000VDC for one second, ensuring robust protection against high voltages, electrical noise, and transient events. The device is capable of delivering up to 3.5W output power, in a compact DIP package with convenient through hole mounting, easing PCB assembly and adaptation into existing circuit boards.
The TRI 3-4811 converter demonstrates reliable performance in harsh environments, supporting continuous operation at temperatures ranging from -40°C to 90°C without derating. With an MTBF value of 5,815,000 hours, it ensures minimal maintenance and downtime for professionally engineered power systems. Efficiency up to 82% reduces power loss, and low no-load power consumption (96 - 192mW) enhances energy savings.
Protection mechanisms against overload, overvoltage, and short circuit are integrated, safeguarding sensitive electronic circuits. Additional design features such as common mode transient immunity (dv/dt) of 15kV/μs support signal integrity in demanding industrial settings, while a 2:1 input ratio allows the TRI 3-4811 to handle variable input conditions reliably.
The converter’s seven-pin DIP format, compact form factor (31.8mm x 20.3mm x 12mm), and universal compatibility make it ideal for applications including industrial controls, remote measurement and telemetry, laboratory instrumentation, and any scenario where precise isolated DC power is vital.
Industries benefiting from this solution include manufacturing automation, industrial equipment, telecom, instrumentation, railway, energy management, and laboratory setups. The TRACOPOWER legacy ensures quality and reliability, with a three-year product warranty supporting critical infrastructure.
Explore more DC-DC Converters and related industrial electronics in EnvMart’s robust category for advanced power supplies and converters.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TRACOPOWER TRI 3-4811 accepts a wide input voltage range from 36V to 75V DC.
This model delivers a maximum output power of 3.5W.
It provides an output current of 700mA at 5V DC.
The dimensions are 31.8mm in length, 20.3mm in width, and 12mm in depth.
This unit features a through hole mounting type, suitable for PCB integration.
The efficiency of this model is rated at 82%.
It has a reinforced isolation voltage of 5000VAC and a peak isolation rating of 9000VDC for one second.
The operating temperature range is from -40°C to 90°C.
It includes overload, overvoltage, and short circuit protection features.
This model has one output.
The MTBF for the TRI 3-4811 is 5,815,000 hours.
It is suitable for applications in industrial automation, telecommunications, instrumentation, and energy management.
