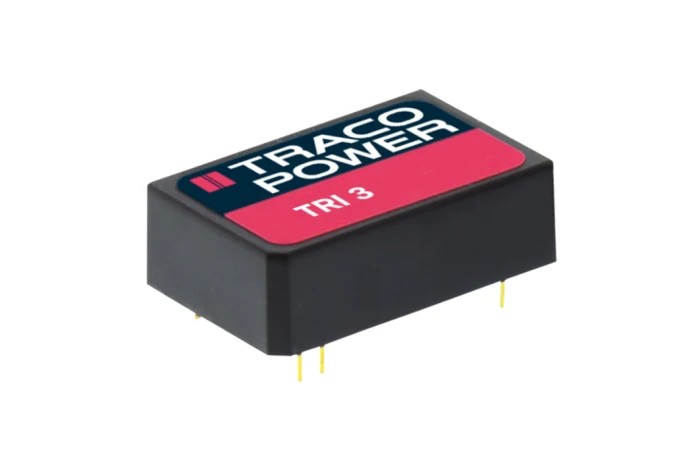

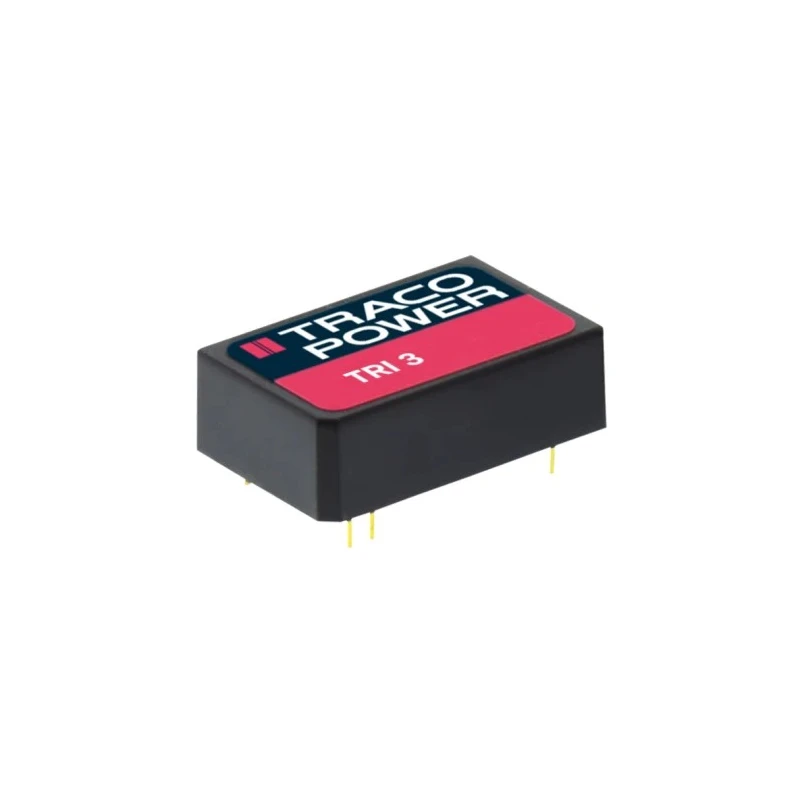

TRACOPOWER DC/DC Converter, 5V DC Output, 700 mA, 36V DC Max Input, 18V Min Input, 3.5 W, Through Hole, TRI 3-2411
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TRI 3 DC/DC Converter, 5V dc/ 700 mA, 3 |
| Brand | TRACOPOWER |
| Efficiency | 82% |
| Length | 31.8mm |
| Model | TRI 3-2411 |
| Depth | 12mm |
| Width | 20.3mm |
| Mount Type | Through Hole |
| Series | TRI 3 |
| Maximum Operating Temperature | 90°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 5815000h |
| Number of outputs | 1 |
| Maximum Output Power | 3.5W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 7 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 700mA |
| Isolation Voltage | 7kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- DC/DC converter with 5V DC output at 700 mA.
- Accepts input voltage range from 18V to 36V DC.
- Maximum output power of 3.5 W for reliable performance.
- Through hole mounting design suitable for PCB integration.
- Isolation voltage rated at 7000V DC for enhanced safety.
- High efficiency up to 82 percent for reduced energy loss.
- Operating temperature range from -40°C to 90°C without derating.
- Compact DIP package measuring 31.8mm x 20.3mm x 12mm.
Product Description
The TRACOPOWER TRI 3-2411 is a compact DC/DC converter engineered for demanding electronic and industrial applications requiring stable power conversion. This unit delivers a regulated 5V DC output with a maximum current of 700 mA, accepting input voltages from 18V to 36V DC. The converter supports up to 3.5 W output power, making it ideal for low-power circuitry, embedded systems, and device-level PCB integration.
Its through hole mount type simplifies assembly and offers robust connectivity, and the converter is housed in a DIP package with dimensions of 31.8mm length, 20.3mm width, and 12mm depth. Operational reliability is ensured over a wide ambient temperature span, from -40°C up to 90°C without derating, making it suitable for environments with fluctuating thermal conditions.
With an isolation voltage rated at 7000V DC and reinforced I/O-isolation up to 5000 VAC, the TRI 3-2411 prioritizes operational safety and separation between input and output circuitry. Ultra-high isolation peak voltages up to 9000 VDC (for 1s) and common mode transient immunity of 15 kV/μs further enhance protection against electrical surges and faults.
Its high efficiency of up to 82% ensures minimal energy consumption and heat production. Features such as short circuit, overload, and overvoltage protection are integrated to safeguard sensitive electronics and prolong the service life of the system. The converter also boasts a low no-load power consumption, supporting eco-friendly operation.
Typical uses include instrumentation, remote sensors, telecommunications, industrial control systems, medical electronics, and environments where space-saving and high isolation are required. The TRI 3-2411 meets rigorous standards for reliability, as evidenced by its MTBF rating exceeding 5,815,000 hours.
Explore the complete range of DC/DC converters by TRACOPOWER in the EnvMart Electronics & Electricals category for robust and reliable power solutions.
Explore more products in our DC-DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 5V DC with a maximum output current of 700 mA.
It accepts input voltages ranging from 18V to 36V DC.
The maximum output power of this unit is 3.5 W.
The converter has a compact DIP package measuring 31.8mm in length, 20.3mm in width, and 12mm in depth.
It features a high efficiency of up to 82%, which helps reduce energy loss.
The isolation voltage is rated at 7000V DC, providing enhanced safety for the device.
It operates reliably within a temperature range of -40°C to 90°C without derating.
The TRI 3-2411 has a single output.
It is designed for through hole mounting, making it suitable for PCB integration.
It includes short circuit, overload, and overvoltage protection to safeguard sensitive electronics.
The mean time between failures (MTBF) rating exceeds 5,815,000 hours, indicating high reliability.
Typical uses include instrumentation, remote sensors, telecommunications, and industrial control systems.
