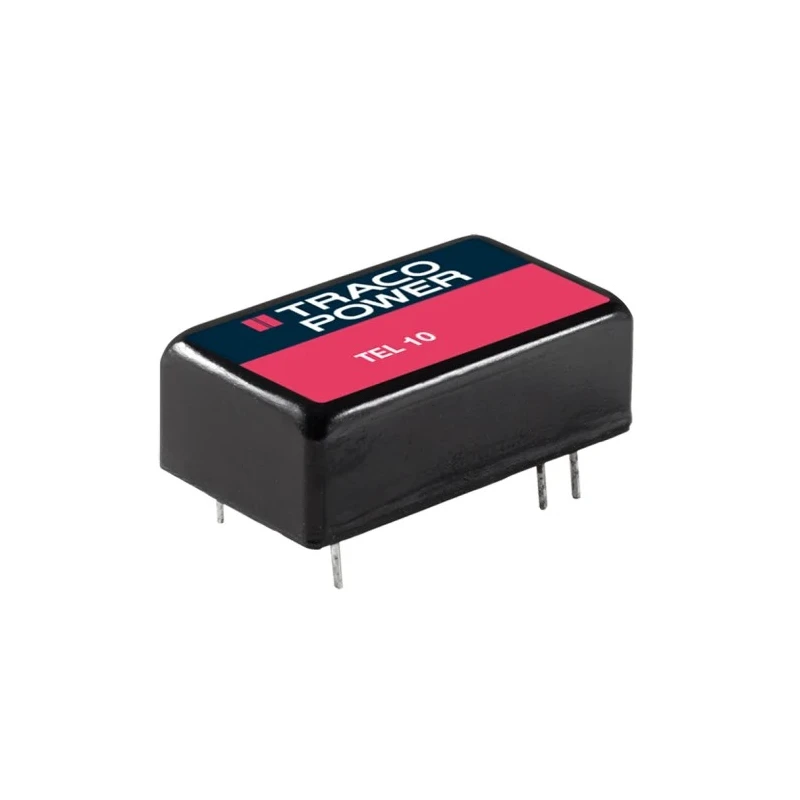

TRACOPOWER TEL 10-2412 DC/DC Converter 12V DC Output, 833 mA, 18 - 36V DC Input, 10W, PCB Mount, DIP-16, 87% Efficiency
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 87% |
| Length | 23.8mm |
| Model | TEL 10-2412 |
| Depth | 8mm |
| Width | 13.7mm |
| Mount Type | PCB |
| Series | TEL 10 |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP-16 |
| Minimum Operating Temperature | -40°C |
| MTBF | 1000000h |
| Number of outputs | 1 |
| Compliance | IEC/EN 62368-1 |
| Maximum Output Power | 10W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 833mA |
| Isolation Voltage | 1kV dc |
| Better World Claim | Concentrated or Compact Solution |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Offers a stable 12V DC output voltage with a maximum output current of 833 mA.
- Supports input voltage range from 18V DC to 36V DC for versatile use.
- High efficiency of up to 87% optimises energy consumption.
- Compact DIP-16 PCB-mount package saves board space and simplifies integration.
- Operates reliably in temperatures from -40°C to 85°C for robust industrial and electronic applications.
- Isolation voltage of 1 kV DC ensures enhanced safety for sensitive electronics.
- Integrated input filter supports compliance with emission standards.
- Suitable for power conversion in instrumentation, IT equipment and automation systems.
Product Description
The TRACOPOWER TEL 10-2412 is a high-performance DC/DC converter featuring a compact DIP-16 form factor to deliver efficient power conversion in electronic and industrial applications. This unit outputs 12V DC at up to 833 mA, with an input voltage range of 18 - 36V DC, making it versatile for a variety of powered devices.
Built for demanding environments, the TEL 10-2412 achieves 87% conversion efficiency and is capable of operating reliably in temperatures ranging from -40°C to 85°C. Its 10W output power rating addresses low-power requirements, while the isolated design allows safe integration into systems requiring strong electrical isolation. The product incorporates an integrated input filter to comply with emission standards, and meets IEC/EN 62368-1 for safety.
Key applications include instrumentation circuits, IT and automation equipment, and compact PCB-based projects, especially where space is at a premium. The DIP-16 package simplifies mounting on standard PCBs, with overall dimensions of 23.8 mm (L), 13.7 mm (W) and 8 mm (D). The module supports single-output operation with tight load regulation (0.01) for consistent voltage delivery across varying loads.
Stable 12V DC output with 833 mA current capability and 10W maximum power output. Wide input voltage range (18 - 36V DC) for flexibility in power source selection. Class-leading conversion efficiency (87%) reduces thermal dissipation and energy waste.
PCB mountable DIP-16 package fits limited-space designs and enables secure installation. Temperature operational range from -40°C to +85°C for reliable performance in harsh environments. Electrical isolation voltage of 1 kV DC protects sensitive electronic subsystems.
Integrated input filter ensures compliance with emission standards. Suitable for instrumentation, automation, IT equipment, and industrial electronics.
This converter is ideal for engineers and OEMs seeking a compact, reliable, and highly efficient DC/DC power supply for their projects. To browse more DC converter solutions or discover other TRACOPOWER products, explore the DC-DC Converter category or the TRACOPOWER brand catalog at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 12V DC with a maximum output current of 833 mA.
It supports an input voltage range from 18V DC to 36V DC, allowing for flexibility in power source selection.
The converter achieves an efficiency of up to 87%, optimizing energy consumption and reducing thermal dissipation.
The overall dimensions of the DIP-16 package are 23.8 mm in length, 13.7 mm in width, and 8 mm in depth.
It operates reliably in temperatures ranging from -40°C to 85°C, making it suitable for harsh environments.
The isolation voltage is 1 kV DC, ensuring enhanced safety for sensitive electronic components.
This model is designed for PCB mounting, simplifying integration into various applications.
It complies with IEC/EN 62368-1, ensuring safety and performance standards are met.
It is suitable for use in instrumentation circuits, IT equipment, and automation systems.
This converter has a single output, providing consistent voltage delivery across varying loads.
The TEL 10-2412 has a mean time between failures (MTBF) of 1,000,000 hours, indicating reliability in operation.
The maximum output power of the TEL 10-2412 is 10W, addressing low-power requirements effectively.
